Source: ORD 9 SNL G-503, 1949 release, Ford and Willys, ¼-ton 4×4. Marks and legends of the original catalog are preserved. The catalog also shows different versions; check the year and installed assembly before selecting a part. For CJ models, use their separate catalogs.

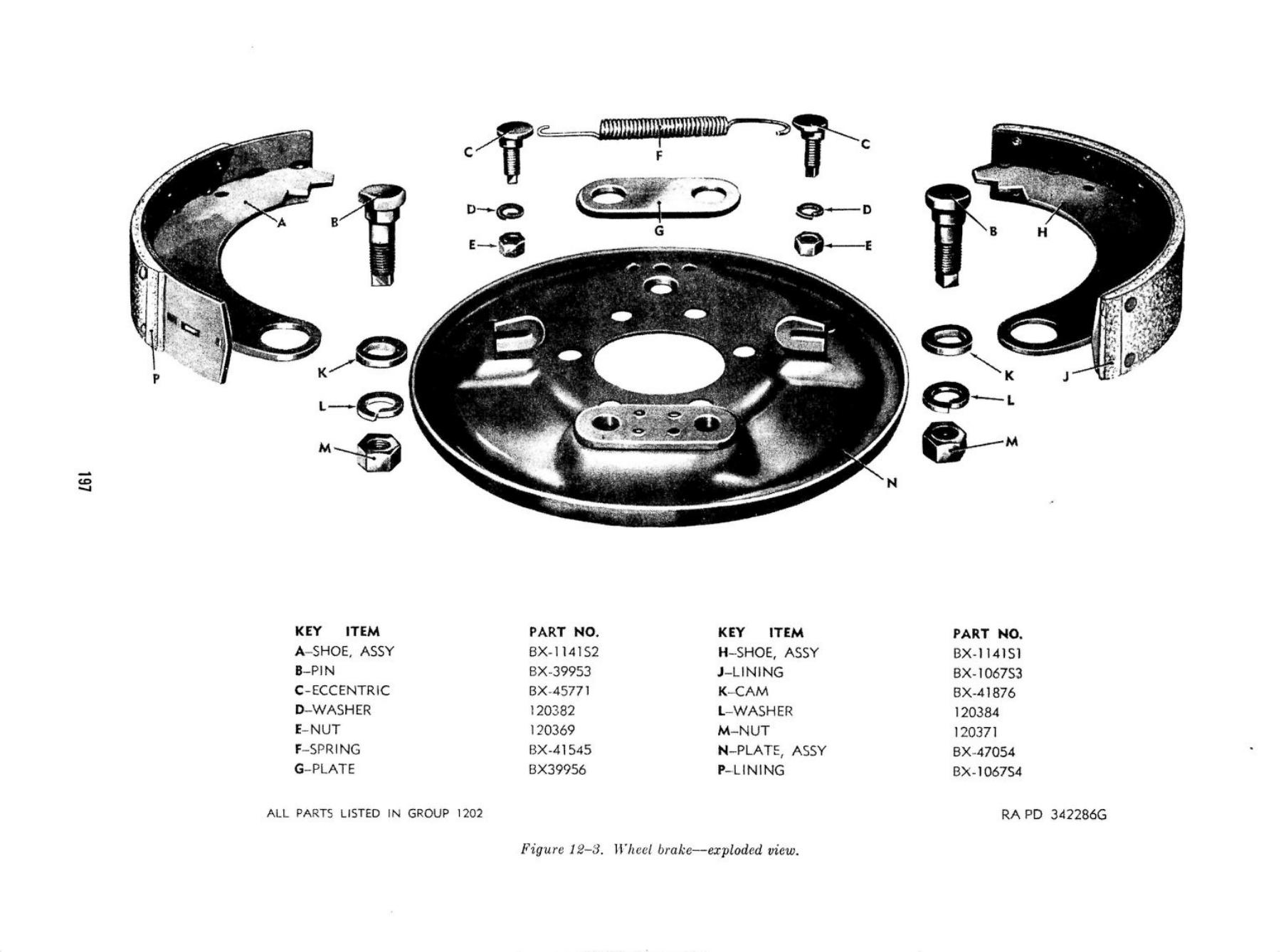

Wheel brake
MB · related parts
Find the part in the MB catalog
The number opens the correct field in the Spare Parts List. The position label is overwritten where it is reliably legible; "assembly" means the whole assembly or part without a separate letter designation. Name substitutions and differences are explained with the section.
| Pos. | Part / name in existing list | Designation from drawing / source | MB part number |
|---|---|---|---|
| B | Brake Anchor PinWheel brake | BX-39953Source · PDF 210 · Drawing ↑ | 637899 ↗brake system · MB |
| C | Brake Shoe EccentricWheel brake | BX-45771Source · PDF 209 · Drawing ↑ | A754 ↗brake system · MB |
| K | Brake Anchor Pin CamWheel brake | BX-41876Source · PDF 209 · Drawing ↑ | 637900 ↗brake system · MB |
| F | Brake Shoe Return Spring Cylinder EndWheel brake | BX-41545Source · PDF 210 · Drawing ↑ | 637905 ↗brake system · MB |
| — | Front Brake Cylinder BootService brake cylinderSource difference: ORD 9 lists the rear cylinder sleeve here, and the existing chart lists the front. Check dimensions and performance. | LO-FC5994Source · PDF 214 · Drawing ↑ | 637546 ↗brake system · MB |
| B | Front Brake Cylinder PistonService brake cylinder | LO-FC5997Source · PDF 214 · Drawing ↑ | 637577 ↗brake system · MB |
| F | Front Brake Cylinder CupService brake cylinder | LO-FC1499Source · PDF 214 · Drawing ↑ | 637579 ↗brake system · MB |
| N | Emergency Brake Drumparking brake — external type | SP-20B62Source · PDF 204 · Drawing ↑ | A1002 ↗brake system · MB |
| F | Brake Shoe EccentricBrake Line Distribution — Continued | BX-45771Source · PDF 209 · Drawing ↑ | A754 ↗brake system · MB |
| G | Front parking brake cableBrake Line Distribution — ContinuedFixed number swapping in earlier MB table. The original ORD confirms the number and description; the previous entry remains listed in the catalog.View details · PDF 201 | WO-A1241Source · PDF 202 · Drawing ↑ | A1241 ↗ |
| K | Parking brake handle with catchBrake Line Distribution — ContinuedFixed number swapping in earlier MB table. The original ORD confirms the number and description; the previous entry remains listed in the catalog.View details · PDF 201 | WO-A1242Source · PDF 202 · Drawing ↑ | A1242 ↗ |
| Q | Emergency Brake DrumBrake Line Distribution — Continued | SP-20B62Source · PDF 204 · Drawing ↑ | A1002 ↗brake system · MB |
| AF | Brake Anchor PinBrake Line Distribution — Continued | BX-39953Source · PDF 210 · Drawing ↑ | 637899 ↗brake system · MB |
| Assembly | Hand Brake Adjusting Bracketparking brake — internal typeThe number and description are confirmed in the original table. The picture shows the associated assembly; individual letter position is not reliably read. | WO-A10330Source · PDF 206 · Drawing ↑Ford · GPW2606 | A10330 ↗brake system · MB |
| Assembly | Rear Brake Cylinder PistonService brake cylinderThe number and description are confirmed in the original table. The picture shows the associated assembly; individual letter position is not reliably read. | WO-A6113Source · PDF 215 · Drawing ↑Ford · GPW2196 | A6113 ↗brake system · MB |
| Assembly | Rear Brake Cylinder SpringService brake cylinderThe number and description are confirmed in the original table. The picture shows the associated assembly; individual letter position is not reliably read. | WO-637545Source · PDF 215 · Drawing ↑ | 637545 ↗brake system · MB |
| Assembly | Rear Brake Cylinder CupService brake cylinderRear working cylinder sleeve; check the cylinder diameter according to the original table. The number and description are confirmed in the original table. The picture shows the associated assembly; individual letter position is not reliably read. | WO-A6116Source · PDF 214 · Drawing ↑Ford · GPW2201 | A6116 ↗brake system · MB |
| D | Brake Tube TeeOriginal overview of MB/GPW assemblies | WO-637432Source · PDF 188 · Drawing ↑ | 637432 ↗brake system · MB |
The same PN in multiple places does not automatically validate each year, country or performance. The original data is preserved; note indicates the difference between the sources.

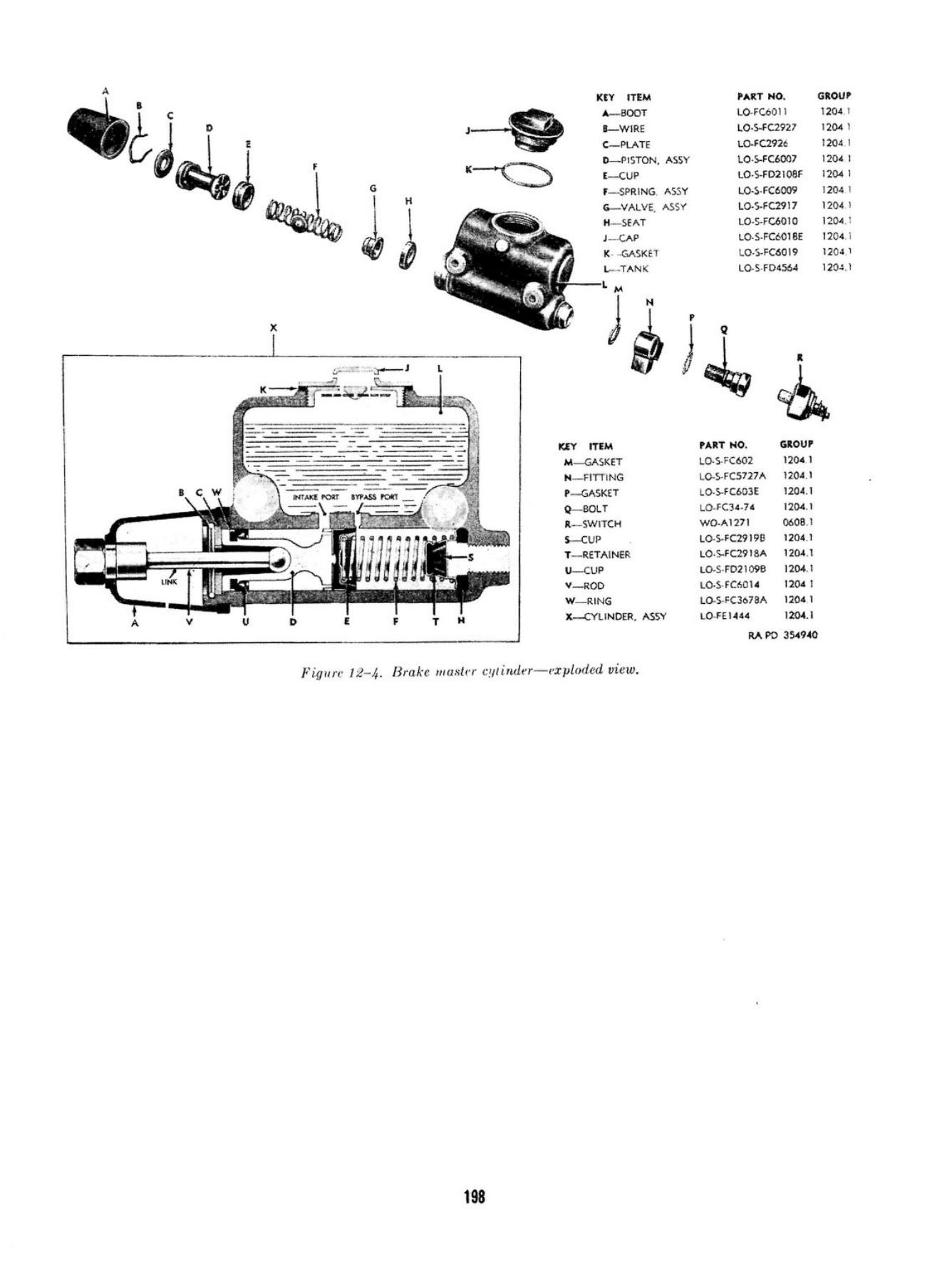

Brake master cylinder

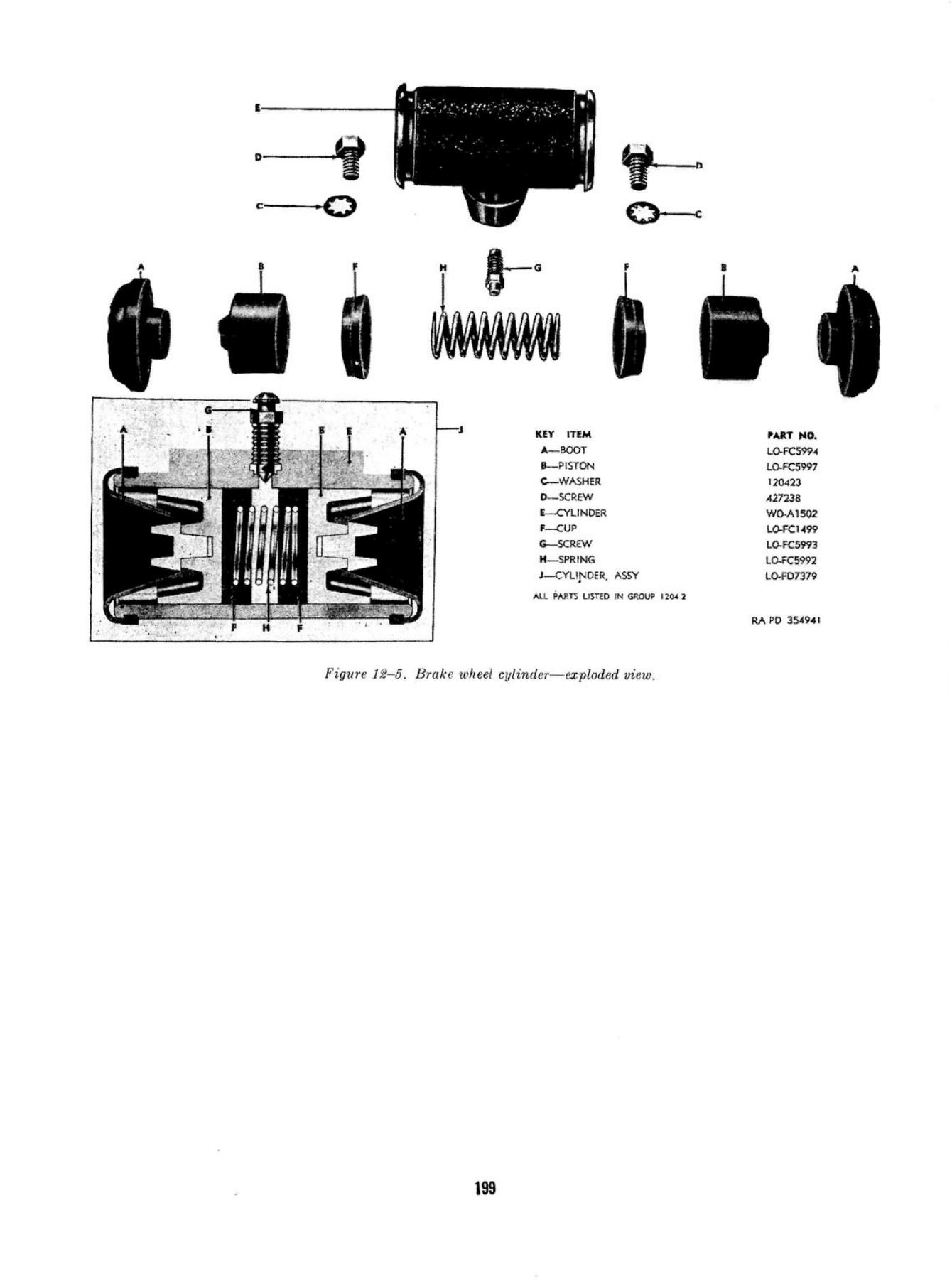

Service brake cylinder

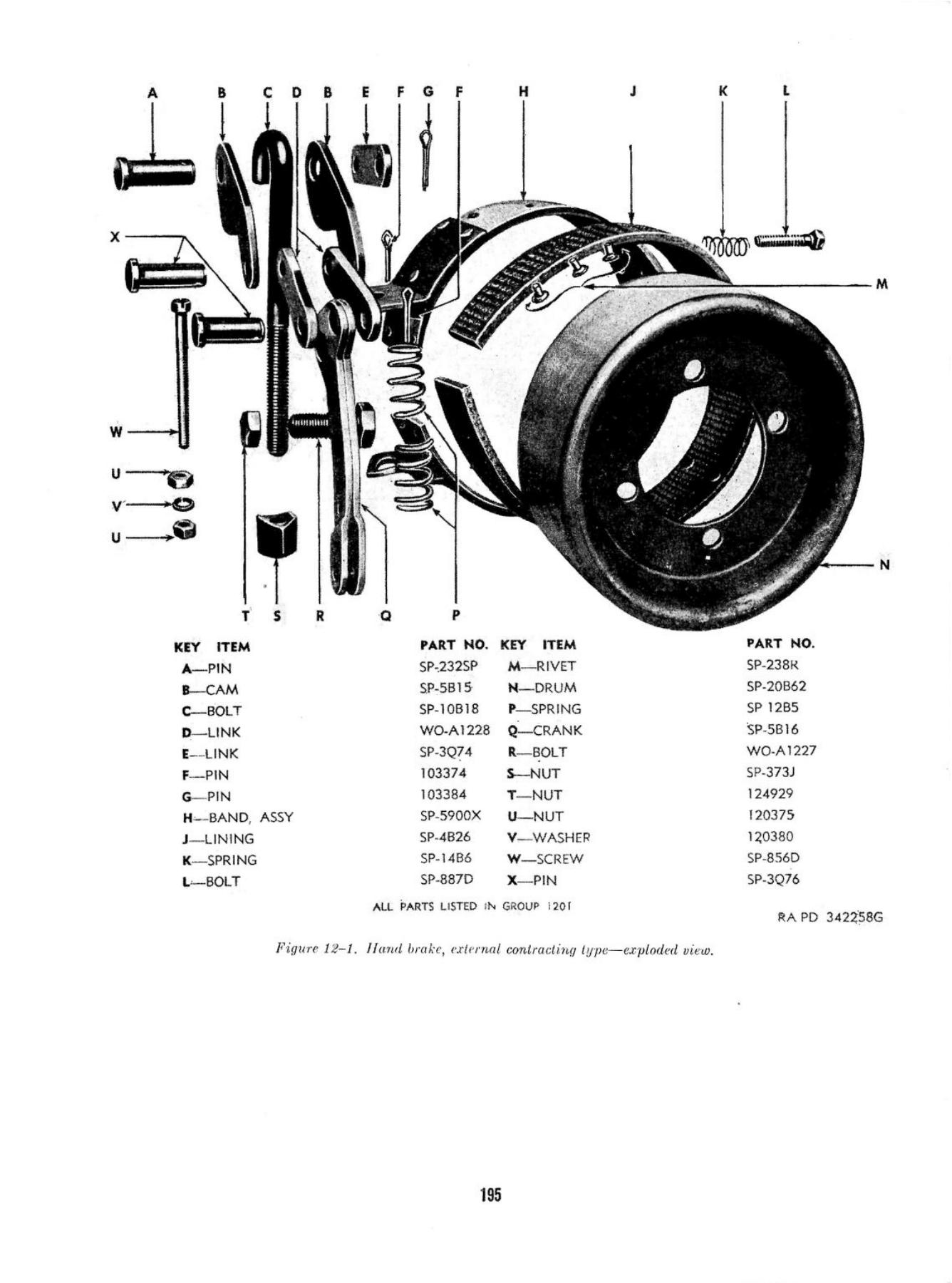

parking brake — external type

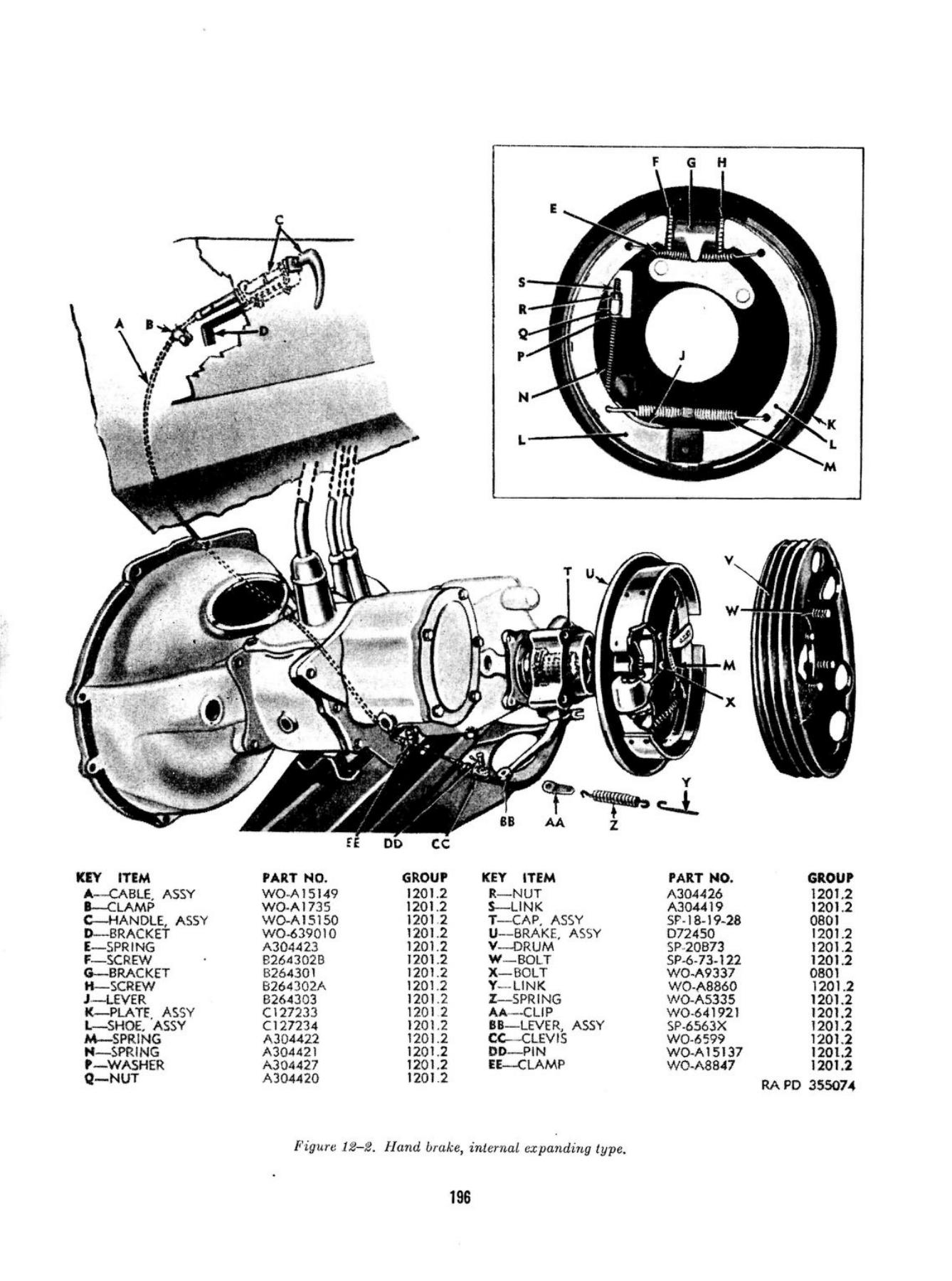

parking brake — internal type

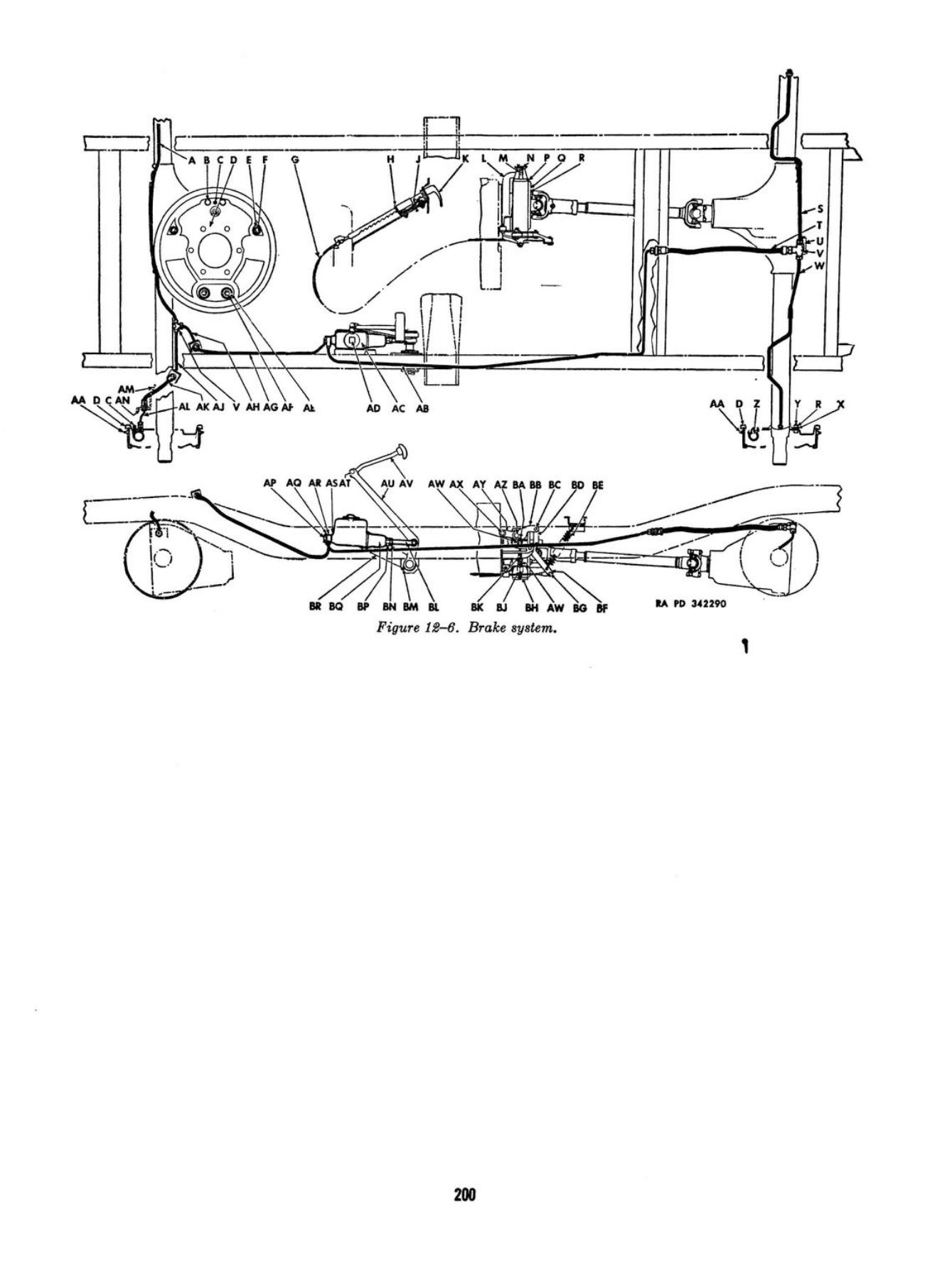

Distribution of brake pipes

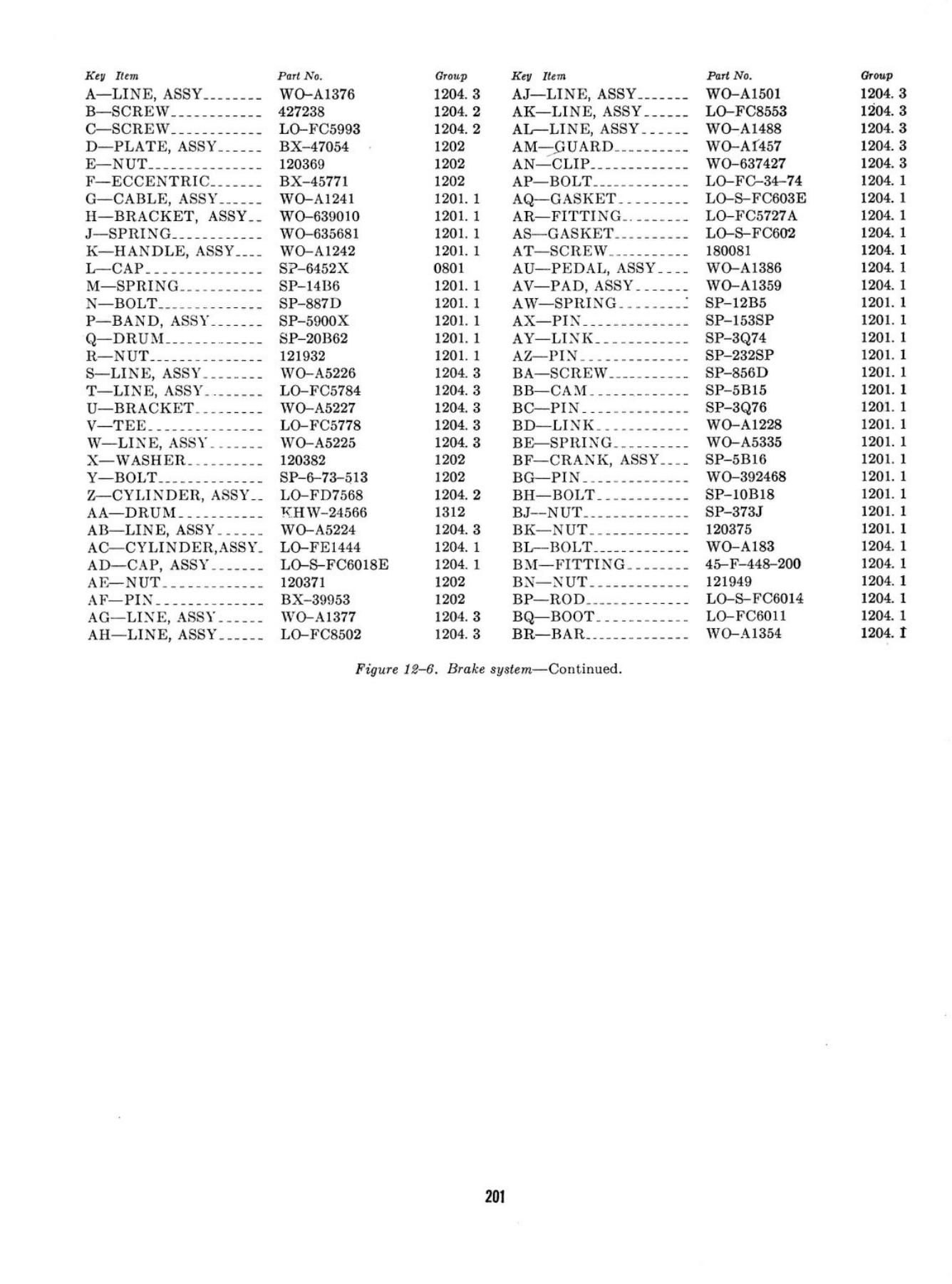

Brake Line Distribution — Continued
Original catalogs and service manual
ORD 9 SNL G-503 — Full Parts Catalog (PDF)
TM 10-1513 - Service Chapter for this assembly (PDF)
Page numbers with drawings indicate pages of the PDF file; printed numbering may vary. For the chassis, body and some equipment, an overview of the assembly is shown, according to the original catalog.

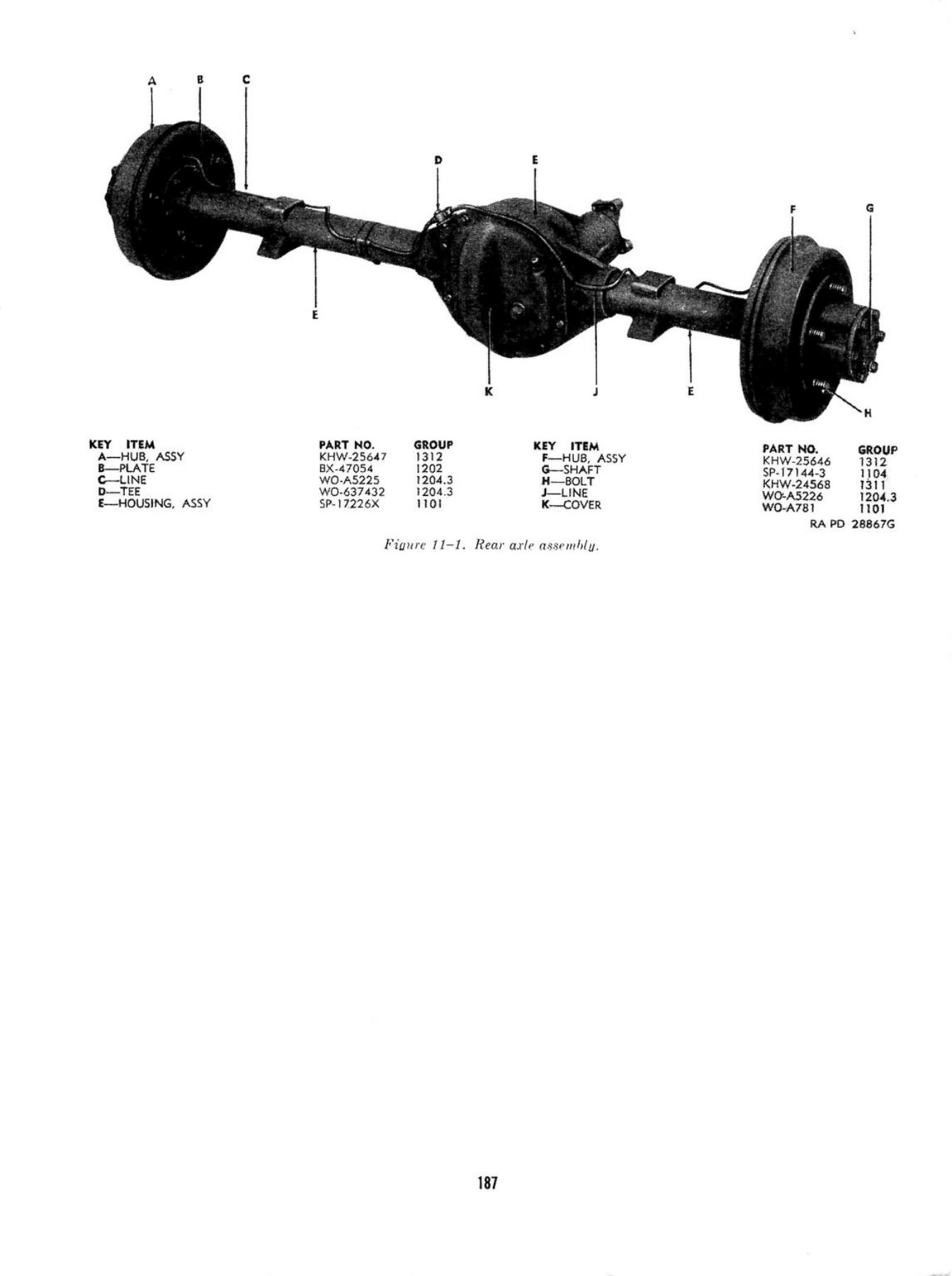

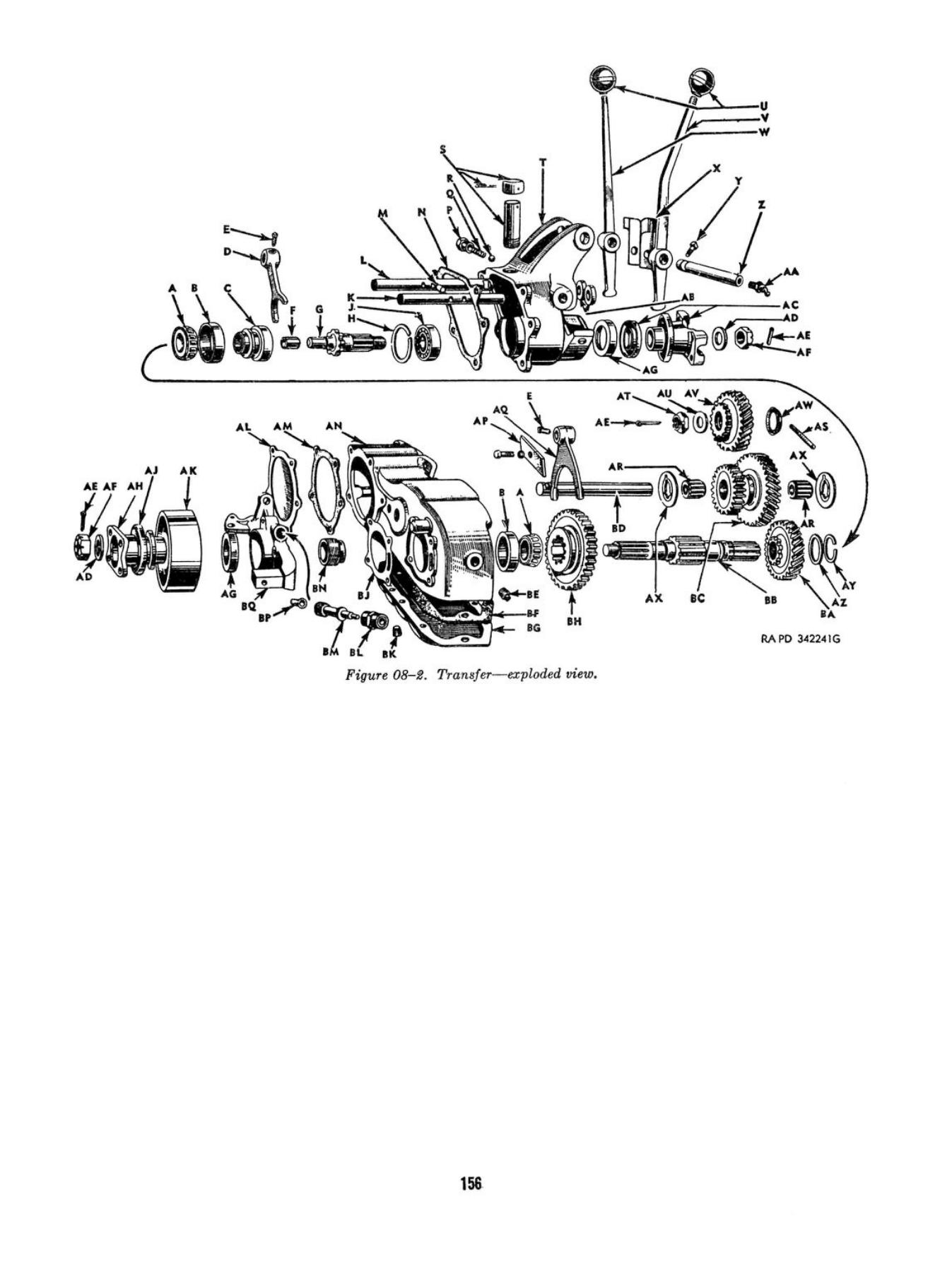

Original overview of MB/GPW assemblies
Original ORD · PDF 157
