Source: ORD 9 SNL G-503, 1949 release, Ford and Willys, ¼-ton 4×4. Marks and legends of the original catalog are preserved. The catalog also shows different versions; check the year and installed assembly before selecting a part. For CJ models, use their separate catalogs.

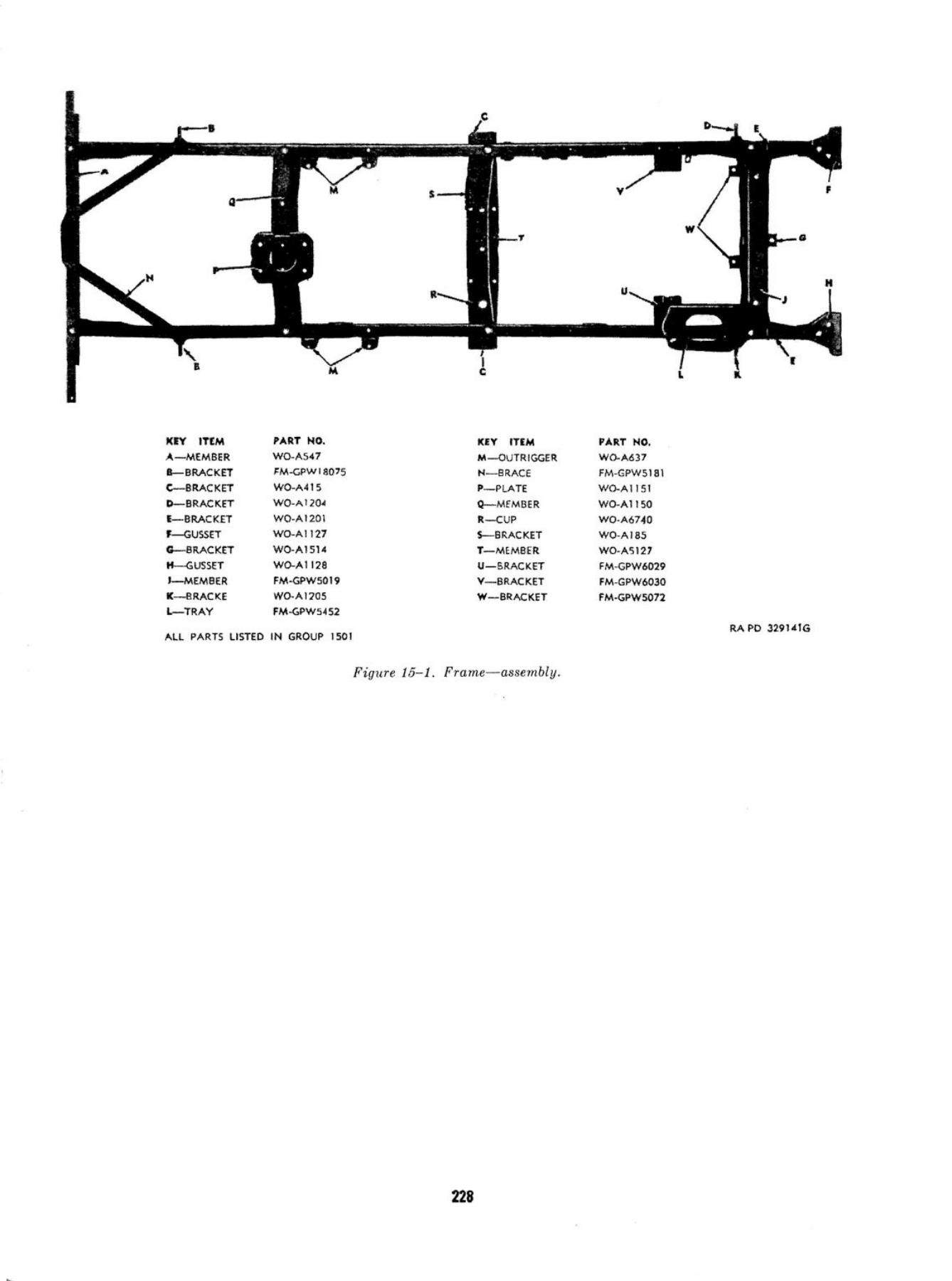

Frame — assembly overview
MB · related parts
Find the part in the MB catalog
The number opens the correct field in the Spare Parts List. The position label is overwritten where it is reliably legible; "assembly" means the whole assembly or part without a separate letter designation. Name substitutions and differences are explained with the section.
| Pos. | Part / name in existing list | Designation from drawing / source | MB part number |
|---|---|---|---|
| F | Spring Shackle BracketSpring mounts on the frame | WO-A544Source · PDF 238 · Drawing ↑ | A544 ↗chassis · MB |
| N | Spring Pivot BracketSpring mounts on the frame | WO-A500Source · PDF 238 · Drawing ↑ | A500 ↗chassis · MB |
| Assembly | Pintle Hook OnlyTow bar — assemblyThe number and description are confirmed in the original table. The picture shows the associated assembly; individual letter position is not reliably read. | WO-A593Source · PDF 235 · Drawing ↑Ford · GPW5182 | A593 ↗miscellaneous · MB |
The same PN in multiple places does not automatically validate each year, country or performance. The original data is preserved; note indicates the difference between the sources.
Tow bar — assembly

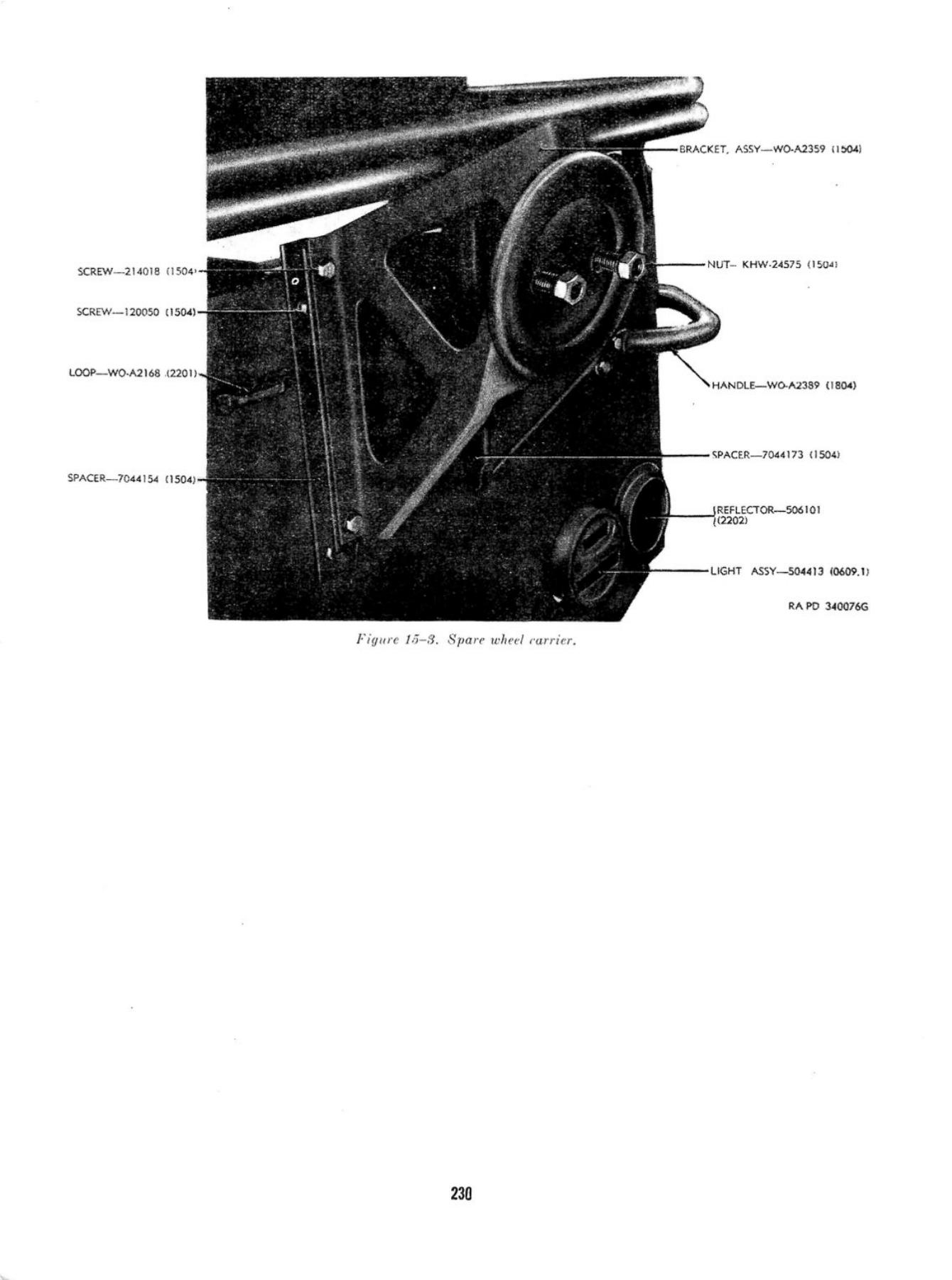

Spare wheel carrier
Original catalogs and service manual
ORD 9 SNL G-503 — Full Parts Catalog (PDF)
TM 10-1513 - Service Chapter for this assembly (PDF)
Page numbers with drawings indicate pages of the PDF file; printed numbering may vary. For the chassis, body and some equipment, an overview of the assembly is shown, according to the original catalog.

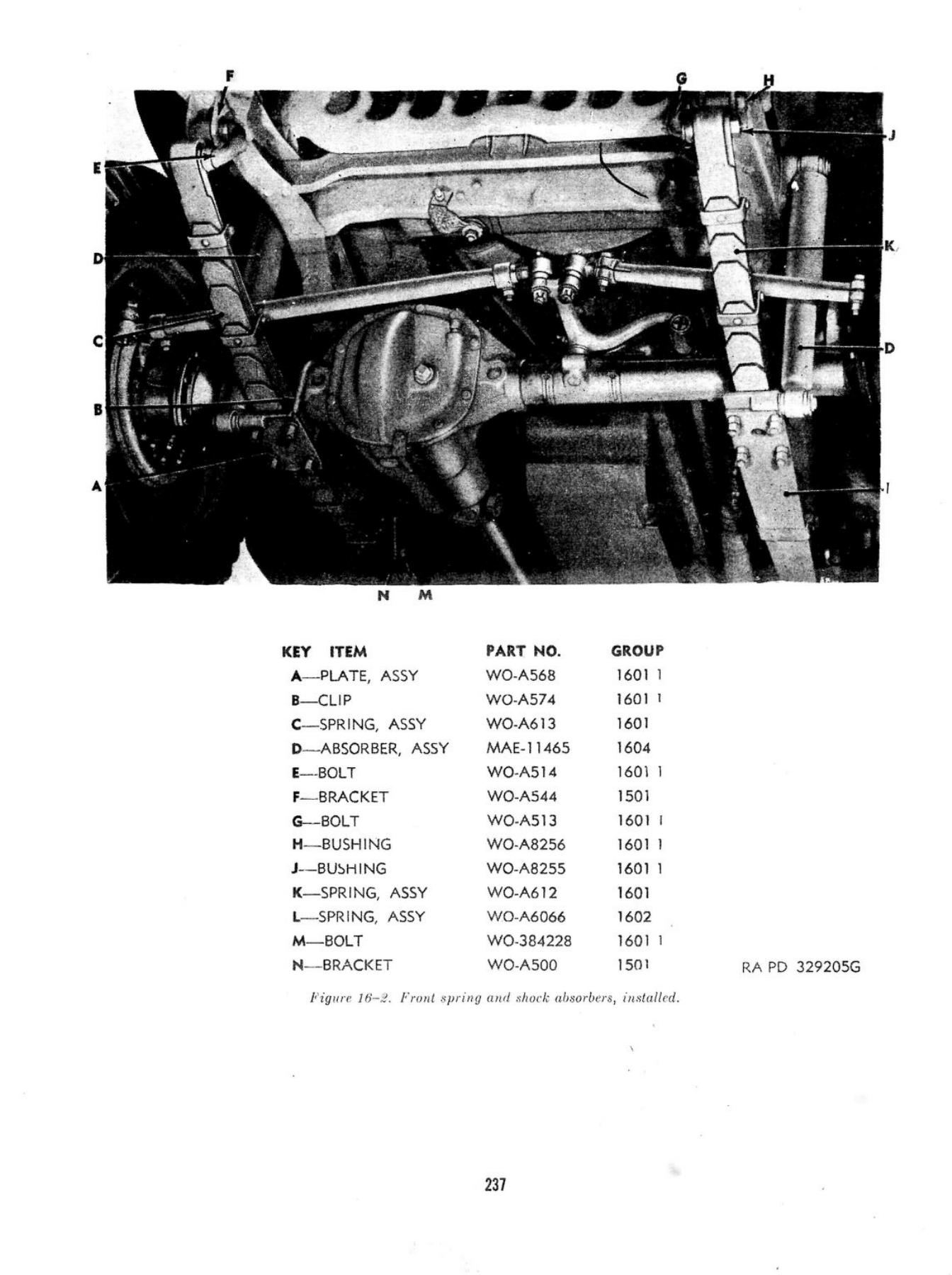

Spring mounts on the frame
