Source: ORD 9 SNL G-503, 1949 release, Ford and Willys, ¼-ton 4×4. Marks and legends of the original catalog are preserved. The catalog also shows different versions; check the year and installed assembly before selecting a part. For CJ models, use their separate catalogs.

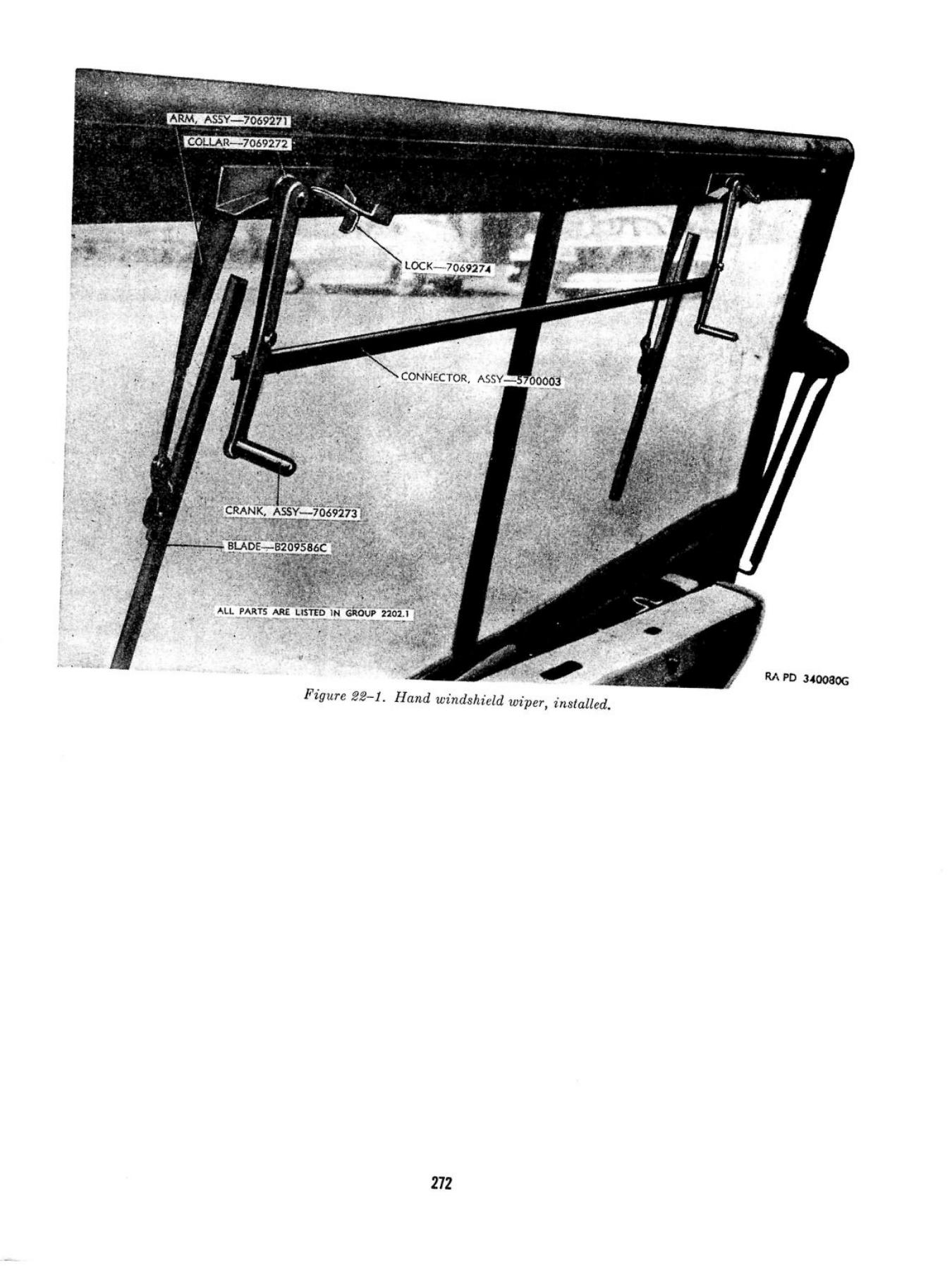

Manual windshield wiper
MB · related parts
Find the part in the MB catalog
The number opens the correct field in the Spare Parts List. The position label is overwritten where it is reliably legible; "assembly" means the whole assembly or part without a separate letter designation. Name substitutions and differences are explained with the section.
| Pos. | Part / name in existing list | Designation from drawing / source | MB part number |
|---|---|---|---|
| GG | Windshield Frame to Cowl StripGlass and windshield seal | WO-A2476Source · PDF 253 · Drawing ↑ | A2476 ↗miscellaneous · MB |
| JJ | Windshield GlassGlass and windshield seal | WO-A2478Source · PDF 253 · Drawing ↑ | A2478 ↗miscellaneous · MB |
| Assembly | Wiper ArmVacuum windshield wiperThe number and description are confirmed in the original table. The picture shows the associated assembly; individual letter position is not reliably read. | WO-A12865Source · PDF 279 · Drawing ↑ | A12865 ↗miscellaneous · MB |
The same PN in multiple places does not automatically validate each year, country or performance. The original data is preserved; note indicates the difference between the sources.

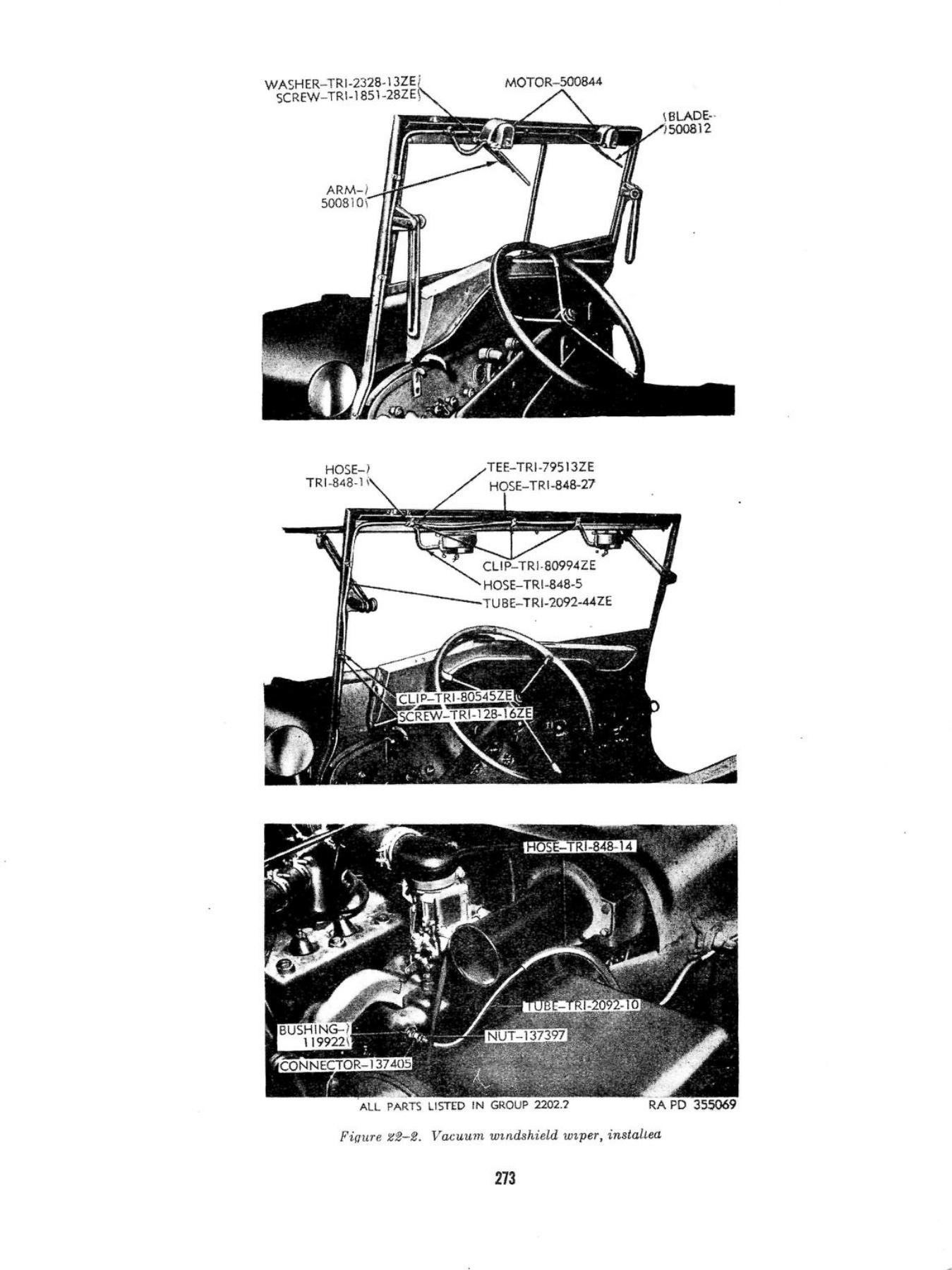

Vacuum windshield wiper
Original catalogs and service manual
ORD 9 SNL G-503 — Full Parts Catalog (PDF)
TM 10-1513 - Service Chapter for this assembly (PDF)
Page numbers with drawings indicate pages of the PDF file; printed numbering may vary. For the chassis, body and some equipment, an overview of the assembly is shown, according to the original catalog.
Glass and windshield seal
