Source: ORD 9 SNL G-503, 1949 release, Ford and Willys, ¼-ton 4×4. Marks and legends of the original catalog are preserved. The catalog also shows different versions; check the year and installed assembly before selecting a part. For CJ models, use their separate catalogs.

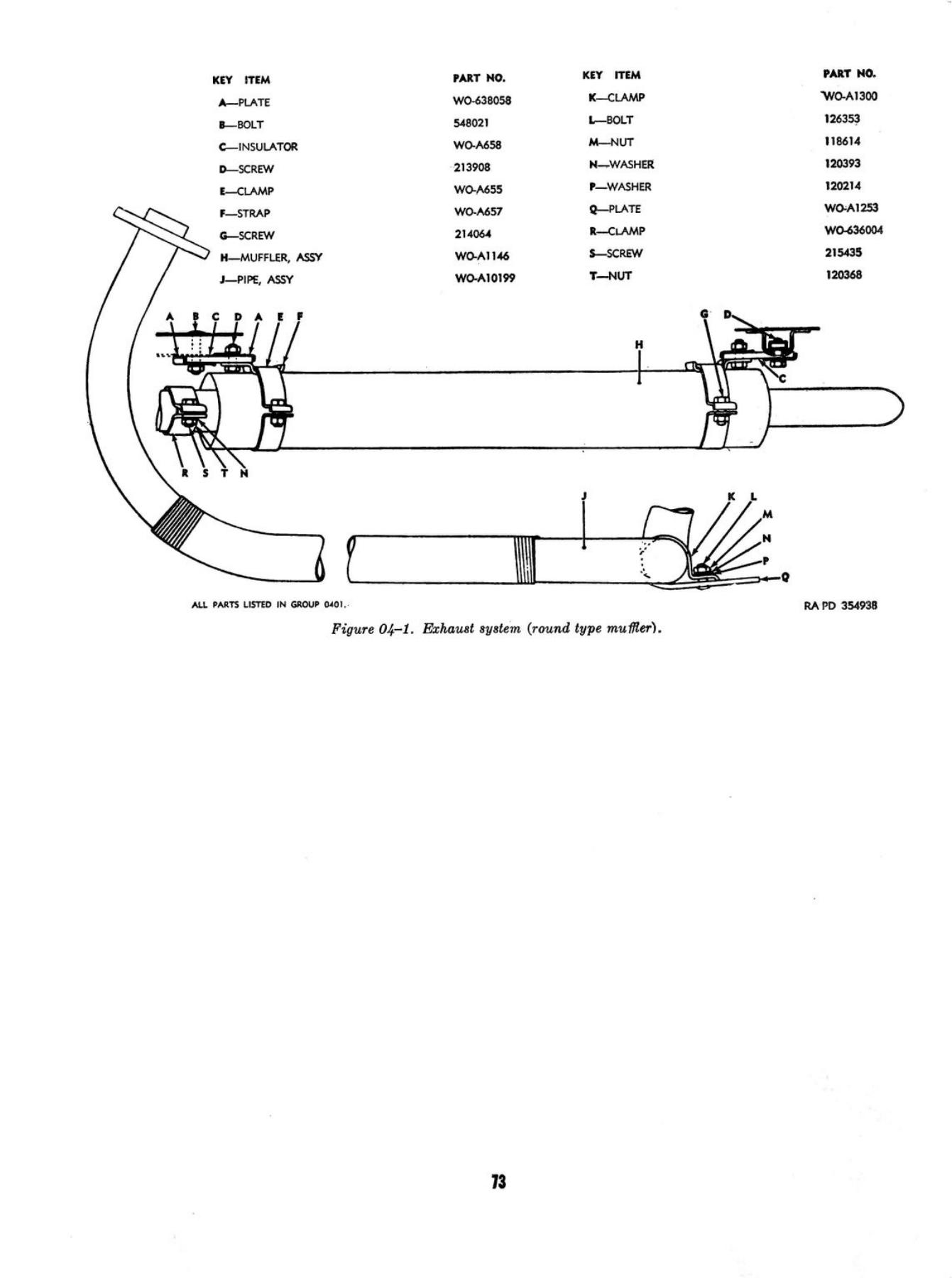

Exhaust with round muffler
MB · related parts
Find the part in the MB catalog
The number opens the correct field in the Spare Parts List. The position label is overwritten where it is reliably legible; "assembly" means the whole assembly or part without a separate letter designation. Name substitutions and differences are explained with the section.
| Pos. | Part / name in existing list | Designation from drawing / source | MB part number |
|---|---|---|---|
| — | Support InsulatorExhaust with round muffler | WO-A658Source · PDF 74 · Drawing ↑ | A 658 ↗exhaust · MB |
| — | Exhaust PipeExhaust with round muffler | WO-A10199Source · PDF 74 · Drawing ↑ | A 10199 ↗exhaust · MB |
| — | Support InsulatorExhaust with oval muffler | WO-A658Source · PDF 75 · Drawing ↑ | A 658 ↗exhaust · MB |
| K | Muffler Tailpipe ClampExhaust with oval muffler | WO-A6119Source · PDF 75 · Drawing ↑ | A 6119 ↗exhaust · MB |
| A | Exhaust Pipe Flange GasketExhaust — deep mud variant | WO-634814Source · PDF 76 · Drawing ↑ | 634814 ↗exhaust · MB |
| D | Support InsulatorExhaust — deep mud variant | WO-A658Source · PDF 76 · Drawing ↑ | A 658 ↗exhaust · MB |
The same PN in multiple places does not automatically validate each year, country or performance. The original data is preserved; note indicates the difference between the sources.

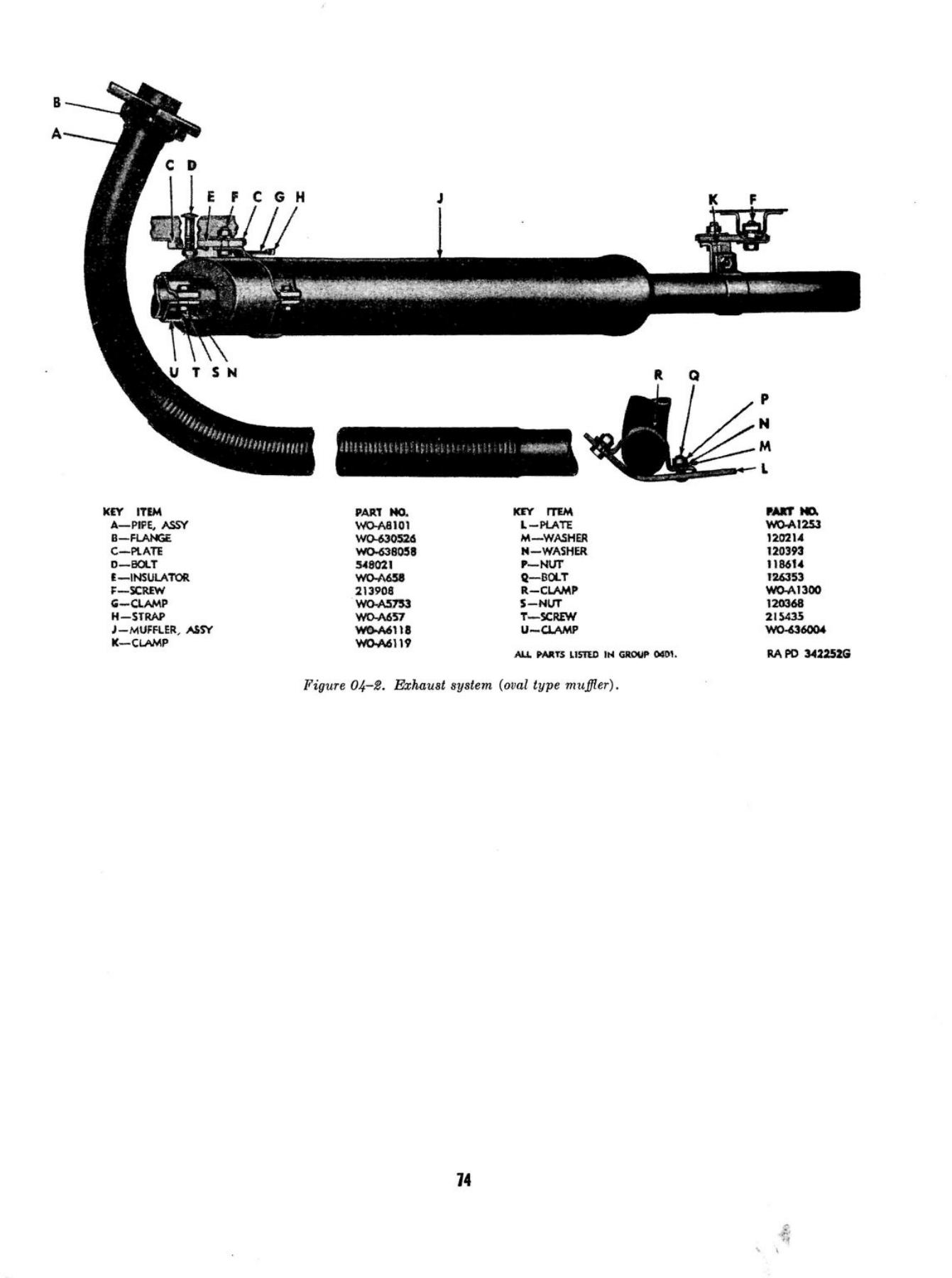

Exhaust with oval muffler

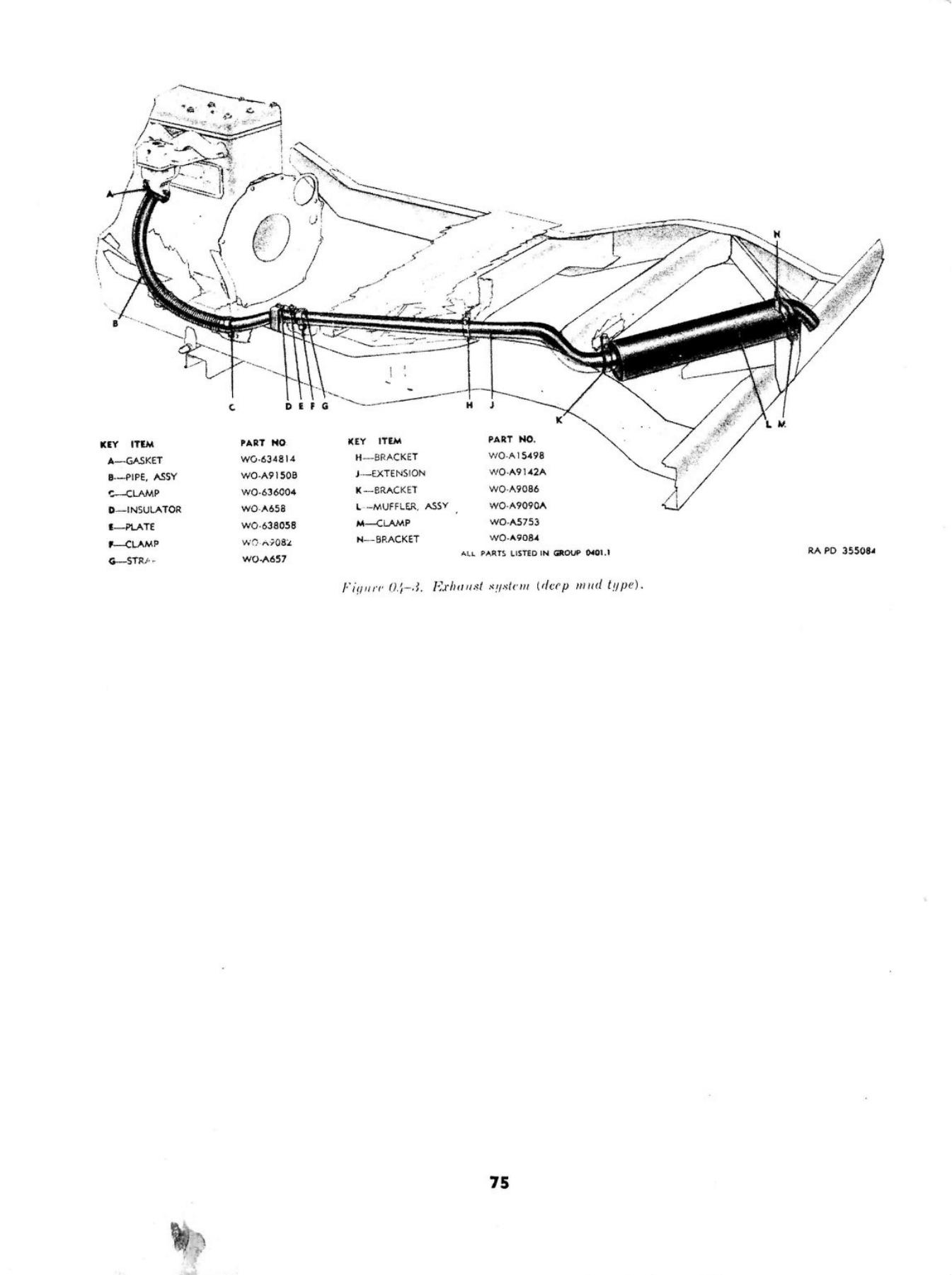

Exhaust — deep mud variant
Original catalogs and service manual
ORD 9 SNL G-503 — Full Parts Catalog (PDF)
TM 10-1513 - Service Chapter for this assembly (PDF)
Page numbers with drawings indicate pages of the PDF file; printed numbering may vary. For the chassis, body and some equipment, an overview of the assembly is shown, according to the original catalog.
