Source: ORD 9 SNL G-503, 1949 release, Ford and Willys, ¼-ton 4×4. Marks and legends of the original catalog are preserved. The catalog also shows different versions; check the year and installed assembly before selecting a part. For CJ models, use their separate catalogs.

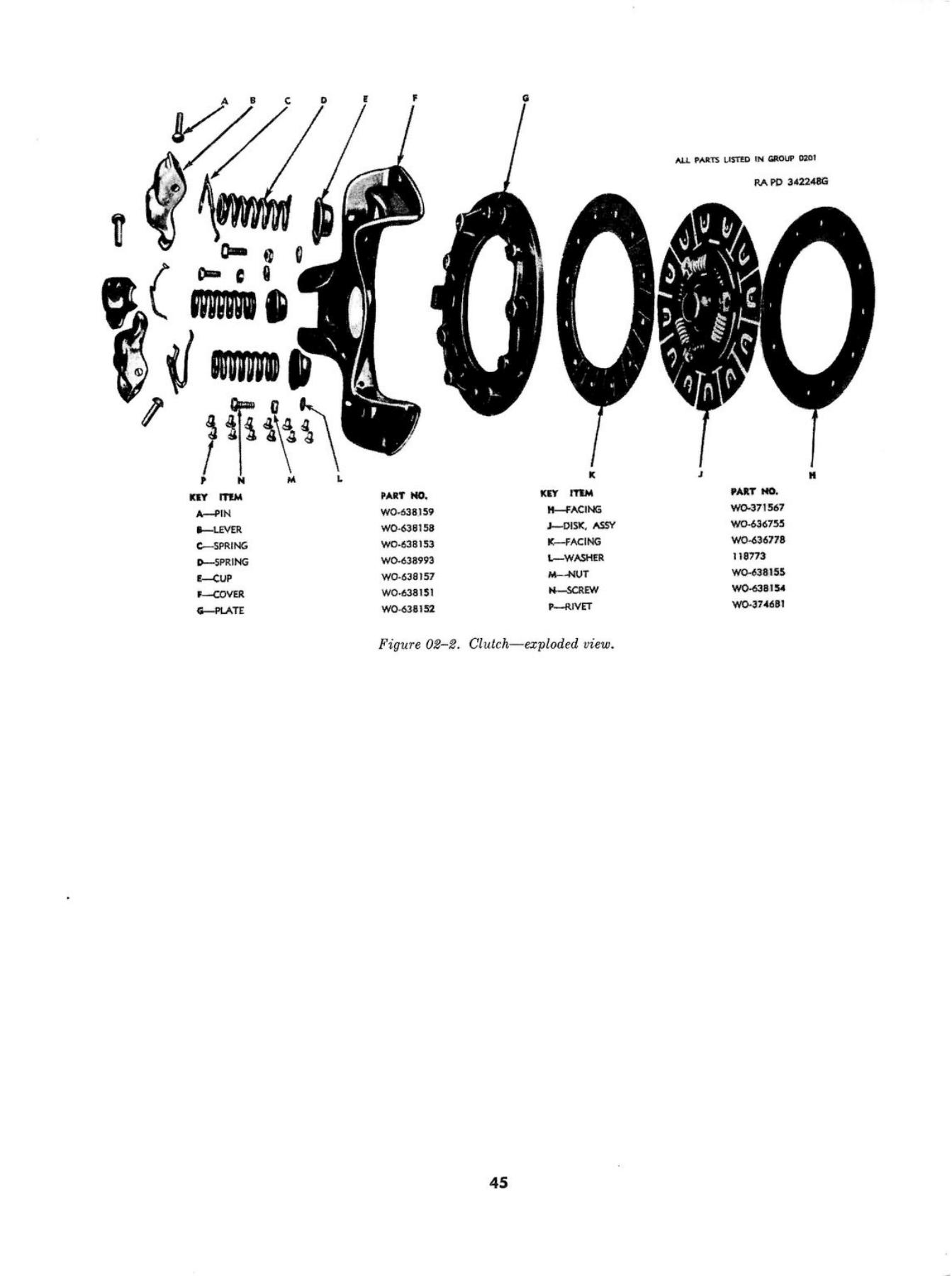

Clutch — exploded view
MB · related parts
Find the part in the MB catalog
The number opens the correct field in the Spare Parts List. The position label is overwritten where it is reliably legible; "assembly" means the whole assembly or part without a separate letter designation. Name substitutions and differences are explained with the section.
| Pos. | Part / name in existing list | Designation from drawing / source | MB part number |
|---|---|---|---|
| — | Brake Pedal ShaftClutch controls | WO-A495Source · PDF 47 · Drawing ↑ | A495 ↗brake system · MB |
| T | Clutch Control Lever & TubeClutch controls | WO-A 1355Source · PDF 47 · Drawing ↑ | A 1355 ↗clutch · MB |
| U | Clutch Release Pedal RodClutch controls | WO-A499Source · PDF 47 · Drawing ↑ | A 499 ↗clutch · MB |
| D | Clutch Release CableClutch controls | WO-A5102Source · PDF 47 · Drawing ↑ | A 5102 ↗clutch · MB |
| E | Clutch Control Lever or YokeClutch controls | WO-630112Source · PDF 47 · Drawing ↑ | 630112 ↗clutch · MB |
| Y | Clutch Retracting SpringClutch controls | WO-630593Source · PDF 47 · Drawing ↑ | 630593 ↗clutch · MB630593 ↗brake system · MB |
| H | Clutch Release Carrier SpringClutch controls | WO-630117Source · PDF 47 · Drawing ↑ | 630117 ↗clutch · MB |
| — | Clutch Control Ball StudClutch controls | WO-A181Source · PDF 47 · Drawing ↑ | A 181 ↗clutch · MB |
| AE | Clutch PedalClutch controls | WO-A405Source · PDF 47 · Drawing ↑ | A 405 ↗clutch · MB |
| Assembly | Clutch Release BearingClutch — exploded viewBearing in clutch assembly; there is no separate letter position in this legend. | WO-635529Source · PDF 49 · Drawing ↑ | 635529 ↗clutch · MB |
| J | Release Lever FulcrumOriginal overview of MB/GPW assemblies | WO-630068Source · PDF 49 · Drawing ↑Ford · GPW7516 | 630068 ↗clutch · MB |
| L | Clutch Release Lever AuburnOriginal overview of MB/GPW assemblies | WO-638158Source · PDF 48 · Drawing ↑Ford · GPW7591 | 638158 ↗clutch · MB |
| B | Clutch Driven PlateOriginal overview of MB/GPW assemblies | WO-636755Source · PDF 48 · Drawing ↑Ford · GPW7550 | 636755 ↗clutch · MB |
The same PN in multiple places does not automatically validate each year, country or performance. The original data is preserved; note indicates the difference between the sources.
Clutch controls
Original catalogs and service manual
ORD 9 SNL G-503 — Full Parts Catalog (PDF)
TM 10-1513 - Service Chapter for this assembly (PDF)

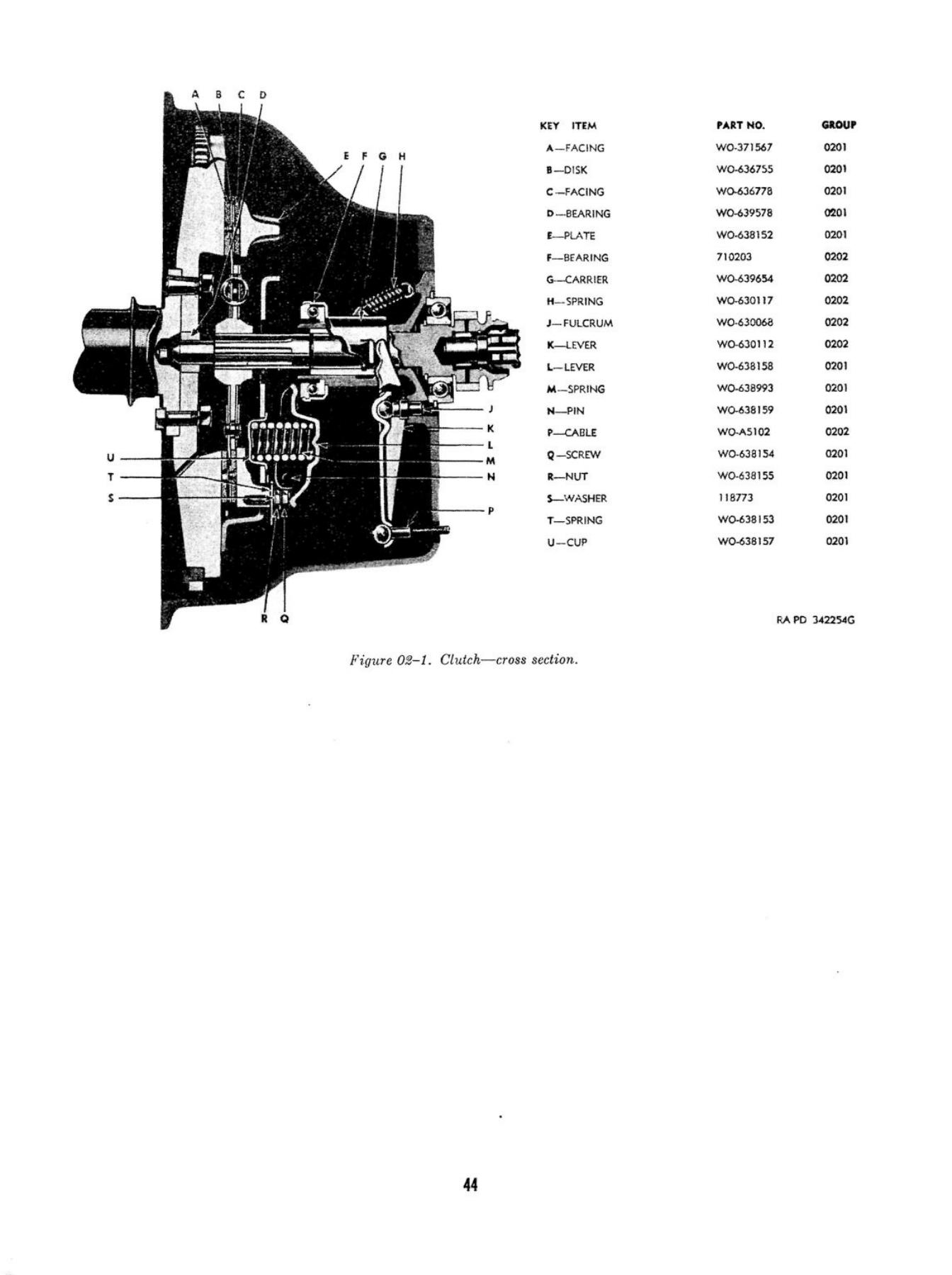

Page numbers with drawings indicate pages of the PDF file; printed numbering may vary. For the chassis, body and some equipment, an overview of the assembly is shown, according to the original catalog.
Original overview of MB/GPW assemblies
