1
CLUTCH GROUP
 |  | The original artwork has not been verified |  |  |  | The original artwork has not been verified | |
|---|---|---|---|---|---|---|---|

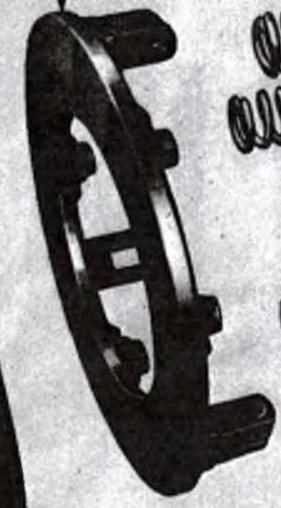

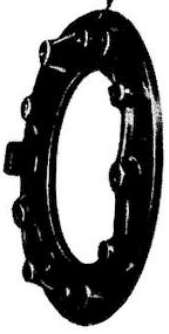

| VEHICLES MODEL | Clutch Pressure Assy Auburn | Clutch Pressure Assy Rockford | Clutch Pressure Assy Borg & Beck | Clutch Pressure Repair Kit Auburn | Clutch Pressure Wages Auburn | Clutch Pressure Wages Rockford | Clutch Pressure Wages Borg & Beck |
| No. of Units Per Vehicle | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| MB | 906467Replacement application · source and note ↗ | 917181Replacement application · source and note ↗ | 908615Replacement application · source and note ↗ | 805017Replacement application · source and note ↗ | 117483Identity and performance · source and note ↗ | ||
| CJ2A | 906467 | 917181 | 908615 | 805017 | 117483 | ||
| CJ3A | 906467 | 917181 | 908615 | 805017 | 117483 | ||
| CJ3B | 906467 | 917181 | 908615 | 805017 | 117483 | ||
| CJ5 | 906467 | 917181 | 908615 | 805017 | 117483 | ||
| CJ6 | 906467 | 917181 | 908615 | 805017 | 117483 | ||
| M38 | 906467 | 917181 | 908615 | 805017 | 117483 | ||
| M38A1 | 906467 | 917181 | 908615 | 805017 | 117483 | ||
| DJ3A | 906467 | 917181 | 908615 | 805017 | 117483 | ||
| 463 | 906467 | 917181 | 908615 | 805017 | 117483 | ||
| 4X463 | 906467 | 917181 | 908615 | 805017 | 117483 | ||
| 473 | 906467 | 917181 | 908615 | 805017 | 117483 | ||
| 4X473 | 906467 | 917181 | 908615 | 805017 | 117483 | ||
| 475 | 906467 | 917181 | 908615 | 805017 | 117483 | ||
| 2X475 | 906467 | 917181 | 908615 | 805017 | 117483 | ||
| 4X475 | 906467 | 917181 | 908615 | 805017 | 117483 | ||
| 6-226-2X4 | 733581 | 909908 | |||||
| 6-226-4X4 | 917262 | 917263 | |||||
| 4WD | 906467 | 917181 | 908615 | 805017 | 117483 | ||
| 473-4WD | 906467 | 917181 | 908615 | 805017 | 117483 | ||
| 475-4WD | 906467 | 917181 | 908615 | 805017 | 117483 | ||
| 6-226-4WD | 917262 | 917263 | |||||
| FC150 | 906467 | 917181 | 908615 | 805017 | 117483 | ||
| FC170 | 917262 | 917263 |
2
CLUTCH GROUP
 MB · ORD 1949 · PDF 46 · B · thrust lever |  | The original artwork has not been verified |  |  | The original artwork has not been verified |  | |
|---|---|---|---|---|---|---|---|

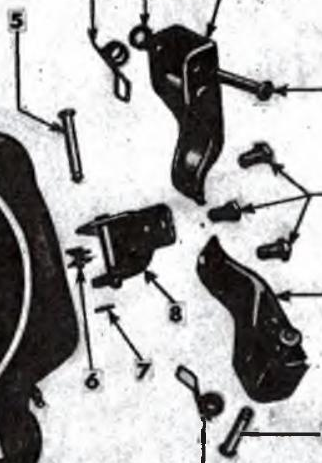

| VEHICLES MODEL | Clutch Release Lever Auburn | Clutch Release Lever Rockford | Clutch Release Lever Borg & Beck | Clutch Pressure Spring Auburn | Clutch Pressure Spring Rockford | Clutch Pressure Spring Borg & Beck | Pressure Return Spring Clip Auburn |
| No. of Units Per Vehicle | 3 | 3 | 3 | 3 | 6 | 6 or 9 | 3 |
| MB | 638158MB · LFord · GPW7591 | 117484Identity and performance · source and note ↗ | 906468Replacement application · source and note ↗ | 117367Identity and performance · source and note ↗ | 805197Replacement application · source and note ↗ | ||
| CJ2A | 638158 | 117484 | 906468 | 117367 | 805197 | ||
| CJ3A | 638158 | 117484 | 906468 | 117367 | 805197 | ||
| CJ3B | 638158 | 117484 | 906468 | 117367 | 805197 | ||
| CJ5 | 638158 | 117484 | 906468 | 117367 | 805197 | ||
| CJ6 | 638158 | 117484 | 906468 | 117367 | 805197 | ||
| M38 | 638158 | 117484 | 906468 | 117367 | 805197 | ||
| M38A1 | 638158 | 117484 | 906468 | 117367 | 806012 | ||
| DJ3A | 638158 | 117484 | 906468 | 117367 | 805197 | ||
| 463 | 638158 | 117484 | 906468 | 117367 | 805197 | ||
| 4X463 | 638158 | 117484 | 906468 | 117367 | 805197 | ||
| 473 | 638158 | 117484 | 906468 | 117367 | 805197 | ||
| 4X473 | 638158 | 117484 | 906468 | 117367 | 805197 | ||
| 475 | 638158 | 117484 | 906468 | 117367 | 805197 | ||
| 2X475 | 638158 | 117484 | 906468 | 117367 | 805197 | ||
| 4X475 | 638158 | 117484 | 906468 | 117367 | 805197 | ||
| 6-226-2X4 | 732146 | 909904 | |||||
| 6-226-4X4 | 732146 | 917264 | |||||
| 4WD | 638158 | 117484 | 906468 | 117367 | 805197 | ||
| 473-4WD | 638158 | 117484 | 906468 | 117367 | 805197 | ||
| 475-4WD | 638158 | 117484 | 906468 | 117367 | 805197 | ||
| 6-226-4WD | 732146 | 917264 | |||||
| FC150 | 638158 | 117484 | 906468 | 117367 | 805197 | ||
| FC170 | 732146 | 917264 |
3
CLUTCH GROUP

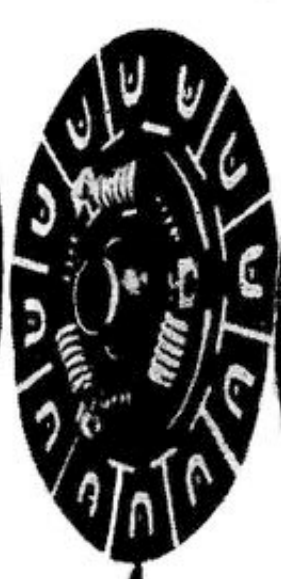

 MB · ORD 1949 · PDF 46 · J · lamella |  MB · ORD 1949 · PDF 45 · F · cross section bearingDisplay type or place in assembly. Side, measure and performance are determined by PN. |  |  MB · ORD 1949 · PDF 47 · H |  MB · ORD 1949 · PDF 47 · D |  MB · ORD 1949 · PDF 45 · J · support in section | ||
|---|---|---|---|---|---|---|---|
| VEHICLES MODEL | Clutch Driven Wages | Clutch Facing Kit | Clutch Release Bearing | Release Bearing Carrier | Clutch Release Carrier Spring | Clutch Release Cable | Release Lever Fulcrum |
| No. of Units Per Vehicle | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| MB | 636755MB · BFord · GPW7550 | A 6751ORD confirmation · source and note ↗ | 635529MB · Assembly | 644366Replacement application · source and note ↗ | 630117MB · H | A 5102MB · D | 630068MB · JFord · GPW7516 |
| CJ2A | 919870 | 807153 | 635529 | 644366 | 630117 | 640124 | 630068 |
| CJ3A | 919870 | 807153 | 635529 | 644366 | 630117 | 640124 | 630068 |
| CJ3B | 919870 | 807153 | 635529 | 644366 | 630117 | 640124 | 630068 |
| CJ5 | 919870 | 807153 | 635529 | 644366 | 630117 | 640124 | 630068 |
| CJ6 | 919870 | 807153 | 635529 | 644366 | 630117 | 640124 | 630068 |
| M38 | 919870 | 807153 | 635529 | 644366 | 630117 | 640124 | 630068 |
| M38A1 | 919870 | 807153 | 635529 | 644366 | 630117 | 640124 | 630068 |
| DJ3A | 919870 | 807153 | 635529 | 644366 | 630117 | 640124 | 630068 |
| 463 | 919870 | 807153 | 635529 | 644366 | 630117 | 640124 | 630068 |
| 4X463 | 919870 | 807153 | 635529 | 644366 | 630117 | 640124 | 630068 |
| 473 | 919870 | 807153 | 635529 | 644366 | 630117 | 640124 | 630068 |
| 4X473 | 919870 | 807153 | 635529 | 644366 | 630117 | 640124 | 630068 |
| 475 | 919870 | 807153 | 635529 | 644366 | 630117 | 640124 | 630068 |
| 2X475 | 919870 | 807153 | 635529 | 644366 | 630117 | 640124 | 630068 |
| 4X475 | 919870 | 807153 | 635529 | 644366 | 630117 | 640124 | 630068 |
| 6-226-2X4 | 926917 | 700003 | 732696 | 700002 | |||
| 6-226-4X4 | 746240 | 700003 | 732696 | 700002 | |||
| 4WD | 919870 | 807153 | 635529 | 644366 | 630117 | 640124 | 630068 |
| 473-4WD | 919870 | 807153 | 635529 | 644366 | 630117 | 640124 | 630068 |
| 475-4WD | 919870 | 807153 | 635529 | 644366 | 630117 | 640124 | 630068 |
| 6-226-4WD | 746240 | 700003 | 732696 | 700002 | |||
| FC150 | 919870 | 807153 | 635529 | 644366 | 630117 | 640124 | 630068 |
| FC170 | 746240 | 700003 | 732696 | 700002 |
4
CLUTCH GROUP

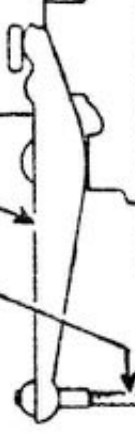

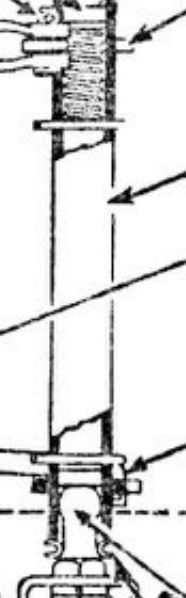

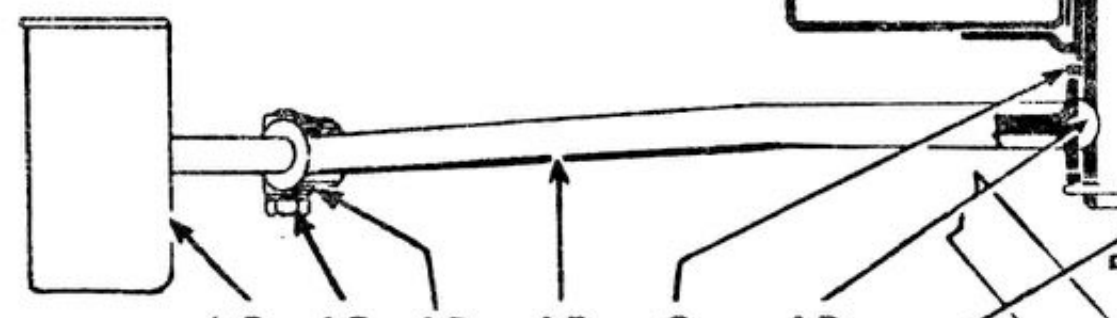

 MB · ORD 1949 · PDF 47 · E · fork |  MB · ORD 1949 · PDF 47 · T · lever and tube |  MB · ORD 1949 · PDF 47 · U |  MB · ORD 1949 · PDF 47 · N · ball support in assembly |  |  MB · ORD 1949 · PDF 47 · AE · pedal |  MB · ORD 1949 · PDF 47 · Y | |
|---|---|---|---|---|---|---|---|

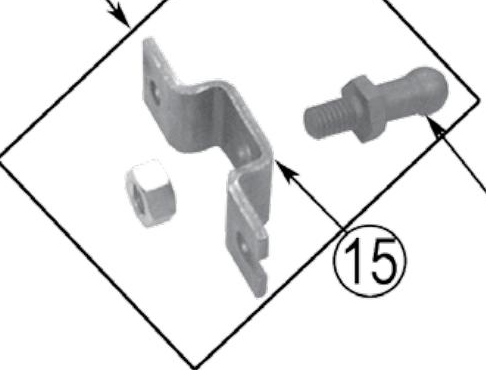

| VEHICLES MODEL | Clutch Control Lever or Yoke | Clutch Control Lever & Tubes | Clutch Release Pedal Gen | Clutch Control Ball Stud | Clutch Control Stud & Bracket | Clutch Pedal | Clutch Retracting Spring |
| No. of Units Per Vehicle | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| MB | 630112MB · E | A 1355MB · T | A 499MB · U | A 181MB · assembly view | A 179ORD confirmation · source and note ↗ | A 405MB · AE | 630593MB · Y |
| CJ2A | 630112 | 642624 | 640123 | A 181 | A 179 | A 405 | 630593 |
| CJ3A | 630112 | 642624 | 640123 | A 181 | A 179 | A 405 | 630593 |
| CJ3B | 630112 | 642624 | 640123 | A 181 | A 179 | A 405 | 630593 |
| CJ5 | 630112 | 642624 | 640123 | A 181 | A 179 | A 405 | 630593 |
| CJ6 | 630112 | 642624 | 640123 | A 181 | A 179 | A 405 | 630593 |
| M38 | 630112 | 642624 | 640123 | A 181 | A 179 | A 405 | 630593 |
| M38A1 | 630112 | 642624 | 640123 | A 181 | A 179 | A 405 | 630593 |
| DJ3A | 630112 | 642624 | 909814 | A 181 | A 179 | A 405 | 630593 |
| 463 | 641275 | A 181 | 811094 | 641723 | |||
| 4X463 | 641275 | A 181 | 643157 | 641723 | |||
| 473 | 641275 | 649224 | 811094 | 641723 | |||
| 4X473 | 641275 | 649224 | 643157 | 641723 | |||
| 475 | 641275 | 649224 | 811094 | 641723 | |||
| 2X475 | 641275 | 649343 | 925495 | 641723 | |||
| 4X475 | 641275 | 649343 | 925495 | 641723 | |||
| 6-226-2X4 | 707750 | 649343 | 925495 | 641723 | |||
| 6-226-4X4 | 707750 | 649343 | 925495 | 641723 | |||
| 4WD | 641275 | A 181 | 643157 | 641723 | |||
| 473-4WD | 641275 | 649224 | 643157 | 641723 | |||
| 475-4WD | 641275 | 649343 | 925495 | 641723 | |||
| 6-226-4WD | 707750 | 649343 | 925495 | 641723 | |||
| FC150 | 630112 | 911467 | A 181 | 915970 | 641727 | ||
| FC170 | 707750 | 649343 | 915970 | 641727 |
