Source: ORD 9 SNL G-503, 1949 release, Ford and Willys, ¼-ton 4×4. Marks and legends of the original catalog are preserved. The catalog also shows different versions; check the year and installed assembly before selecting a part. For CJ models, use their separate catalogs.

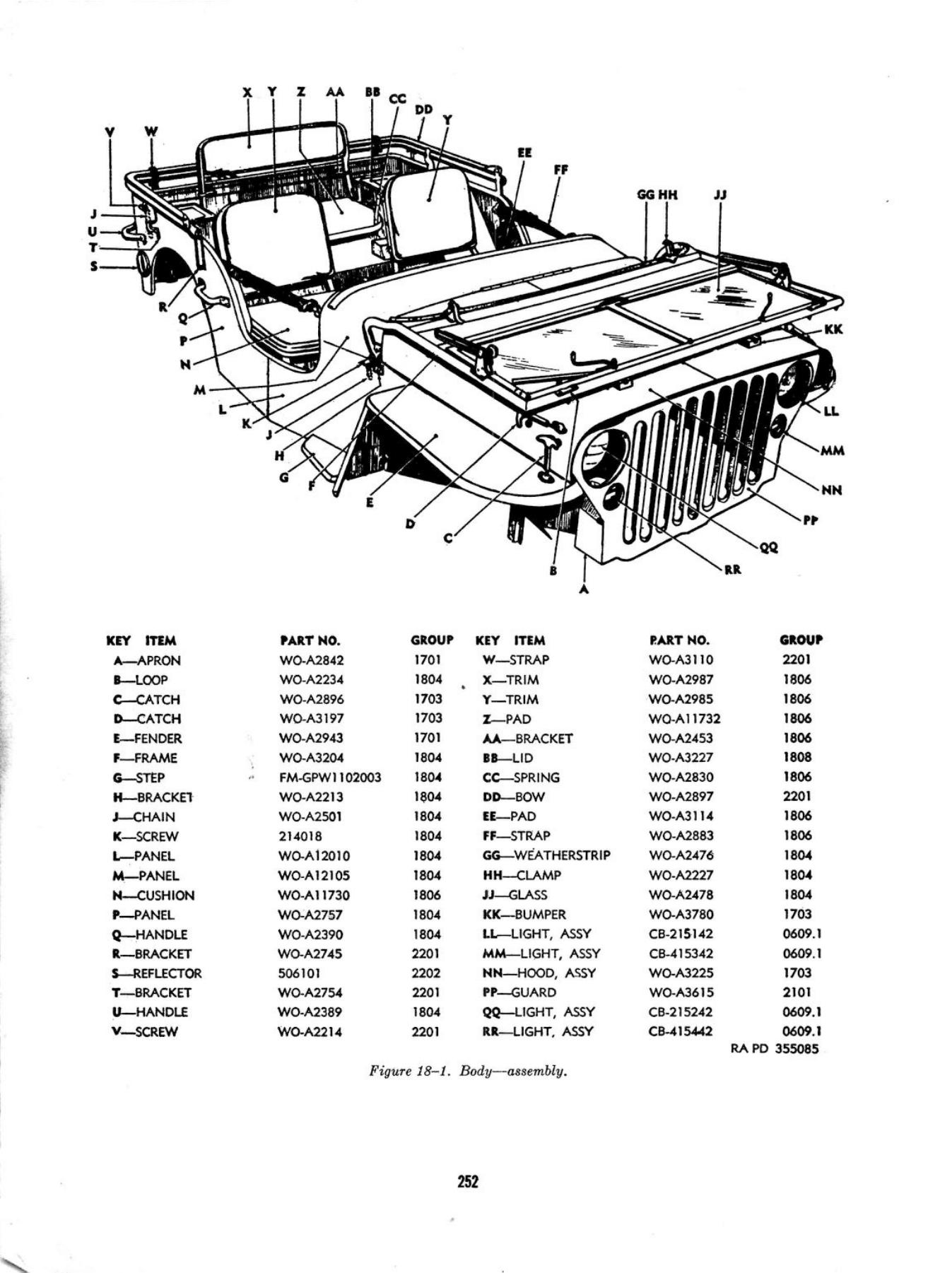

Body — assembly overview
MB · related parts
Find the part in the MB catalog
The number opens the correct field in the Spare Parts List. The position label is overwritten where it is reliably legible; "assembly" means the whole assembly or part without a separate letter designation. Name substitutions and differences are explained with the section.
| Pos. | Part / name in existing list | Designation from drawing / source | MB part number |
|---|---|---|---|
| GG | Windshield Frame to Cowl StripBody — assembly overview | WO-A2476Source · PDF 253 · Drawing ↑ | A2476 ↗miscellaneous · MB |
| JJ | Windshield GlassBody — assembly overview | WO-A2478Source · PDF 253 · Drawing ↑ | A2478 ↗miscellaneous · MB |
| LL | Headlamp Assembly Left 3Body — assembly overview | CB-215142Source · PDF 133 · Drawing ↑ | A 1304 ↗electrical · MB |
| MM | Parking Light LeftBody — assembly overview | CB-415342Source · PDF 134 · Drawing ↑ | A 1436 ↗electrical · MB |
| Headlamp Assembly Right 3Body — assembly overview | CB-215242Source · PDF 133 · Drawing ↑ | A 1305 ↗electrical · MB | |
| RR | Parking Light RightBody — assembly overview | CB-415442Source · PDF 134 · Drawing ↑ | A 1437 ↗electrical · MB |
| B | Horn ButtonFront compartment and instrument panel | RG-450054Source · PDF 135 · Drawing ↑ | A 634 ↗electrical · MB |
| Y | Clutch PedalFront compartment and instrument panel | WO-A405Source · PDF 254 · Drawing ↑ | A 405 ↗clutch · MB |
| Assembly | Windshield WeatherstripBody — assembly overviewThe number and description are confirmed in the original table. The picture shows the associated assembly; individual letter position is not reliably read. | WO-A2250Source · PDF 260 · Drawing ↑ | A2250 ↗miscellaneous · MB |
| Assembly | Speedometer ShaftFront compartment and instrument panelSpeedometer inner drive shaft (cable). The number and description are confirmed in the original table. The picture shows the associated assembly; individual letter position is not reliably read. | WO-A1344Source · PDF 280 · Drawing ↑Ford · GPW17262 | A 1344 ↗instrument · MB |
| Assembly | Speedometer TubeFront compartment and instrument panelSpeedometer cable outer tube/sheath. The number and description are confirmed in the original table. The picture shows the associated assembly; individual letter position is not reliably read. | WO-A1343Source · PDF 280 · Drawing ↑Ford · GPW17261A | A 1343 ↗instrument · MB |
The same PN in multiple places does not automatically validate each year, country or performance. The original data is preserved; note indicates the difference between the sources.

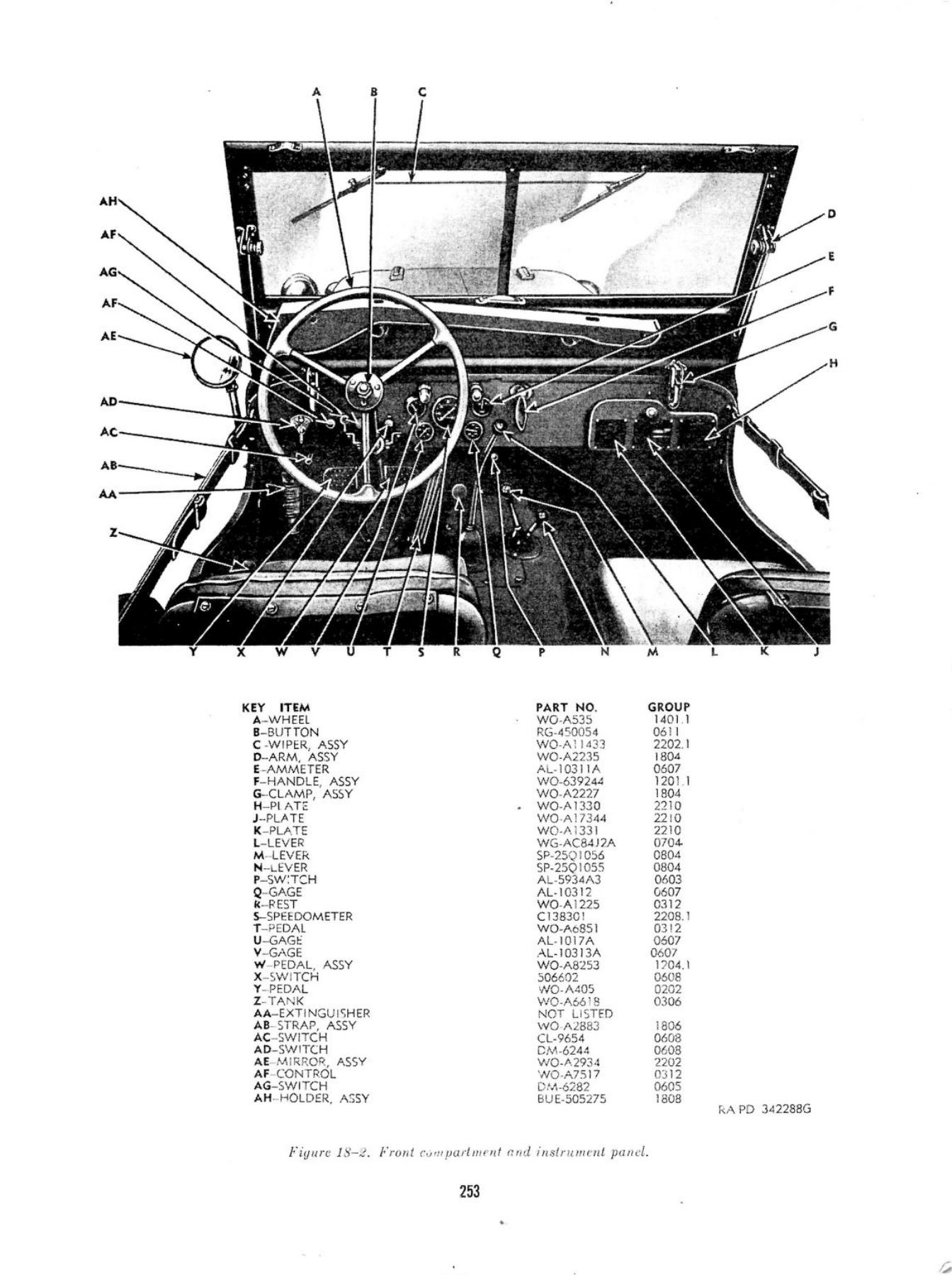

Front compartment and instrument panel
Original catalogs and service manual
ORD 9 SNL G-503 — Full Parts Catalog (PDF)
TM 10-1513 - Service Chapter for this assembly (PDF)
Page numbers with drawings indicate pages of the PDF file; printed numbering may vary. For the chassis, body and some equipment, an overview of the assembly is shown, according to the original catalog.

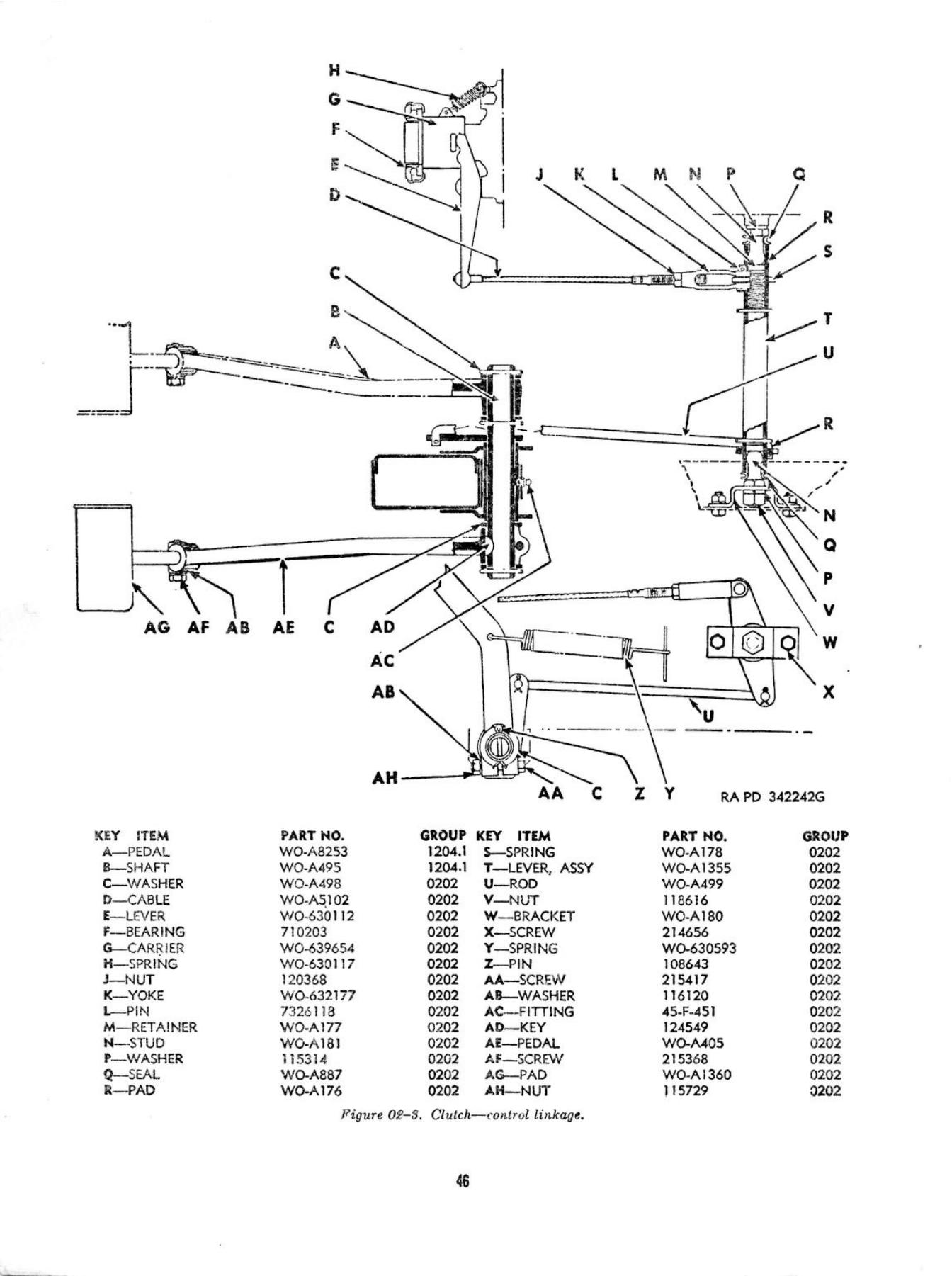

Original ORD · PDF 222
Original ORD · PDF 47
