Source: ORD 9 SNL G-503, 1949 release, Ford and Willys, ¼-ton 4×4. Marks and legends of the original catalog are preserved. The catalog also shows different versions; check the year and installed assembly before selecting a part. For CJ models, use their separate catalogs.

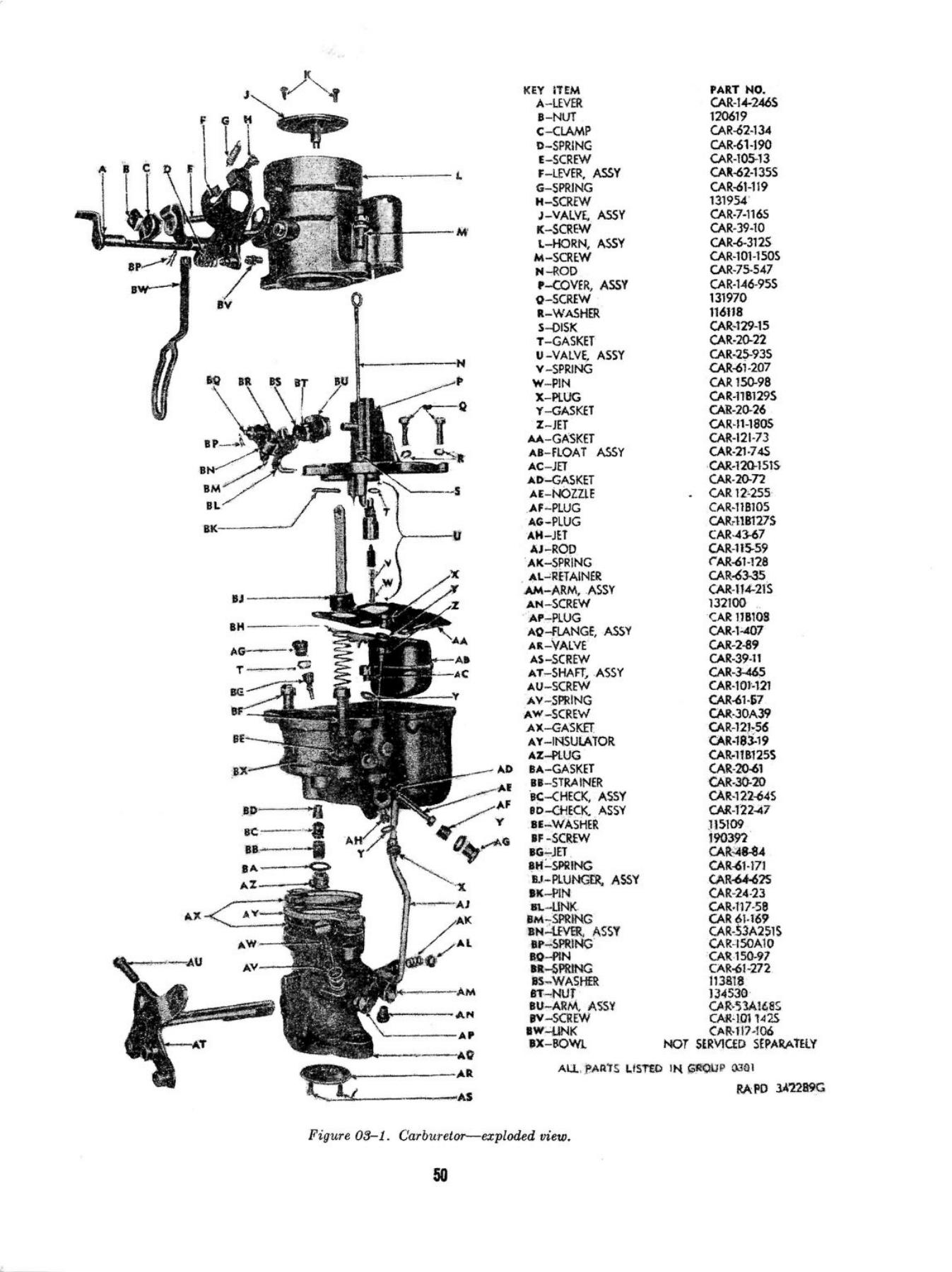

Carburettor — exploded view
MB · related parts
Find the part in the MB catalog
The number opens the correct field in the Spare Parts List. The position label is overwritten where it is reliably legible; "assembly" means the whole assembly or part without a separate letter designation. Name substitutions and differences are explained with the section.
| Pos. | Part / name in existing list | Designation from drawing / source | MB part number |
|---|---|---|---|
| U | Needle Valve & SeatCarburettor — exploded view | CAR-25-93SSource · PDF 62 · Drawing ↑ | 116174 ↗fuel system · MB |
| A | Fuel Tank CapTank and related parts | WO-A6333Source · PDF 54 · Drawing ↑ | A 6333 ↗fuel system · MB |
| G | Fuel Tank GaugeTank and related parts | WO-A1292Source · PDF 54 · Drawing ↑ | A 1292 ↗fuel system · MB |
| Assembly | Air Cleaner Hose to FillerAir cleanerThe number and description are confirmed in the original table. The picture shows the associated assembly; individual letter position is not reliably read. | WO-A6918Source · PDF 66 · Drawing ↑Ford · GPW6771 | A 6918 ↗fuel system · MB |
| Assembly | Fuel TankTank and related partsThe number and description are confirmed in the original table. The picture shows the associated assembly; individual letter position is not reliably read. | WO-A15507Source · PDF 69 · Drawing ↑Ford · GPW9002C | A 15507 ↗fuel system · MB |
| Assembly | Flexible Tube ConnectionTank and related partsThe number and description are confirmed in the original table. The picture shows the associated assembly; individual letter position is not reliably read. | WO-A1325Source · PDF 68 · Drawing ↑Ford · GPW9288 | A 1325 ↗fuel system · MB |
The same PN in multiple places does not automatically validate each year, country or performance. The original data is preserved; note indicates the difference between the sources.

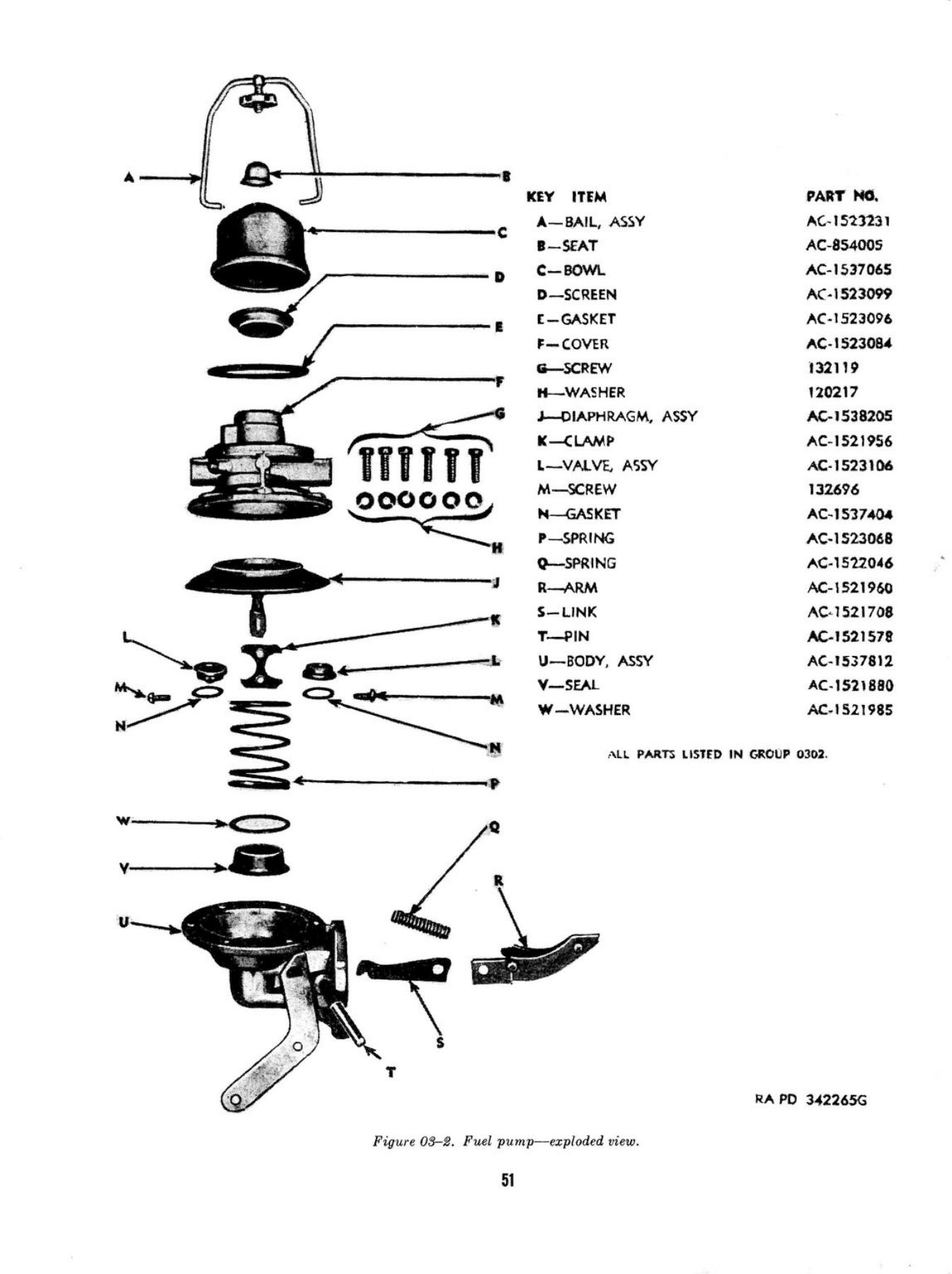

Fuel pump

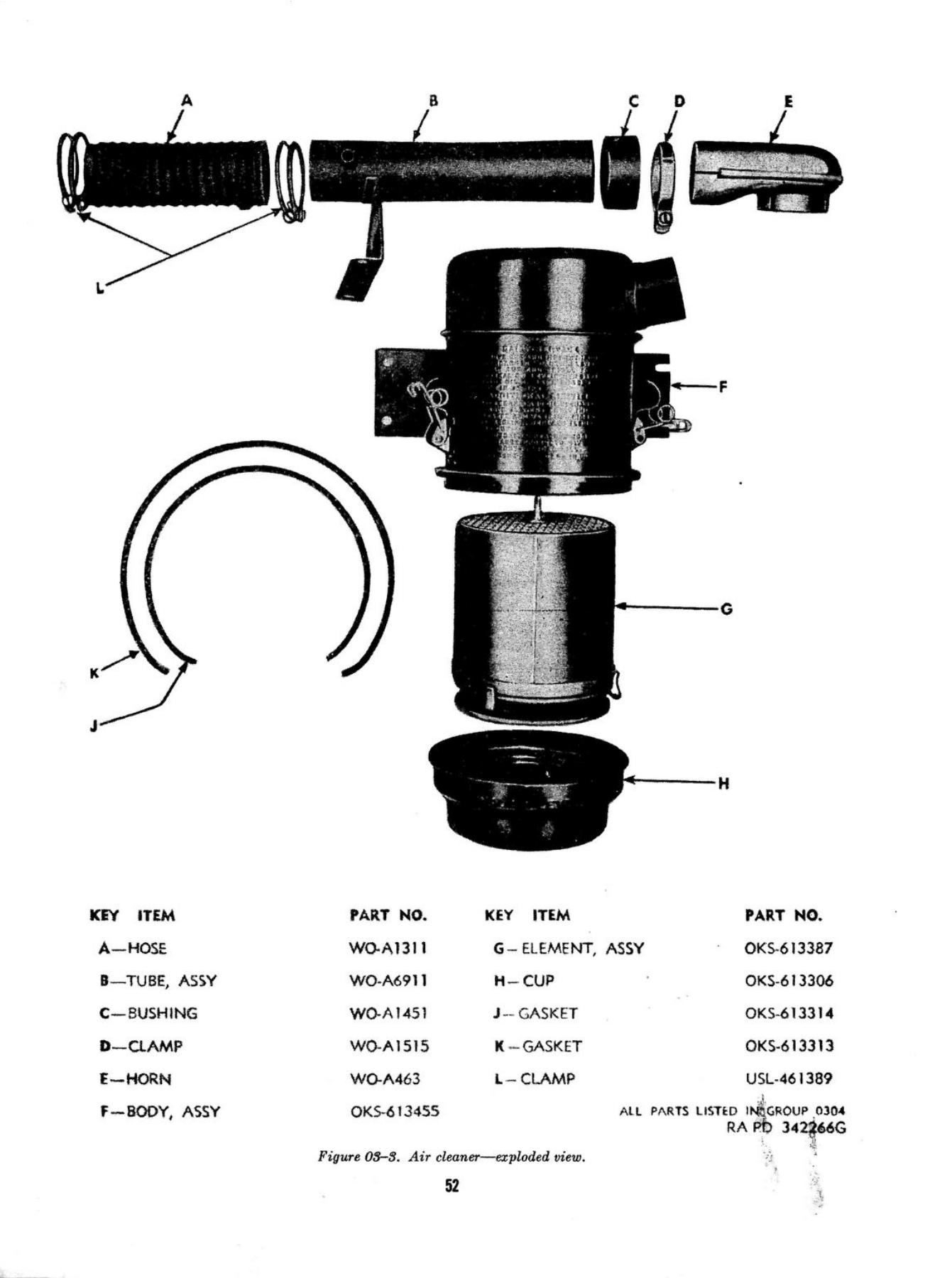

Air cleaner

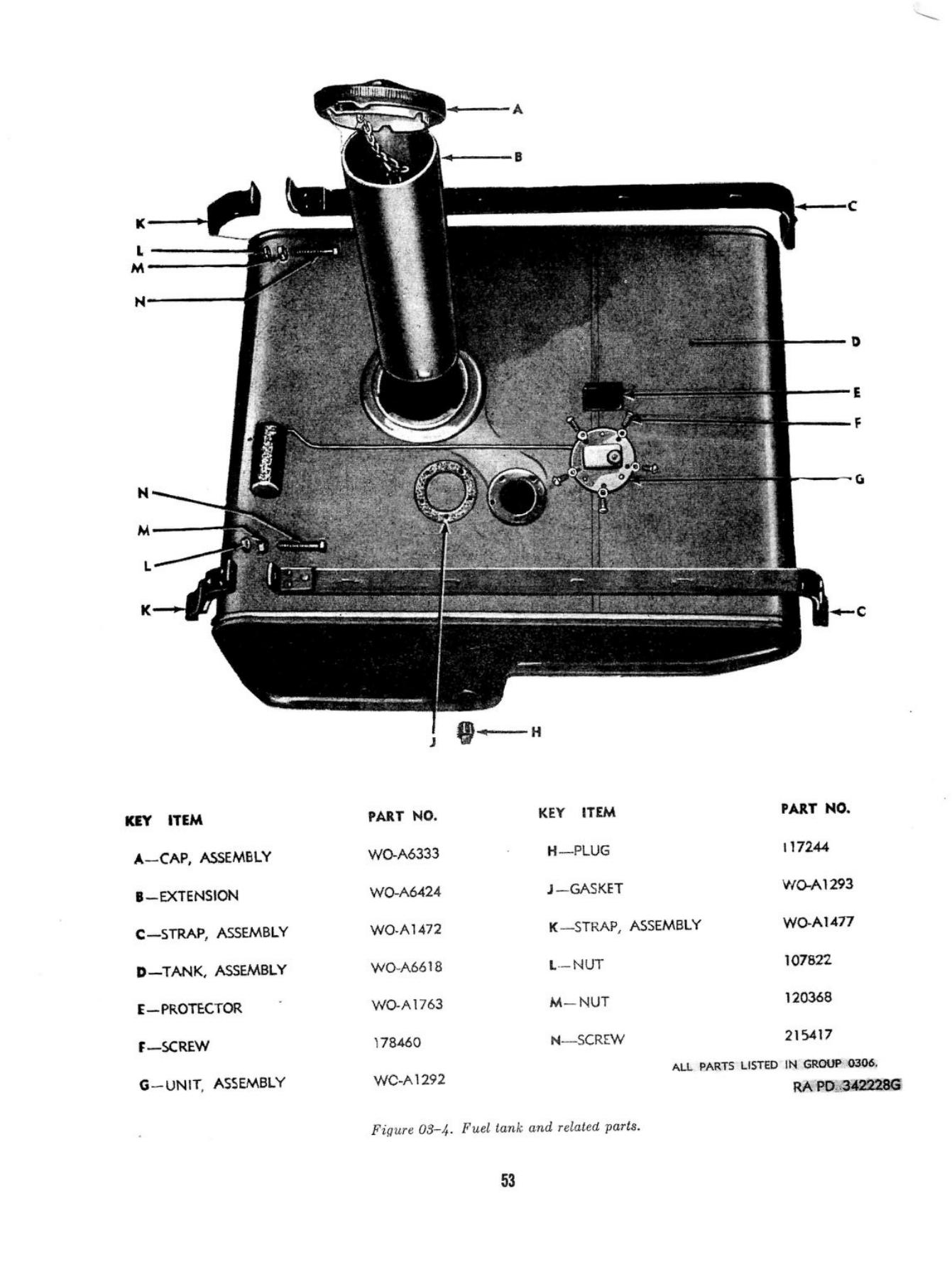

Tank and related parts

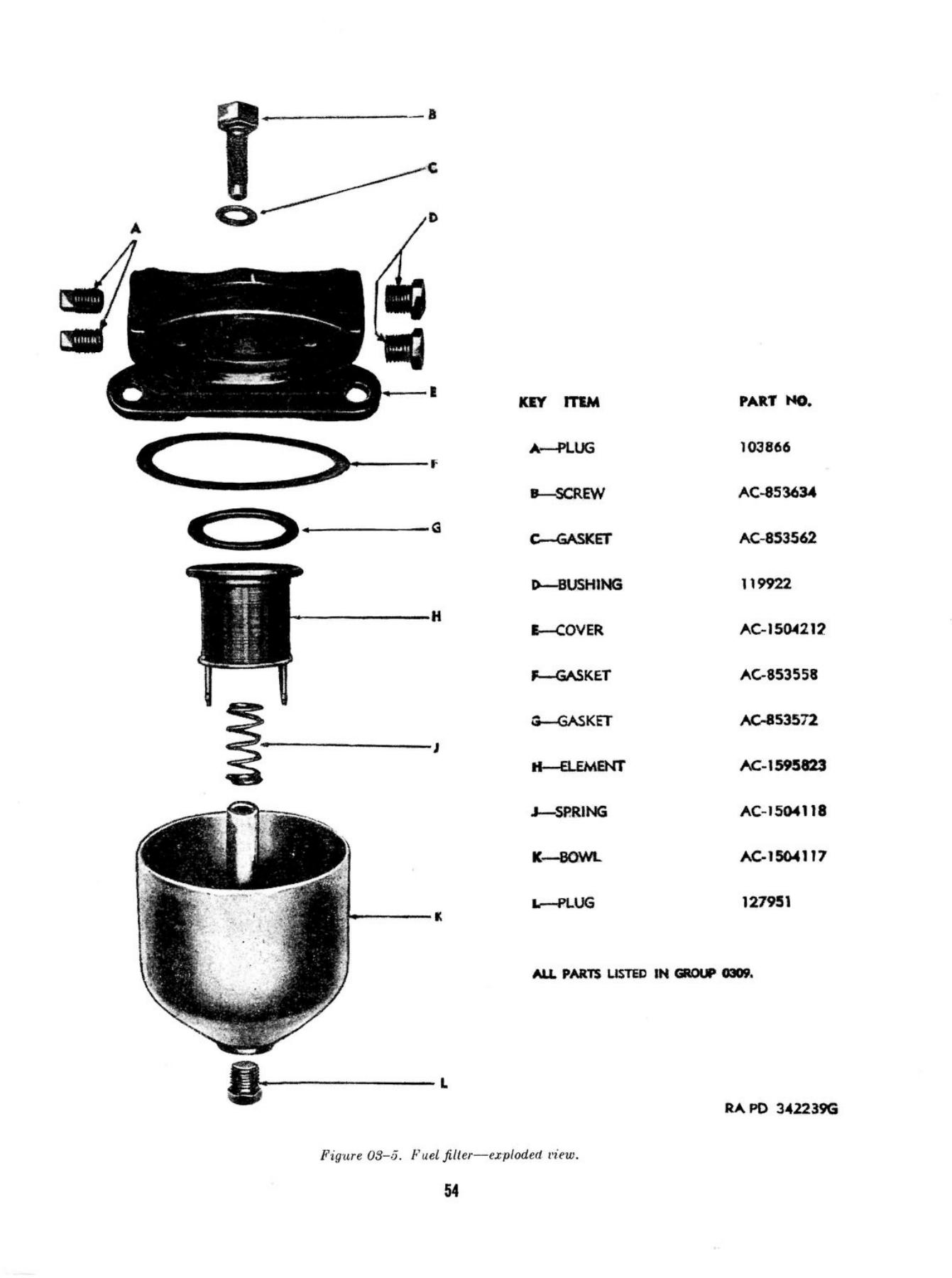

Fuel filter

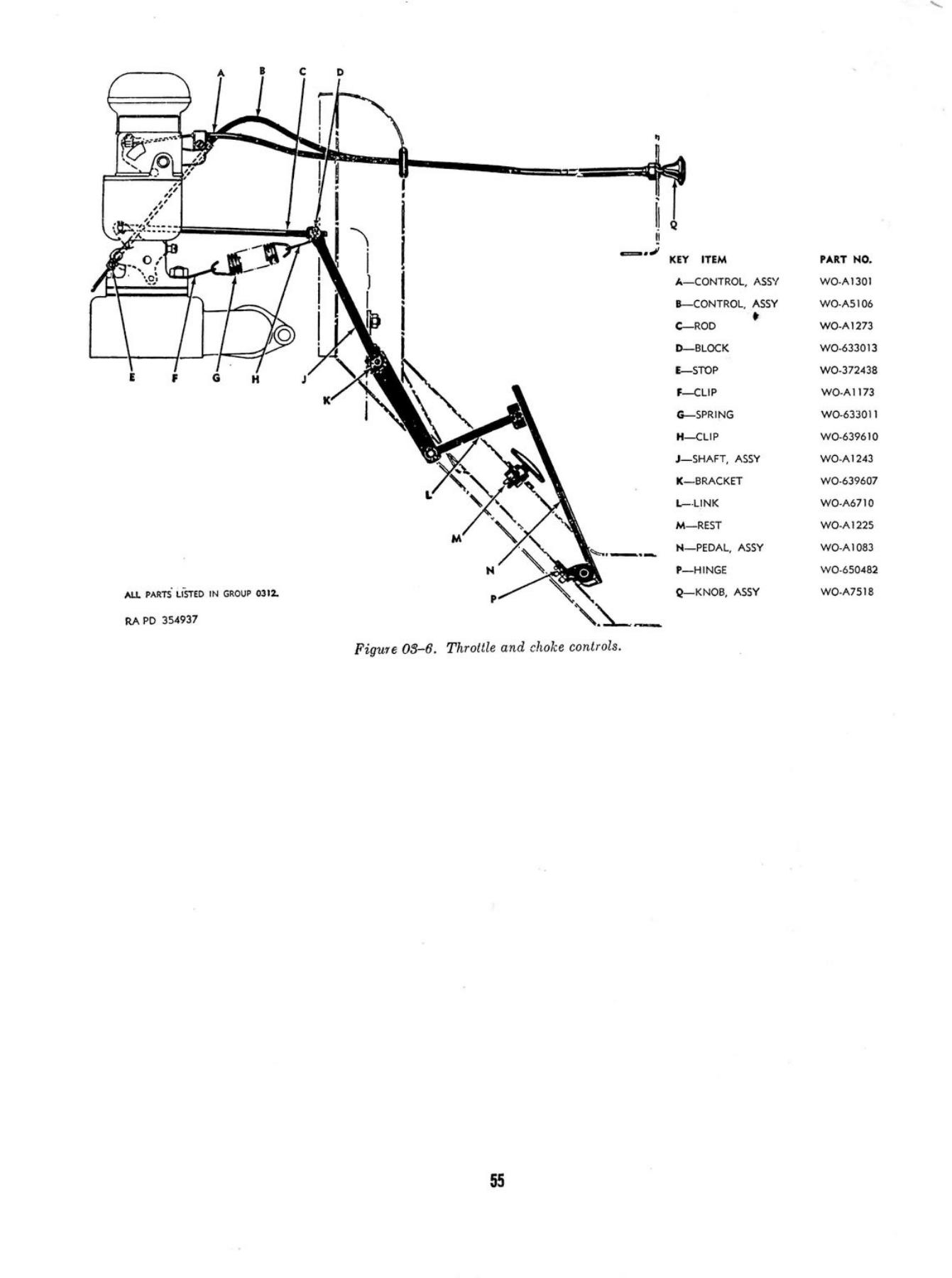

Throttle and throttle controls
Original catalogs and service manual
ORD 9 SNL G-503 — Full Parts Catalog (PDF)
TM 10-1513 - Service Chapter for this assembly (PDF)
Page numbers with drawings indicate pages of the PDF file; printed numbering may vary. For the chassis, body and some equipment, an overview of the assembly is shown, according to the original catalog.
