Source: ORD 9 SNL G-503, 1949 release, Ford and Willys, ¼-ton 4×4. Marks and legends of the original catalog are preserved. The catalog also shows different versions; check the year and installed assembly before selecting a part. For CJ models, use their separate catalogs.

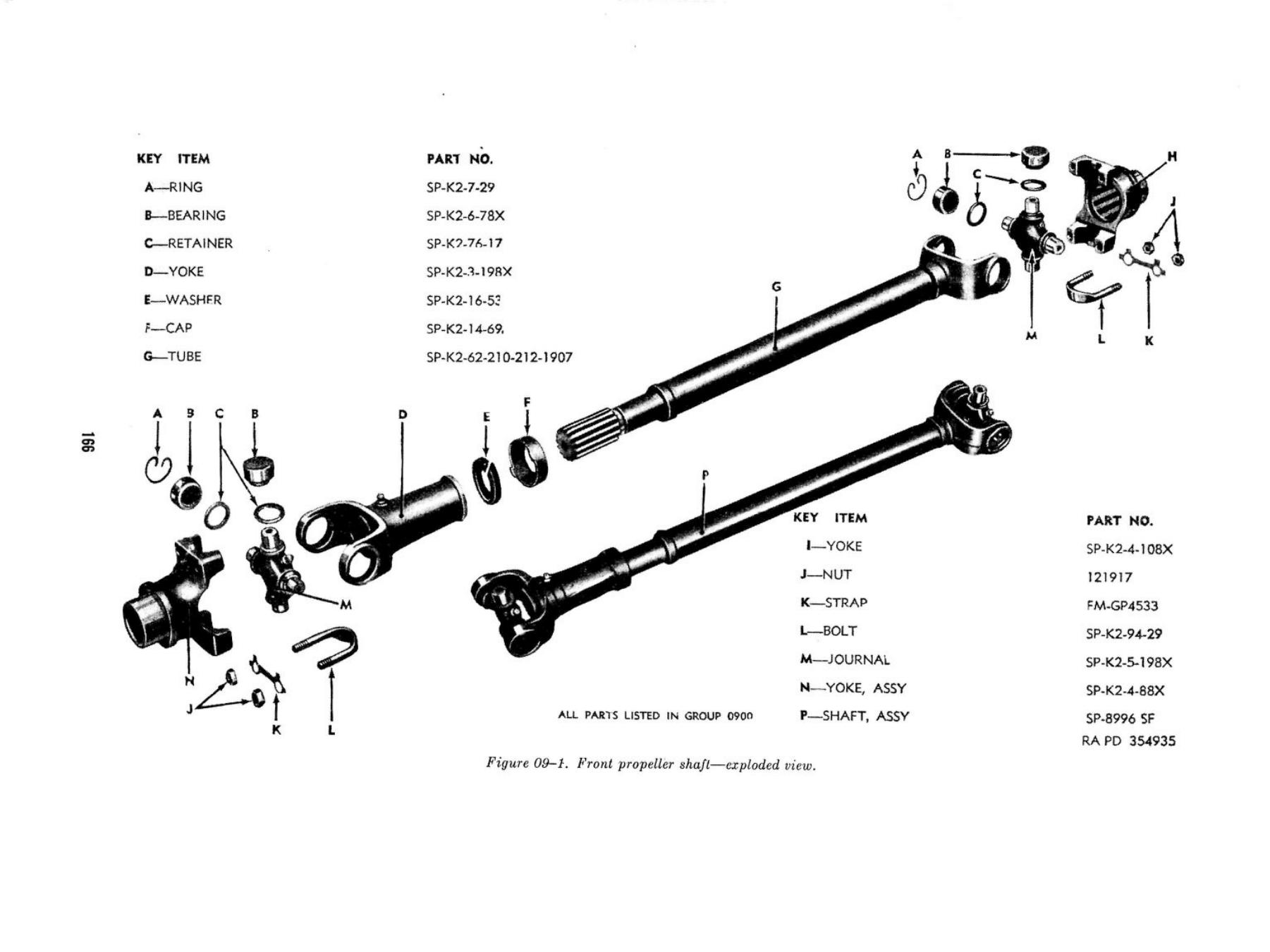

Prednje propeller shaft
MB · related parts
Find the part in the MB catalog
The number opens the correct field in the Spare Parts List. The position label is overwritten where it is reliably legible; "assembly" means the whole assembly or part without a separate letter designation. Name substitutions and differences are explained with the section.
| Pos. | Part / name in existing list | Designation from drawing / source | MB part number |
|---|---|---|---|
| G | Propeller Shaft Front Tube Spicer 3 SpeedPrednje propeller shaft | SP-K2-62-210-212-1907Source · PDF 170 · Drawing ↑ | A1428 ↗propeller shaft · MB |
| — | Universal Joint End YokePrednje propeller shaft | SP-K2-4-108XSource · PDF 170 · Drawing ↑ | A1445 ↗front axle · MB |
| — | Propeller Shaft Assy Front Spicer 3 SpeedPrednje propeller shaft | SP-8996 SFSource · PDF 169 · Drawing ↑ | A1326 ↗propeller shaft · MB |
| G | Propeller Shaft Rear Tube Spicer 3 SpeedRear propeller shaft | SP-K2-62-210-212-1718Source · PDF 170 · Drawing ↑ | A1429 ↗propeller shaft · MB |
| — | Universal Joint End YokeRear propeller shaft | SP-K2-4-108XSource · PDF 170 · Drawing ↑ | A1445 ↗front axle · MB |
| — | Propeller Shaft Assy Rear Spicer 3 SpeedRear propeller shaft | SP-8997SFSource · PDF 170 · Drawing ↑ | A1327 ↗propeller shaft · MB |
The same PN in multiple places does not automatically validate each year, country or performance. The original data is preserved; note indicates the difference between the sources.

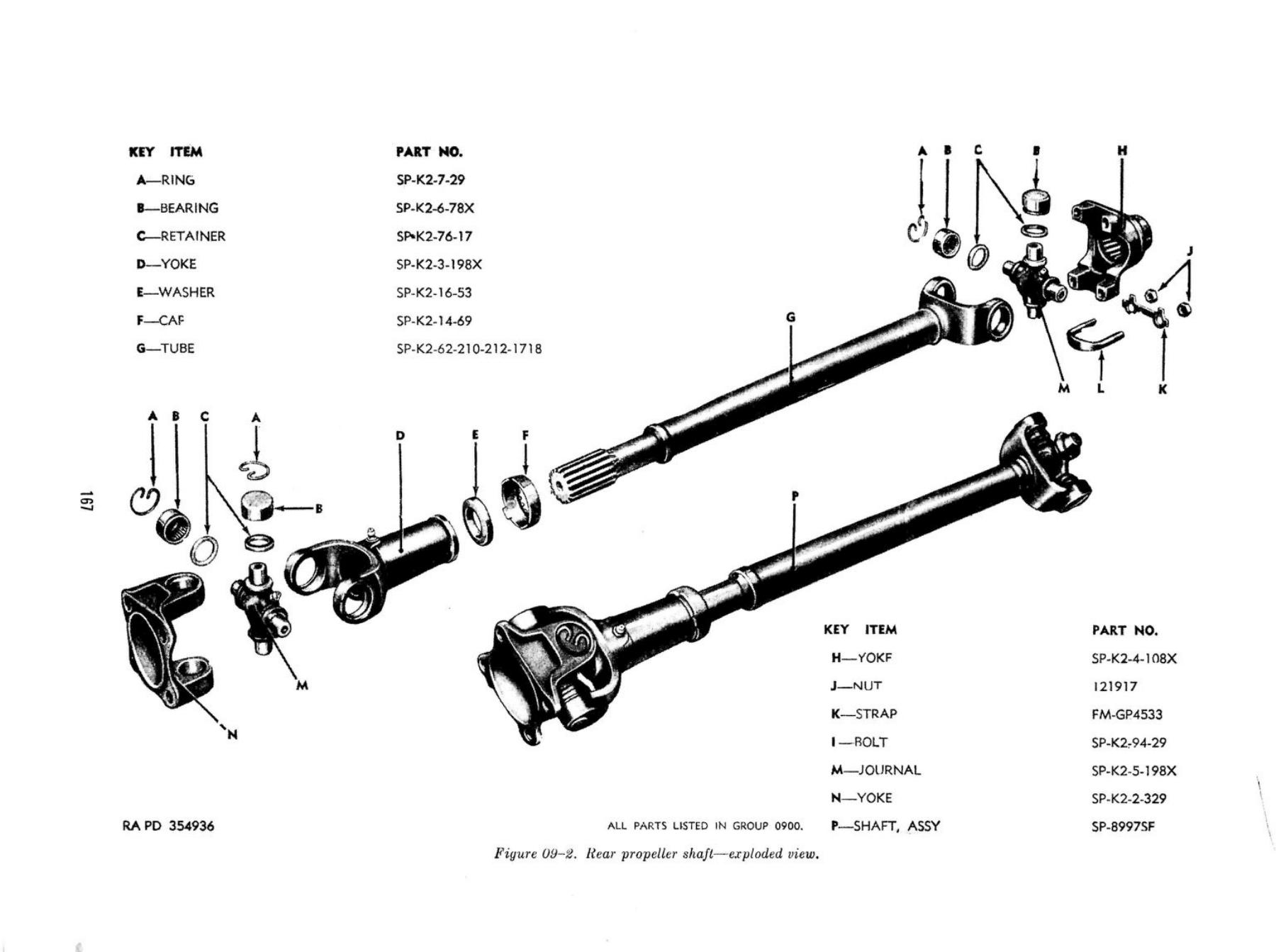

Rear propeller shaft
Original catalogs and service manual
ORD 9 SNL G-503 — Full Parts Catalog (PDF)
TM 10-1513 - Service Chapter for this assembly (PDF)
Page numbers with drawings indicate pages of the PDF file; printed numbering may vary. For the chassis, body and some equipment, an overview of the assembly is shown, according to the original catalog.
