Source: ORD 9 SNL G-503, 1949 release, Ford and Willys, ¼-ton 4×4. Marks and legends of the original catalog are preserved. The catalog also shows different versions; check the year and installed assembly before selecting a part. For CJ models, use their separate catalogs.

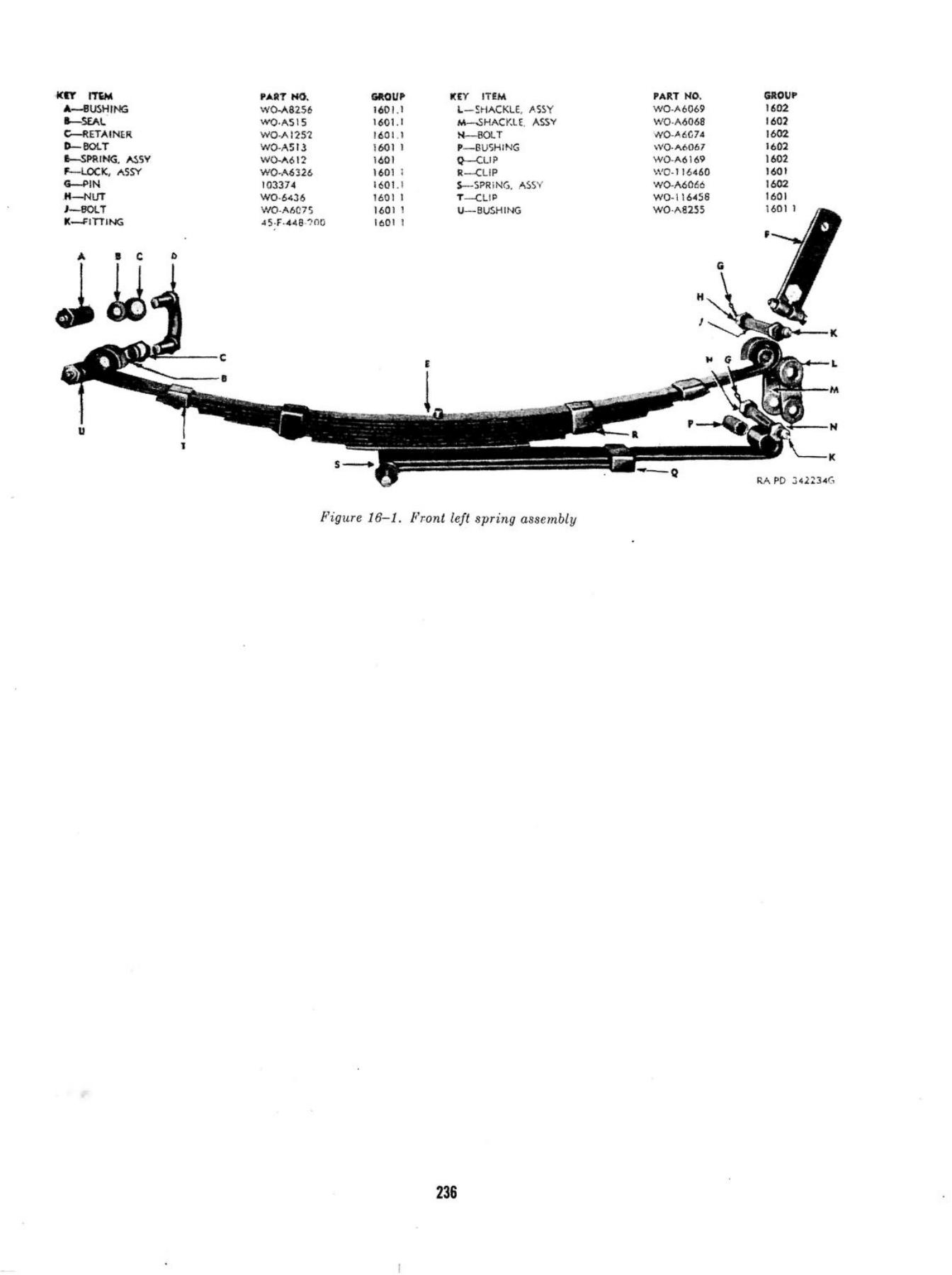

Leaf spring and attachments
MB · related parts
Find the part in the MB catalog
The number opens the correct field in the Spare Parts List. The position label is overwritten where it is reliably legible; "assembly" means the whole assembly or part without a separate letter designation. Name substitutions and differences are explained with the section.
| Pos. | Part / name in existing list | Designation from drawing / source | MB part number |
|---|---|---|---|
| F | Spring Shackle BracketFront Suspension — Layout | WO-A544Source · PDF 238 · Drawing ↑ | A544 ↗chassis · MB |
| N | Spring Pivot BracketFront Suspension — Layout | WO-A500Source · PDF 238 · Drawing ↑ | A500 ↗chassis · MB |
| B | Rear Spring AssemblyRear Suspension — Layout | WO-A614Source · PDF 239 · Drawing ↑ | A614 ↗spring · MB |
| D | Spring Clip ShortRear Suspension — Layout | WO-A575Source · PDF 239 · Drawing ↑ | A575 ↗spring · MB |
| Assembly | Rear Spring Center BoltLeaf spring and attachmentsThe number and description are confirmed in the original table. The picture shows the associated assembly; individual letter position is not reliably read. | WO-116716Source · PDF 242 · Drawing ↑Ford · GPW5333B | 116716 ↗spring · MB |
| Assembly | Rear Spring Eye BushingLeaf spring and attachmentsThe number and description are confirmed in the original table. The picture shows the associated assembly; individual letter position is not reliably read. | WO-359039Source · PDF 242 · Drawing ↑Ford · GPW5781 | 359039 ↗spring · MB |
| Assembly | Spring Clip Hex NutLeaf spring and attachmentsThe number and description are confirmed in the original table. The picture shows the associated assembly; individual letter position is not reliably read. | WO-339372Source · PDF 246 · Drawing ↑Ford · GPW5456 | 339372 ↗spring · MB |
| Assembly | Rear Spring Leaf #1Leaf spring and attachmentsThe number and description are confirmed in the original table. The picture shows the associated assembly; individual letter position is not reliably read. | WO-A614-1Source · PDF 244 · Drawing ↑Ford · GPW5564 | A614-1 ↗spring · MB |
| Assembly | Rear Spring Leaf #2Leaf spring and attachmentsSecond rear spring leaf, WO-A614-2; not to be confused with other entry A6142 in electrical equipment. The number and description are confirmed in the original table. The picture shows the associated assembly; individual letter position is not reliably read. | WO-A614-2Source · PDF 244 · Drawing ↑Ford · GPW5565 | A614-2 ↗spring · MB |
| Assembly | Spring Clip LongLeaf spring and attachmentsThe number and description are confirmed in the original table. The picture shows the associated assembly; individual letter position is not reliably read. | WO-A8578Source · PDF 245 · Drawing ↑Ford · GPW5705C | A8578 ↗spring · MB |
The same PN in multiple places does not automatically validate each year, country or performance. The original data is preserved; note indicates the difference between the sources.

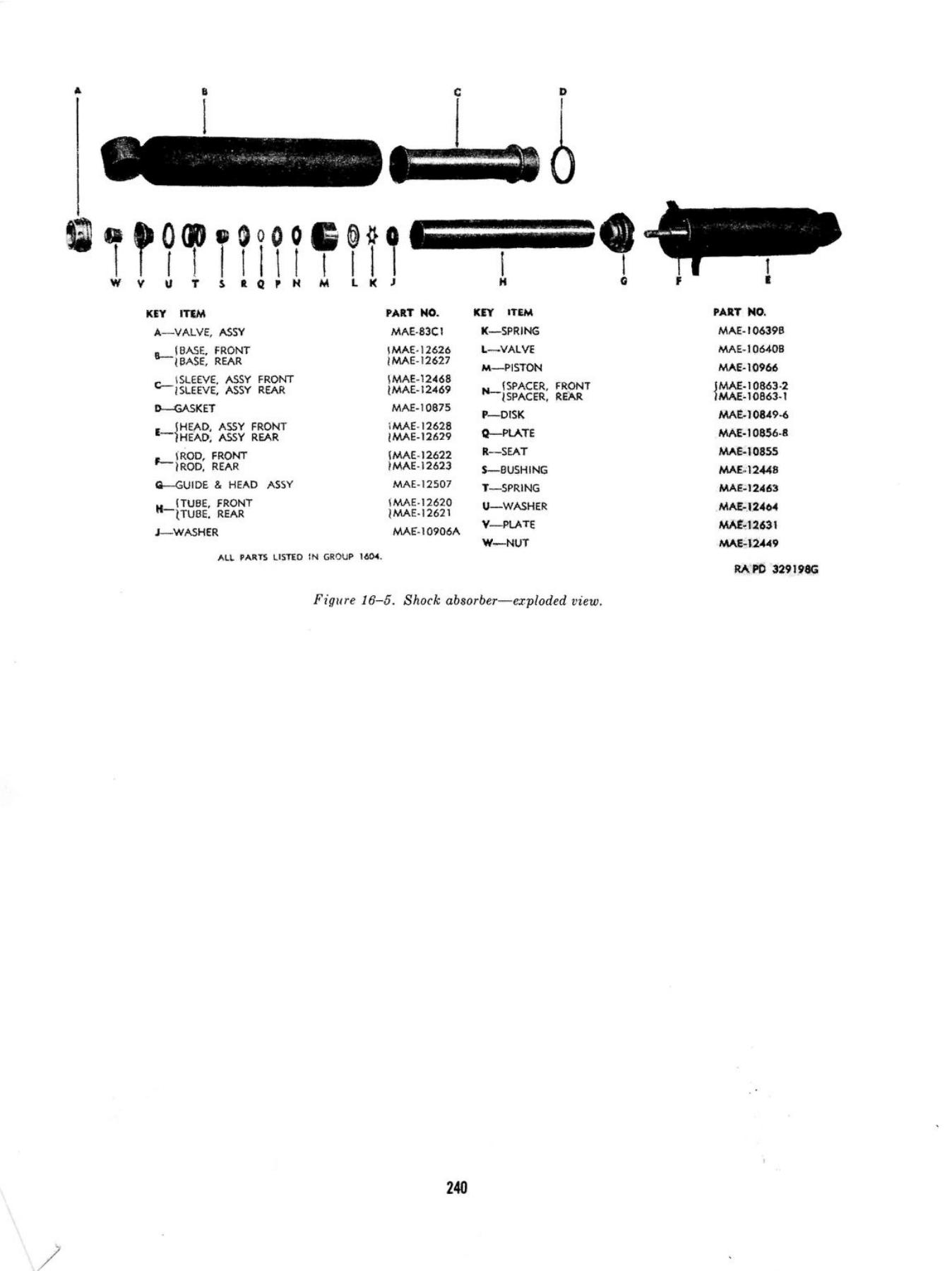

Shock absorber — exploded view
Front Suspension — Layout
Rear Suspension — Layout
Original catalogs and service manual
ORD 9 SNL G-503 — Full Parts Catalog (PDF)
TM 10-1513 - Service Chapter for this assembly (PDF)
Page numbers with drawings indicate pages of the PDF file; printed numbering may vary. For the chassis, body and some equipment, an overview of the assembly is shown, according to the original catalog.
