1
SPRING GROUP
 | The original artwork has not been verified | The original artwork has not been verified |  | The original artwork has not been verified | The original artwork has not been verified | |
|---|---|---|---|---|---|---|
| Front Spring Assembly | Front Spring Leaf #1 | Front Spring Leaf #2 | Front Spring Center Bolt | Spring Clip Long | Spring Clip Short | Front Spring Eye Bushing |
| 2 | 2 | 2 | 2 | As Req. | As Req. | As Req. |
| A612 | 926709-1 | 926709-2 | 116711 | A8289 | 644161 | 359039 |
| 926709 | 926709-1 | 926709-2 | 116711 | A8289 | A575 | 359039 |
| 908568 | 908559-1 | 908559-2 | 116716 | A574 | 909222 | |
| 801623 | 118521 | 118522 | 116711 | A8289 | A575 | |
| 916066 | 119898 | 120043 | 116716 | 808461 | 808460 | |
| 921107 | 807071-1 | 807071-2 | 116711 | 644418 | 644419 | 359039 |
| 647609 | 649514-1 | 649514-2 | 109201 | A8578 | A8578 | 641001 |
2
SPRING GROUP

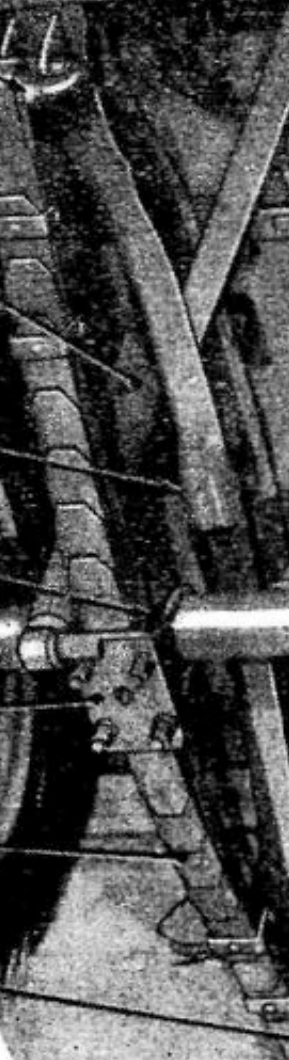

 MB · ORD 1949 · PDF 239 · B · rear spring, sheets in packageDisplay type or place in assembly. Side, measure and performance are determined by PN. | MB · ORD 1949 · PDF 239 · B · rear spring, sheets in packageDisplay type or place in assembly. Side, measure and performance are determined by PN. | MB · ORD 1949 · PDF 239 · B · rear spring, sheets in packageDisplay type or place in assembly. Side, measure and performance are determined by PN. |  MB · ORD 1949 · PDF 239 · Central package attachment |  MB · ORD 1949 · PDF 239 · Long link in fastening assembly |  MB · ORD 1949 · PDF 239 · D · short link in assembly |  MB · ORD 1949 · PDF 239 · Bushing in rear spring eye | |
|---|---|---|---|---|---|---|---|
| Vehicle Model | Rear Spring Assembly | Rear Spring Leaf #1 | Rear Spring Leaf #2 | Rear Spring Center Bolt | Spring Clip Long | Spring Clip Short | Rear Spring Eye Bushing |
| No. of Units Per Vehicle | 2 | 2 | 2 | 2 | As Req. | As Req. | As Req. |
| MB | A614MB · B | A614-1MB · AssemblyFord · GPW5564 | A614-2MB · AssemblyFord · GPW5565 | 116716MB · AssemblyFord · GPW5333B | A8578MB · AssemblyFord · GPW5705C | A575MB · D | 359039MB · AssemblyFord · GPW5781 |
| CJ2A | A614 | A614-1 | A614-2 | 116716 | 640933 | A575 | 359039 |
| CJ3A | A614 | A614-1 | A614-2 | 116716 | 640933 | A575 | 359039 |
| CJ3B | 916058 | A614-1 | A614-2 | 116716 | 640933 | 640933 | 359039 |
| CJ5 | 809270 | 120025 | 120026 | 120040 | 917083 | 917083 | |
| CJ6 | 809270 | 120025 | 120026 | 120040 | 917083 | 917083 | |
| M38 | 801658 | 118531 | 118532 | 116716 | 642987 | 642987 | |
| M38A1 | 809270 | 120025 | 120026 | 120040 | 808462 | 808462 | |
| 463 | 647609 | 647609-1 | 647609-2 | 118136 | A575 | A575 | |
| 4X463 | 647609 | 647609-1 | 647609-2 | 118136 | 640933 | 640933 | |
| 4WD | 919692 | 645645-1 | 645645-2 | 648315 | 645671 | 645671 | 645916 |
| FC150 | 916090 | 915553-1 | 915553-2 | 915501 | 642987 | 642987 | 912593 |
| FC170 | 911565 | 916076-1 | 916076-2 | 912679 | 912618 | 912618 | 912593 |
3
SPRING GROUP
 | The original artwork has not been verified | The original artwork has not been verified |  | The original artwork has not been verified | The original artwork has not been verified | |
|---|---|---|---|---|---|---|
| Silent Block Bearing | Front Spring Pivot Bolt Kit | Front Spring Pivot Bolt | Front Spring Wages & Shaft Left | Front Spring Wages & Shaft Right | Rear Spring Wages & Shaft Left | Rear Spring Wages & Shaft Right |
| As Req. | 1 | 2 | 1 | 1 | 1 | 1 |
| A572 | A568 | A571 | A572 | |||
| 921055 | A572 | A568 | 640932 | 640938 | ||
| 921055 | A572 | A568 | 640932 | 640938 | ||
| 921055 | 800821 | 800823 | 801735 | 801736 | ||
| 921055 | 800821 | 800823 | 801735 | 801736 | ||
| 921055 | 909893 | 909894 | 909893 | 909894 | ||
| 642150 | 642151 | 642947 | 642948 | |||
| 642150 | 642151 | 640932 | 640938 | |||
| 921055 | 642150 | 642151 | 640932 | 640938 | ||
| 921055 | 642150 | 642151 | 640932 | 640938 | ||
| 921055 | 642150 | 642151 | 804693 | 804694 |
4
SPRING GROUP
 |  | The original artwork has not been verified | The original artwork has not been verified | The original artwork has not been verified | The original artwork has not been verified | |
|---|---|---|---|---|---|---|
| Shackle Kit L Thread | Shackle Kit R Thread | Shackle Silent Kit Unthreaded | Shackle Kit Closed 1 Vehicle | Shackle Kit Closed 1 Spring | Closed Shackle Bolt | Closed Shackle Bushing |
| 2 or 4 | 4 | 4 | 1 | As Req. | 4 | 8 |
| 802061 | 802062 | |||||
| 802061 | 802062 | 916646 | 928764 | 810579 | 809807 | |
| 802061 | 802062 | 916646 | 120753 | 928764 | 810579 | 809807 |
| 802061 | 802062 | 120753 | 928764 | 810579 | 809807 | |
| 802061 | 802062 | 916646 |
5
SPRING GROUP
 MB · ORD 1949 · PDF 239 · Link nuts | The original artwork has not been verified | The original artwork has not been verified | The original artwork has not been verified | The original artwork has not been verified | The original artwork has not been verified | The original artwork has not been verified | |
|---|---|---|---|---|---|---|---|
| Vehicle Model | Spring Clip Hex Nut | Hanger Bracket Bolt | Spring Shackle U Bolt | Shackle Rubber Bushing | Shackle & Pivot Pin Kit | Rear Spring Shackle | Rear Spring Shackle Bushing |
| No. of Units Per Vehicle | 16 | 2 | 2 | As Req. | 2 | 2 | 2 |
| MB | 339372MB · AssemblyFord · GPW5456 | ||||||
| CJ2A | 339372 | ||||||
| CJ3A | 339372 | ||||||
| CJ3B | 339372 | ||||||
| CJ5 | 339372 | ||||||
| CJ6 | 339372 | ||||||
| M38 | 339372 | ||||||
| M38A1 | 339372 | ||||||
| 463 | 339372 | 641297 | 804466 | 646085 | |||
| 4X463 | 339372 | 643763 | 641297 | 804466 | |||
| 473 | 339372 | 641297 | 804466 | 646085 | |||
| 4X473 | 339372 | 643763 | 641297 | 804466 | |||
| 475 | 339372 | 804466 | |||||
| 2X475 | 339372 | 643763 | 804466 | ||||
| 4X475 | 339372 | 643763 | 804466 | ||||
| 6-226-2X4 | 339372 | 643763 | 804466 | ||||
| 6-226-4X4 | 339372 | 643763 | 804466 | ||||
| 4WD | 339372 | 643763 | 646729 | 643603 | |||
| 473-4WD | 339372 | 643763 | 646729 | 643603 | |||
| 475-4WD | 339372 | 643763 | 646729 | ||||
| 6-226-4WD | 339372 | 643763 | 646729 | ||||
| FC150 | 339372 | ||||||
| FC170 | 339372 | 912671 |
6
SPRING GROUP
 |  |  |  |  | |
|---|---|---|---|---|---|
| Shock Absorber Front | Shock Absorber Rear | Shock Absorber Bushing | Mounting Pin Washer | Front Bumper Bar | Rear Bumper Bar |
| 2 | 2 | 16 | 8 | 1 | 1 |
| 917301 | 917302 | 637936 | A1117 | A1157 | |
| 910144 | 910145 | 637936 | 641916 | 640713 | 910080 |
| 909698 | 909699 | 637936 | 906781 | 910080 | |
| 806500 | 806292 | 637936 | 808969 | 800078 | |
| 804850 | 804851 | 637936 | 808969 | 800078 | |
| 910142 | 910259 | 637936 | 641916 | 645119 | 910080 |
| 806496 | 806497 | 637936 | 641916 | 643934 | 641203 |
| 909679 | 909680 | 637936 | 641916 | 643934 | 641203 |
| 909569 | 909570 | 637936 | 641916 | 643934 | 641203 |
| 910261 | 914179 | 637936 | 641916 | 812042 | |
| 911352 | 911354 | 637936 | 912960 | 910080 | |
| 921906 | 921907 | 637936 | 912960 | 912960 |
