Source: ORD 9 SNL G-503, 1949 release, Ford and Willys, ¼-ton 4×4. Marks and legends of the original catalog are preserved. The catalog also shows different versions; check the year and installed assembly before selecting a part. For CJ models, use their separate catalogs.
transfer case — exploded view
MB · related parts
Find the part in the MB catalog
The number opens the correct field in the Spare Parts List. The position label is overwritten where it is reliably legible; "assembly" means the whole assembly or part without a separate letter designation. Name substitutions and differences are explained with the section.
| Pos. | Part / name in existing list | Designation from drawing / source | MB part number |
|---|---|---|---|
| AJ | Universal Joint Yoke Shieldtransfer case — continued and markings | SP-5962XSource · PDF 164 · Drawing ↑ | A 1111 ↗transfer case · MB |
| AK | Emergency Brake Drumtransfer case — continued and markings | SP-20B62Source · PDF 204 · Drawing ↑ | A1002 ↗brake system · MB |
| C | Output Clutch Shaft Geartransfer case — continued and markings | SP-18-466-1Source · PDF 163 · Drawing ↑ | A 992 ↗transfer case · MB |
| D | Front Drive Shift Forktransfer case — continued and markings | SP-18-66-7Source · PDF 165 · Drawing ↑ | A 960 ↗transfer case · MB |
| E | Shift Fork Set Screwtransfer case — continued and markings | SP-7450Source · PDF 165 · Drawing ↑ | A 963 ↗transfer case · MB |
| AN | Transfer Case Onlytransfer case — continued and markings | SP-18-15-9Source · PDF 160 · Drawing ↑ | A 1503 ↗transfer case · MB |
| F | Output Shaft Pilot Bushingtransfer case — continued and markings | SP-18-24-1Source · PDF 162 · Drawing ↑ | A 987 ↗transfer case · MB |
| AP | Intermediate Shaft Lock Platetransfer case — continued and markings | SP-31-246-2Source · PDF 162 · Drawing ↑ | A 1001 ↗transfer case · MB |
| AQ | Under Drive Shift Forktransfer case — continued and markings | SP-18-66-1Source · PDF 165 · Drawing ↑ | A 959 ↗transfer case · MB |
| H | Output Clutch Shaft Snap Ringtransfer case — continued and markings | SP-22-381-19Source · PDF 163 · Drawing ↑ | A 976 ↗transfer case · MB |
| K | Under Drive Shift Rodtransfer case — continued and markings | SP-18-67-5Source · PDF 166 · Drawing ↑ | A 1504 ↗transfer case · MB |
| AT | Mainshaft Nuttransfer case — continued and markings | WG-T9-50PSource · PDF 162 · Drawing ↑ | A 520 ↗transmission · MB |
| L | Front Drive Shift Rodtransfer case — continued and markings | SP-18-67-2Source · PDF 166 · Drawing ↑ | A 962 ↗transfer case · MB |
| M | Shift Rod Interlocktransfer case — continued and markings | SP-18-12-1Source · PDF 165 · Drawing ↑ | A 965 ↗transfer case · MB |
| — | Mainshaft Adapter 3 Speedtransfer case — continued and markings | WG-T84H137Source · PDF 152 · Drawing ↑ | A 410 ↗transmission · MB |
| P | Shift Rod Poppet Plugtransfer case — continued and markings | SP-854DSource · PDF 166 · Drawing ↑ | A 967 ↗transfer case · MB |
| — | Intermediate Gear Thrust Washertransfer case — continued and markings | SP-690WSource · PDF 162 · Drawing ↑ | A 1000 ↗transfer case · MB |
| Q | Shift Rod Poppet Springtransfer case — continued and markings | SP-22-72-5Source · PDF 166 · Drawing ↑ | A 966 ↗transfer case · MB |
| AZ | Output Shaft Thrust Washertransfer case — continued and markings | SP-710WSource · PDF 164 · Drawing ↑ | A 990 ↗transfer case · MB |
| S | Transfer Case Breathertransfer case — continued and markings | SP-5951XSource · PDF 166 · Drawing ↑ | A 934 ↗transfer case · MB |
| BA | Output Shaft Geartransfer case — continued and markings | SP-18-8-1Source · PDF 163 · Drawing ↑ | A 989 ↗transfer case · MB |
| BC | Intermediate Geartransfer case — continued and markings | SP-18-5-1Source · PDF 162 · Drawing ↑ | A 999 ↗transfer case · MB |
| BD | Intermediate Shafttransfer case — continued and markings | SP-18-187-1Source · PDF 162 · Drawing ↑ | A 998 ↗transfer case · MB |
| X | Shift Lever Springtransfer case — continued and markings | SP-97Q13Source · PDF 166 · Drawing ↑ | A 970 ↗transfer case · MB |
| Y | Shift Lever Pivot Pin Set Screwtransfer case — continued and markings | SP-433DSource · PDF 165 · Drawing ↑ | A 973 ↗transfer case · MB |
| Z | Shift Lever Pivot Pin 3 Speedtransfer case — continued and markings | SP-363SPSource · PDF 165 · Drawing ↑ | A 972 ↗transfer case · MB |
| BH | Sliding Output Shaft Geartransfer case — continued and markings | SP-18-8-2Source · PDF 163 · Drawing ↑ | A 988 ↗transfer case · MB |
| AF | Companion Flange Nuttransfer case — continued and markings | SP-124J.Source · PDF 163 · Drawing ↑ | A 980 ↗transfer case · MB |
| Assembly | Output Clutch Shaft Front Cap 3 Speedtransfer case — exploded viewThe number and description are confirmed in the original table. The picture shows the associated assembly; individual letter position is not reliably read. | WO-A956Source · PDF 161 · Drawing ↑ | A 956 ↗transfer case · MB |
| Assembly | Rear Companion Flangetransfer case — exploded viewRear flange for the variant with internal parking brake. The number and description are confirmed in the original table. The picture shows the associated assembly; individual letter position is not reliably read. | WO-116714Source · PDF 163 · Drawing ↑Ford · GPW4863 | 116714 ↗transfer case · MB |
| Assembly | Universal Joint End Yoketransfer case — exploded viewFront cardan fork to transfer case, with protection. The number and description are confirmed in the original table. The picture shows the associated assembly; individual letter position is not reliably read. | WO-A1106Source · PDF 170 · Drawing ↑ | A 1106 ↗transfer case · MB |
| Assembly | Output Shaft Cuptransfer case — exploded viewThe number and description are confirmed in the original table. The picture shows the associated assembly; individual letter position is not reliably read. | WO-52883Source · PDF 162 · Drawing ↑ | 52883 ↗transfer case · MB |
| Assembly | Transfer Case Support Bolttransfer case — exploded viewThe number and description are confirmed in the original table. The picture shows the associated assembly; individual letter position is not reliably read. | WO-A147Source · PDF 159 · Drawing ↑ | A 147 ↗transfer case · MB |
| Assembly | Transfer Case Assemblytransfer case — exploded view | WO-A1195Source · PDF 159 · Drawing ↑Ford · GPW7700 | A 1195 ↗transfer case · MB |
The same PN in multiple places does not automatically validate each year, country or performance. The original data is preserved; note indicates the difference between the sources.

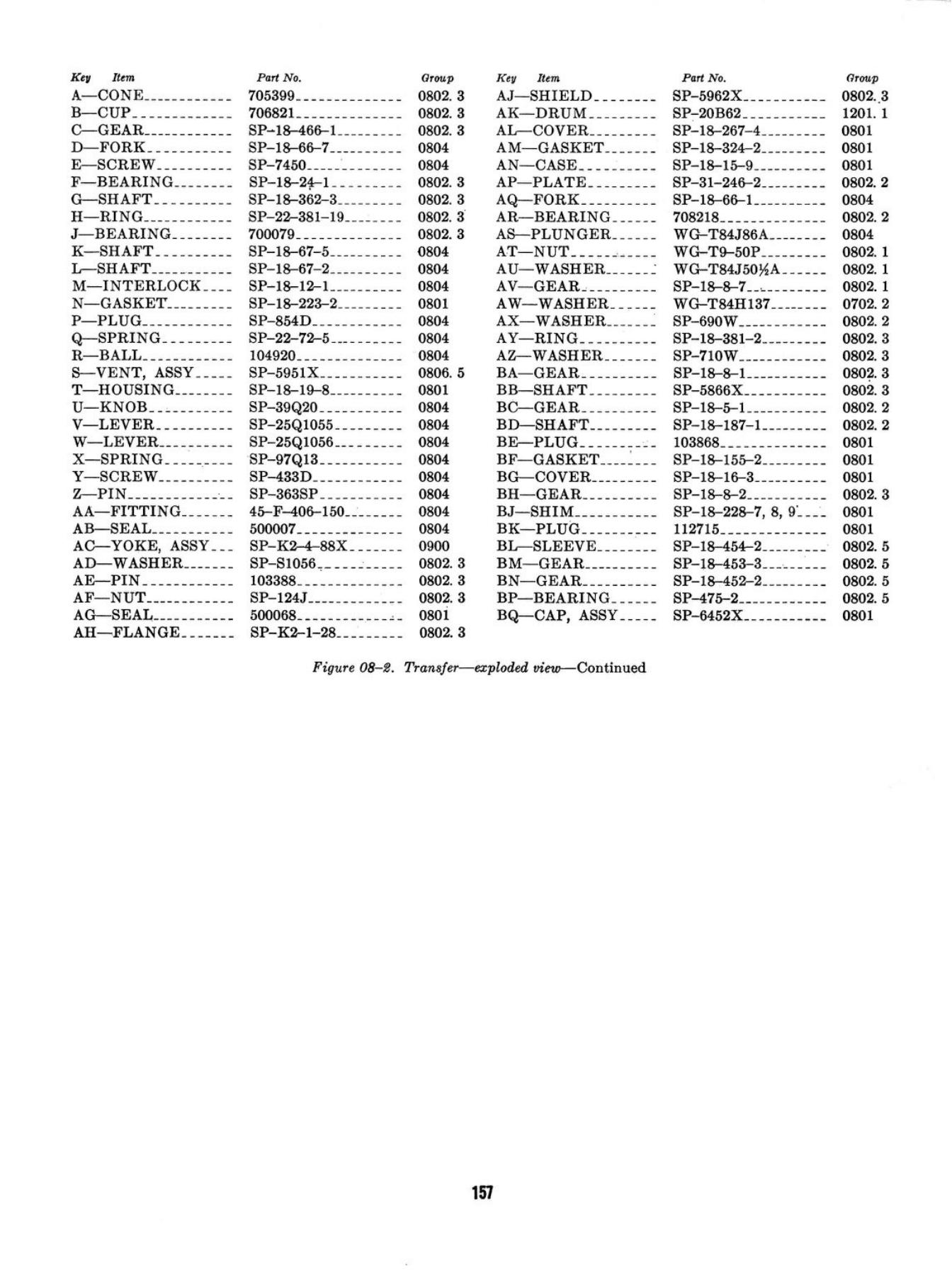

transfer case — continued and markings
Original catalogs and service manual
ORD 9 SNL G-503 — Full Parts Catalog (PDF)
TM 10-1513 - Service Chapter for this assembly (PDF)
Page numbers with drawings indicate pages of the PDF file; printed numbering may vary. For the chassis, body and some equipment, an overview of the assembly is shown, according to the original catalog.
Original catalog · 1945

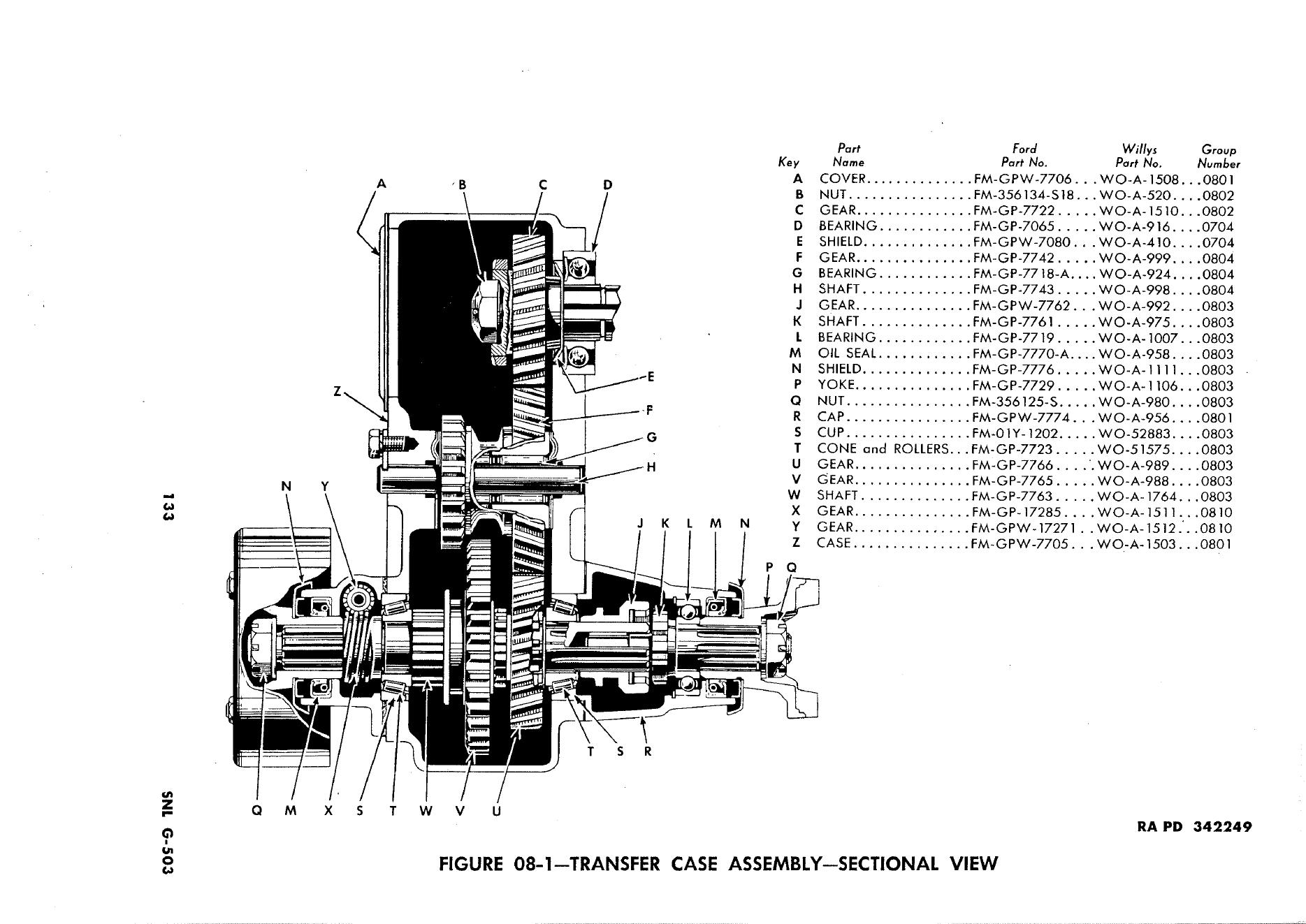

transfer case: Willys and Ford numbers
Section 08-1 from the original ORD 9 SNL G-503 also shows the rear part of the transmission. Positions B, D and E refer to parts of the transmission main shaft, so they lead to the transmission group.
Parts from the 1945 section.
| Pos. | Part | Original tags | MB catalog |
|---|---|---|---|
| B | Main shaft nutPicture 08-1 · 1945 | WO-A520Ford · 356134-S18ORD 9 1945 · PDF 135 | A 520 ↗transmission · MB |
| D | Rear bearing of the transmission main shaftPicture 08-1 · 1945 | WO-A916Ford · GP-7065ORD 9 1945 · PDF 135 | A 916 ↗transmission · MB |
| E | Main shaft guard / adapterPicture 08-1 · 1945 | WO-A410Ford · GPW-7080ORD 9 1945 · PDF 135 | A 410 ↗transmission · MB |
| F | Intermediate gearPicture 08-1 · 1945 | WO-A999Ford · GP-7742ORD 9 1945 · PDF 135 | A 999 ↗transfer case · MB |
| G | Intermediate gear bearingPicture 08-1 · 1945 | WO-A924Ford · GP-7718-AORD 9 1945 · PDF 135 | A 924 ↗transfer case · MB |
| H | Intermediate shaftPicture 08-1 · 1945 | WO-A998Ford · GP-7743ORD 9 1945 · PDF 135 | A 998 ↗transfer case · MB |
| J | Output clutch gearPicture 08-1 · 1945 | WO-A992Ford · GPW-7762ORD 9 1945 · PDF 135 | A 992 ↗transfer case · MB |
| L | Output shaft bearingPicture 08-1 · 1945 | WO-A1007Ford · GP-7719ORD 9 1945 · PDF 135 | A 1007 ↗transfer case · MB |
| N | Cardan fork protectionPicture 08-1 · 1945 | WO-A1111Ford · GP-7776ORD 9 1945 · PDF 135 | A 1111 ↗transfer case · MB |
| P | Cardan forkPicture 08-1 · 1945 | WO-A1106Ford · GP-7729ORD 9 1945 · PDF 135 | A 1106 ↗transfer case · MB |
| Q | Flange nutPicture 08-1 · 1945 | WO-A980Ford · 356125-SORD 9 1945 · PDF 135 | A 980 ↗transfer case · MB |
| R | Front coverPicture 08-1 · 1945 | WO-A956Ford · GPW-7774ORD 9 1945 · PDF 135 | A 956 ↗transfer case · MB |
| S | Outer bearing ringPicture 08-1 · 1945 | WO-52883Ford · 01Y-1202ORD 9 1945 · PDF 135 | 52883 ↗transfer case · MB |
| U | Output gearPicture 08-1 · 1945 | WO-A989Ford · GP-7766ORD 9 1945 · PDF 135 | A 989 ↗transfer case · MB |
| V | Sliding output gearPicture 08-1 · 1945 | WO-A988Ford · GP-7765ORD 9 1945 · PDF 135 | A 988 ↗transfer case · MB |
| Z | Transfer case housingPicture 08-1 · 1945 | WO-A1503Ford · GPW-7705ORD 9 1945 · PDF 135 | A 1503 ↗transfer case · MB |

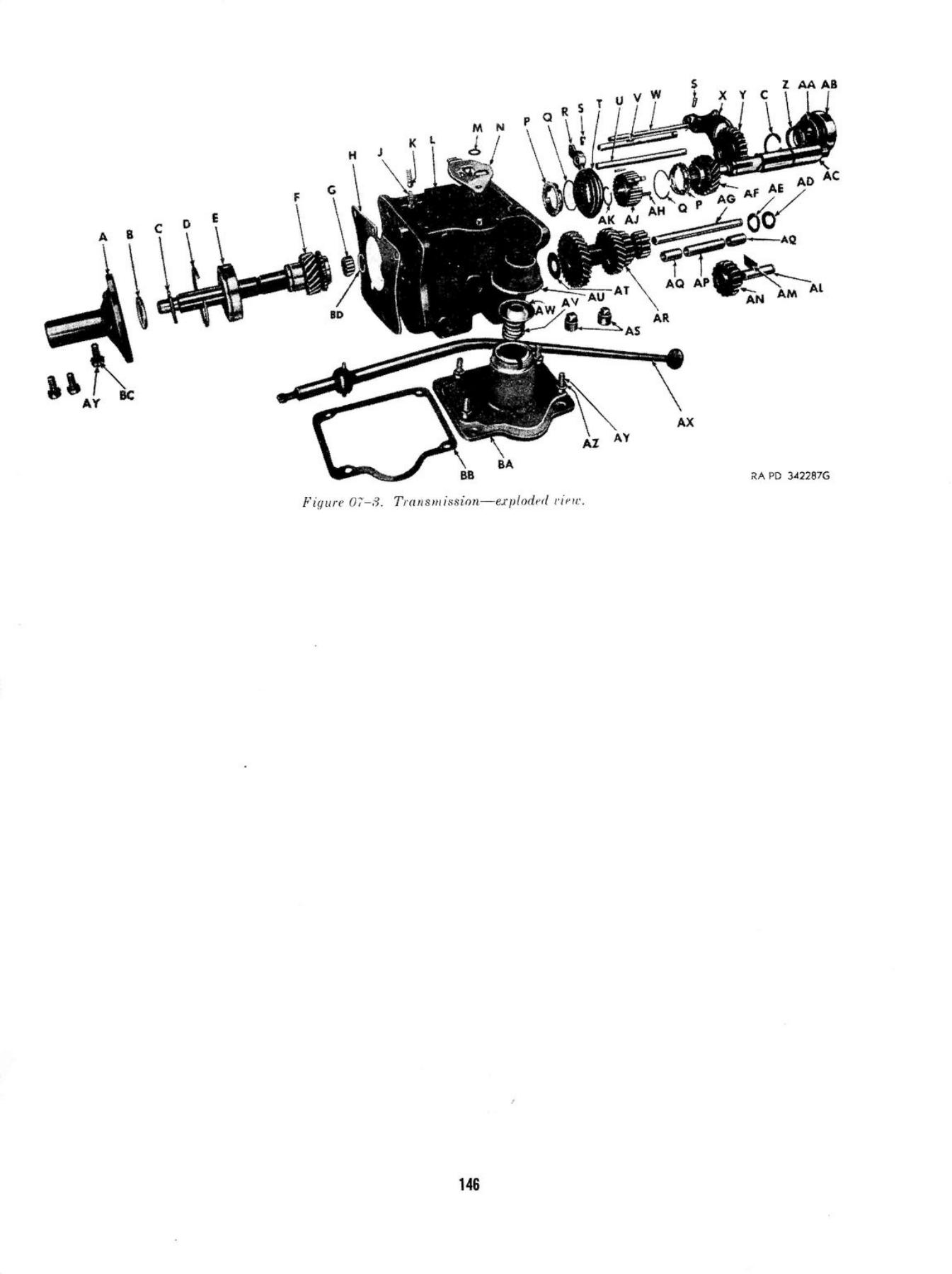

Original ORD · PDF 147
