Source: ORD 9 SNL G-503, 1949 release, Ford and Willys, ¼-ton 4×4. Marks and legends of the original catalog are preserved. The catalog also shows different versions; check the year and installed assembly before selecting a part. For CJ models, use their separate catalogs.

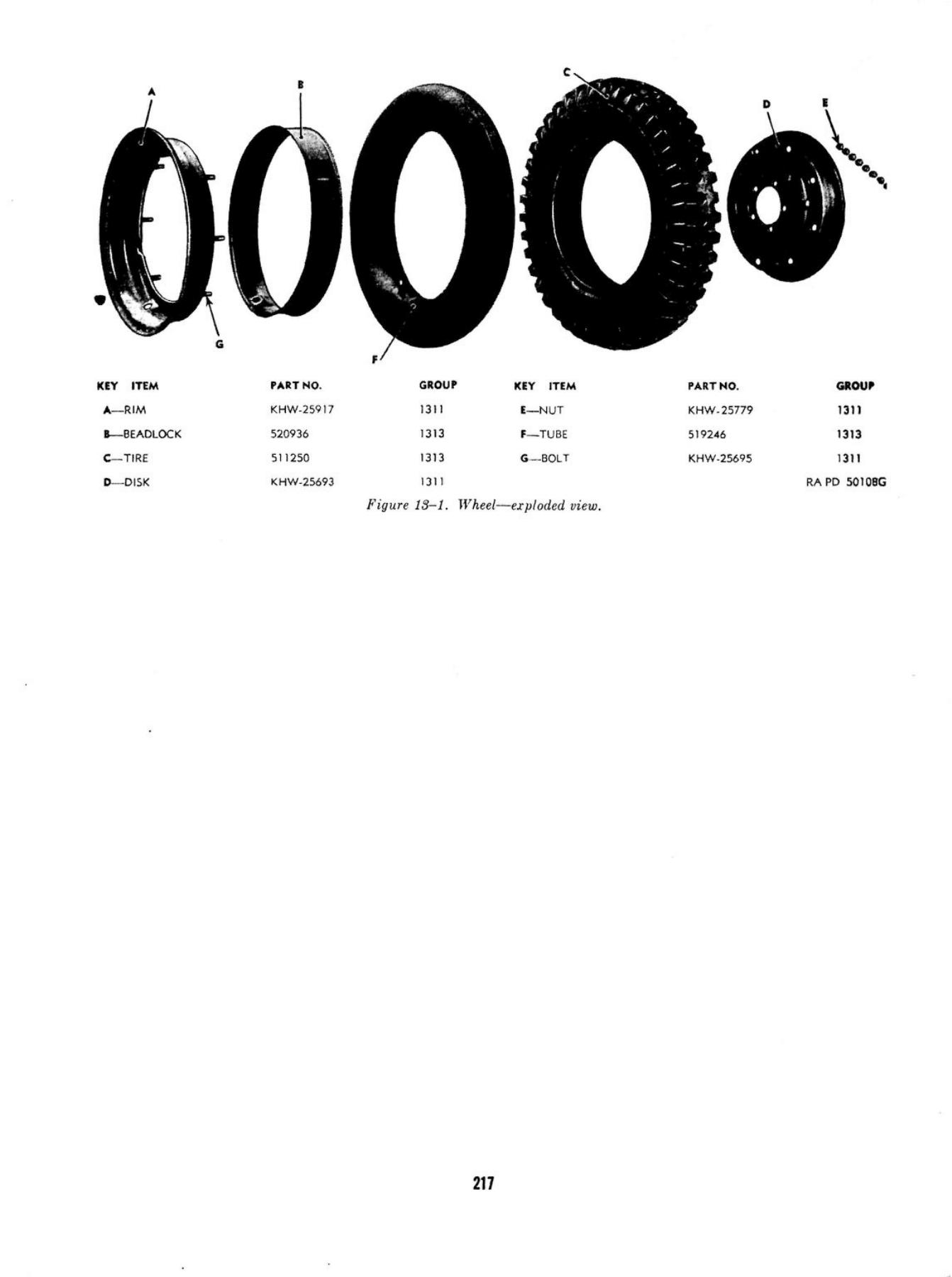

Wheel — exploded view
MB · related parts
Find the part in the MB catalog
The number opens the correct field in the Spare Parts List. The position label is overwritten where it is reliably legible; "assembly" means the whole assembly or part without a separate letter designation. Name substitutions and differences are explained with the section.
| Pos. | Part / name in existing list | Designation from drawing / source | MB part number |
|---|---|---|---|
| AR | Hub Bolt Right ThreadHub, drum and wheel attachments | KHW-24568Source · PDF 219 · Drawing ↑ | A474 ↗wheel · MB |
| AS | Hub Nut Right ThreadHub, drum and wheel attachments | KHW-24575Source · PDF 219 · Drawing ↑ | A476 ↗wheel · MB |
| Y | Bearing Retaining NutHub, drum and wheel attachments | SP-17016Source · PDF 219 · Drawing ↑ | A866 ↗chassis · MB |
| Z | Bearing Nut LockwasherHub, drum and wheel attachments | SP-17017Source · PDF 220 · Drawing ↑ | A867 ↗wheel · MB |
| AA | Bearing LockwasherHub, drum and wheel attachments | SP-17015Source · PDF 220 · Drawing ↑ | A865 ↗wheel · MB |
| Assembly | Hub Bolt Left ThreadWheel — exploded viewThe number and description are confirmed in the original table. The picture shows the associated assembly; individual letter position is not reliably read. | WO-A473Source · PDF 219 · Drawing ↑ | A473 ↗wheel · MB |
| Assembly | Brake Drum FrontWheel — exploded viewThe number and description are confirmed in the original table. The picture shows the associated assembly; individual letter position is not reliably read. | WO-A472Source · PDF 220 · Drawing ↑ | A472 ↗wheel · MBA472 ↗wheel · MB |
| Assembly | Hub Nut Left ThreadWheel — exploded viewThe number and description are confirmed in the original table. The picture shows the associated assembly; individual letter position is not reliably read. | WO-A475Source · PDF 219 · Drawing ↑ | A475 ↗wheel · MB |
The same PN in multiple places does not automatically validate each year, country or performance. The original data is preserved; note indicates the difference between the sources.
Original catalogs and service manual
ORD 9 SNL G-503 — Full Parts Catalog (PDF)
TM 10-1513 - Service Chapter for this assembly (PDF)
Page numbers with drawings indicate pages of the PDF file; printed numbering may vary. For the chassis, body and some equipment, an overview of the assembly is shown, according to the original catalog.

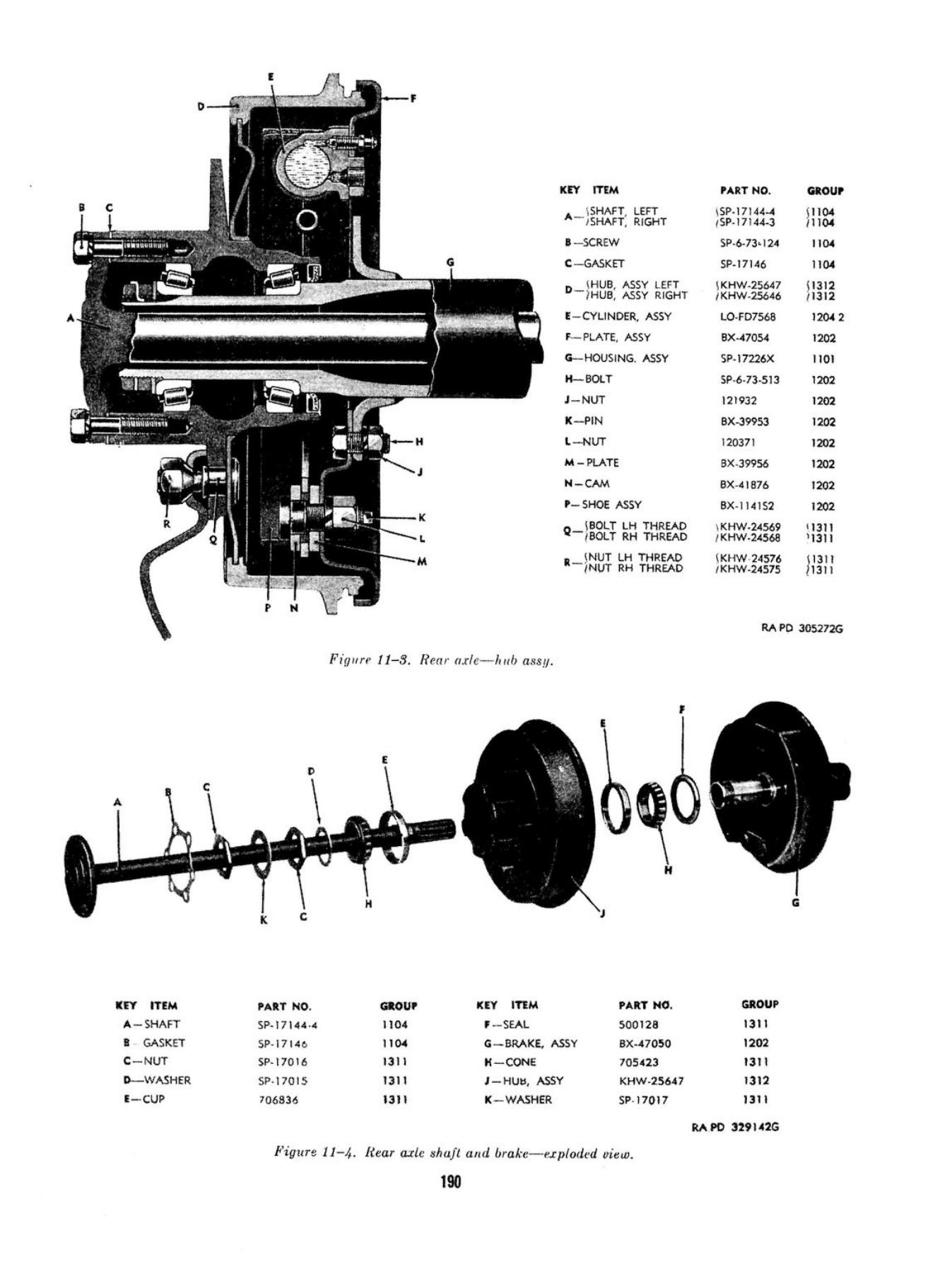

Hub, drum and wheel attachments

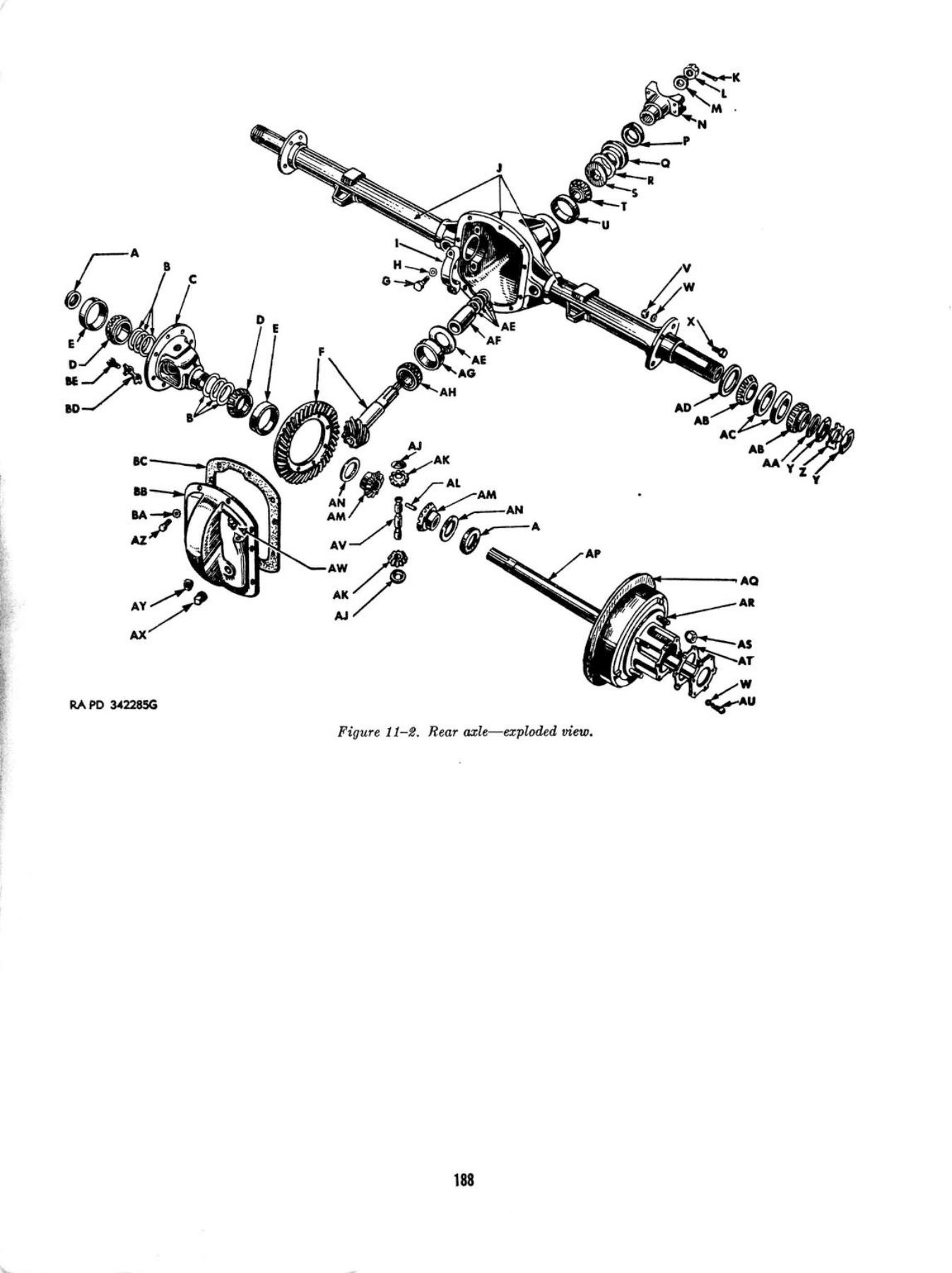

Original ORD · PDF 189

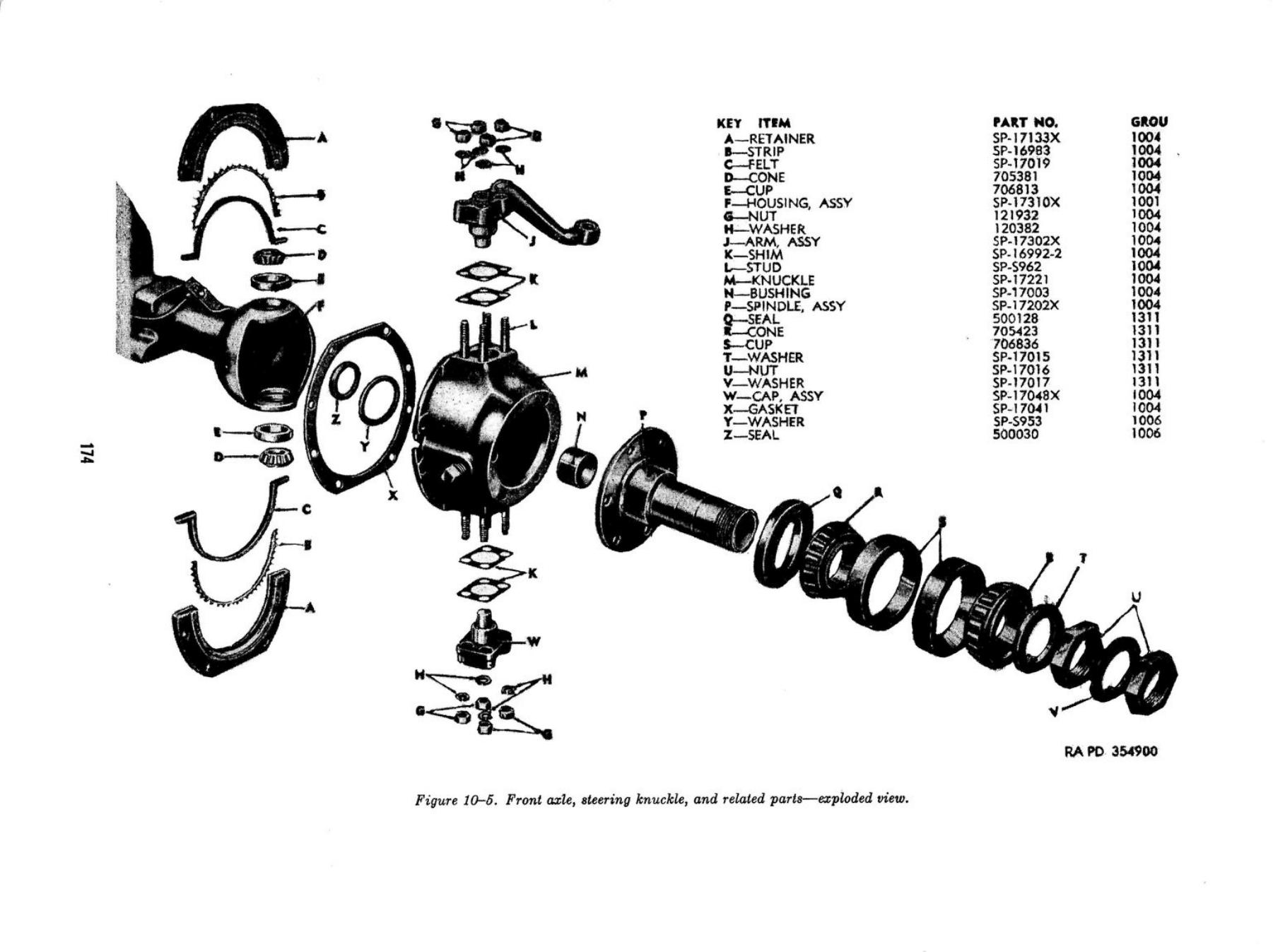

Original ORD · PDF 175
