1
COOLING SYSTEM GROUP

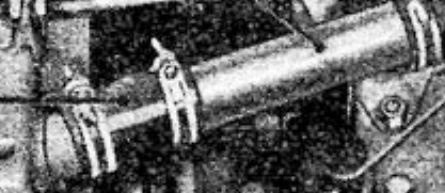

 |  |  |  MB · ORD 1949 · PDF 81 · Inlet Hose · Original Detail |  MB · ORD 1949 · PDF 81 · Outlet Hose · Original Detail |  |  | |
|---|---|---|---|---|---|---|---|
| VEHICLES MODEL | Radiator Assembly | Radiator Cap | Radiator Drain Cock | Radiator Jose Inlet | Radiator Jose Outlet | Radiator Jose By-Pass | Radiator Jose Clamp |
| No. of Units Per Vehicle | 1 | 1 | 1 | 1 | 1 | 1 | 4 As Req. |
| MB | 640145Replacement application · source and note ↗ | 810391Replacement application · source and note ↗ | A 1126ORD confirmation · source and note ↗ | A 6373MB · assembly view | A 592MB · assembly view | G 272861Identity and performance · source and note ↗ | |
| CJ2A | 640145 | 810391 | A 1126 | 645746 | 645902 | G 272861 | |
| CJ3A | 648328 | 648360 | A 1126 | 649341 | 649207 | G 272861 | |
| CJ3B | 648328 | 648360 | A 1126 | 800284 | 807519 | 649719 | G 272861 |
| CJ5 | 908028 | 648360 | A 1126 | 906779 | 906778 | 649719 | G 272861 |
| CJ6 | 908028 | 648360 | A 1126 | 906779 | 906778 | 649719 | G 272861 |
| M38 | 649855 | 801728 | A 1126 | 801044 | 801090 | 801047 | G 272861 |
| M38A1 | 805825 | 801728 | A 1126 | 805820 | 805822 | 801047 | G 272861 |
| DJ3A | 912020 | 648360 | A 1126 | 649341 | 649207 | G 272861 | |
| 463 | 641260 | 810391 | A 1126 | 630512 | A 6373 | G 272861 | |
| 4X463 | 648328 | 648360 | A 1126 | 649341 | 648337 | G 272861 | |
| 473 | 648328 | 648360 | A 1126 | 800284 | 649207 | 649719 | G 272861 |
| 4X473 | 648328 | 648360 | A 1126 | 800284 | 649207 | 649719 | G 272861 |
| 475 | 648328 | 648360 | A 1126 | 800284 | 649207 | 649719 | G 272861 |
| 2X475 | 648328 | 648360 | A 1126 | 800284 | 649207 | 649719 | G 272861 |
| 4X475 | 648328 | 648360 | A 1126 | 800284 | 649207 | 649719 | G 272861 |
| 6-226-2X4 | 927948 | 648360 | A 1126 | 906070 | 906735 | G 272861 | |
| 6-226-4X4 | 927948 | 648360 | A 1126 | 906070 | 906735 | G 272861 | |
| 4WD | 640145 | 810391 | A 1126 | 645746 | 645902 | G 272861 | |
| 473-4WD | 648328 | 648360 | A 1126 | 800284 | 649207 | 649719 | G 272861 |
| 475-4WD | 648328 | 648360 | A 1126 | 800284 | 649207 | 649719 | G 272861 |
| 6-226-4WD | 927948 | 648360 | A 1126 | 906070 | 906735 | G 272861 | |
| FC150 | 910878 | 912538 | A 1126 | 911433 | 911432 | 649719 | G 272861 |
| FC170 | 921056 | 912538 | A 1126 | 916295 | 916182 | G 272861 |
2
COOLING SYSTEM GROUP

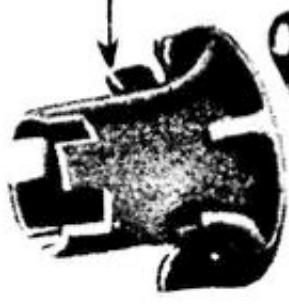

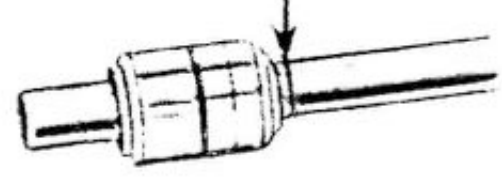

 |  |  Original type pump shaft and bearing; check replacement performance measures.ORD 9 · PDF 83 · view of type / assembly |  MB · ORD 1949 · PDF 83 · G |  MB gasket WO640031 as a comparison; Check M38 number and seat separately.ORD 9 · PDF 83 · view of type / assembly |  MB · ORD 1949 · PDF 83 · E |  | |
|---|---|---|---|---|---|---|---|

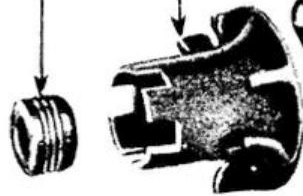

| VEHICLES MODEL | Water Pump Assy | Water Pump Repair Kit | Water Pump Shaft & Bearing | Water Pump Impeller | Water Pump Seal | Water Pump Seal Washer | Impeller & Seal Kit |
| No. of Units Per Vehicle | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| MB | 649844Identity and performance · source and note ↗ | A 6839Replacement application · source and note ↗ | 808129Replacement application · source and note ↗ | 639993MB · G | 801049Identity and performance · source and note ↗ | 640034MB · E | 921476Replacement application · source and note ↗ |
| CJ2A | 649844 | A 6839 | 808129 | 639993 | 801049 | 640034 | 921476 |
| CJ3A | 649844 | A 6839 | 808129 | 639993 | 801049 | 640034 | 921476 |
| CJ3B | 649717 | A 6839 | 808129 | 639993 | 801049 | 640034 | 921476 |
| CJ5 | 649717 | A 6839 | 808129 | 639993 | 801049 | 640034 | 921476 |
| CJ6 | 649717 | A 6839 | 808129 | 639993 | 801049 | 640034 | 921476 |
| M38 | 800002 | 800009 | 800001 | 639993 | 801049 | 640034 | 921476 |
| M38A1 | 800002 | 800009 | 800001 | 639993 | 801049 | 640034 | 921476 |
| DJ3A | 649844 | A 6839 | 808129 | 639993 | 801049 | 640034 | 921476 |
| 463 | 649844 | A 6839 | 808129 | 639993 | 801049 | 640034 | 921476 |
| 4X463 | 649844 | A 6839 | 808129 | 639993 | 801049 | 640034 | 921476 |
| 473 | 649717 | A 6839 | 808129 | 639993 | 801049 | 640034 | 921476 |
| 4X473 | 649717 | A 6839 | 808129 | 639993 | 801049 | 640034 | 921476 |
| 475 | 649717 | A 6839 | 808129 | 639993 | 801049 | 640034 | 921476 |
| 2X475 | 649717 | A 6839 | 808129 | 639993 | 801049 | 640034 | 921476 |
| 4X475 | 649717 | A 6839 | 808129 | 639993 | 801049 | 640034 | 921476 |
| 6-226-2X4 | 735828 | 912622 | 733803 | 733804 | 734955 | ||
| 6-226-4X4 | 735828 | 912622 | 733803 | 733804 | 734955 | ||
| 4WD | 649844 | A 6839 | 808129 | 639993 | 801049 | 640034 | 921476 |
| 473-4WD | 649717 | A 6839 | 808129 | 639993 | 801049 | 640034 | 921476 |
| 475-4WD | 649717 | A 6839 | 808129 | 639993 | 801049 | 640034 | 921476 |
| 6-226-4WD | 735828 | 912622 | 733803 | 733804 | 734955 | ||
| FC150 | 649717 | A 6839 | 808129 | 639993 | 801049 | 640034 | 921476 |
| FC170 | 735828 | 912622 | 733803 | 733804 | 734955 |
3
COOLING SYSTEM GROUP
 |  |  MB · ORD 1949 · PDF 83 · A |  |  Original position and type of thermostat; the image does not determine the opening temperature.ORD 9 · PDF 82 · view of type / assembly | Original position and type of thermostat; the image does not determine the opening temperature.ORD 9 · PDF 82 · view of type / assembly |  MB · ORD 1949 · PDF 82 · Thermostat holder | |
|---|---|---|---|---|---|---|---|
| VEHICLES MODEL | Fan Assembly | Fan Belt | Fan & Pump Pulley | Fan Shaft Ball Bearing | Thermostat Standard | Thermostat High Temperatures | Thermostat Retainer |
| No. of Units Per Vehicle | 1 | 1 | 1 | 2 | 1 | 1 | 1 |
| MB | 802636Replacement application · source and note ↗ | A 9490ORD confirmation · source and note ↗ | 636299MB · A | 812050Replacement application · source and note ↗ | 905594Replacement application · source and note ↗ | 639651MB · assembly view | |
| CJ2A | 802636 | 647629 | 636299 | 812050 | 905594 | 639651 | |
| CJ3A | 802636 | 647629 | 636299 | 812050 | 905594 | 639651 | |
| CJ3B | 802636 | 647629 | 636299 | 812050 | 905594 | ||
| CJ5 | 802636 | 647629 | 636299 | 812050 | 905594 | ||
| CJ6 | 802187 | 118866 | 649721 | 812050 | 905594 | ||
| M38 | 802187 | 118866 | 649721 | 812050 | 905594 | 639651 | |
| M38A1 | 802636 | 647629 | 636299 | 812050 | 905594 | 639651 | |
| DJ3A | 802636 | 647629 | 636299 | 812050 | 905594 | 639651 | |
| 463 | 802636 | 647629 | 636299 | 812050 | 905594 | 639651 | |
| 4X463 | 802636 | 647629 | 636299 | 812050 | 905594 | ||
| 473 | 802636 | 647629 | 636299 | 812050 | 905594 | ||
| 4X473 | 802636 | 647629 | 636299 | 812050 | 905594 | ||
| 475 | 802636 | 647629 | 636299 | 812050 | 905594 | ||
| 2X475 | 802636 | 647629 | 636299 | 812050 | 905594 | ||
| 4X475 | 802636 | 647629 | 636299 | 812050 | 905594 | ||
| 6-226-2X4 | 908696 | 733685 | 733798 | 812050 | 905594 | ||
| 6-226-4X4 | 908696 | 733685 | 733798 | 812050 | 905594 | ||
| 4WD | 802636 | 647629 | 636299 | 812050 | 905594 | 639651 | |
| 473-4WD | 802636 | 647629 | 636299 | 812050 | 905594 | ||
| 475-4WD | 802636 | 647629 | 636299 | 812050 | 905594 | ||
| 6-226-4WD | 908696 | 733685 | 733798 | 812050 | 905594 | ||
| FC150 | 912582 | 925331 | 636299 | 811774 | 812050 | 905594 | |
| FC170 | 908696 | 733685 | 733798 | 812050 | 905594 |
