Source: ORD 9 SNL G-503, 1949 release, Ford and Willys, ¼-ton 4×4. Marks and legends of the original catalog are preserved. The catalog also shows different versions; check the year and installed assembly before selecting a part. For CJ models, use their separate catalogs.

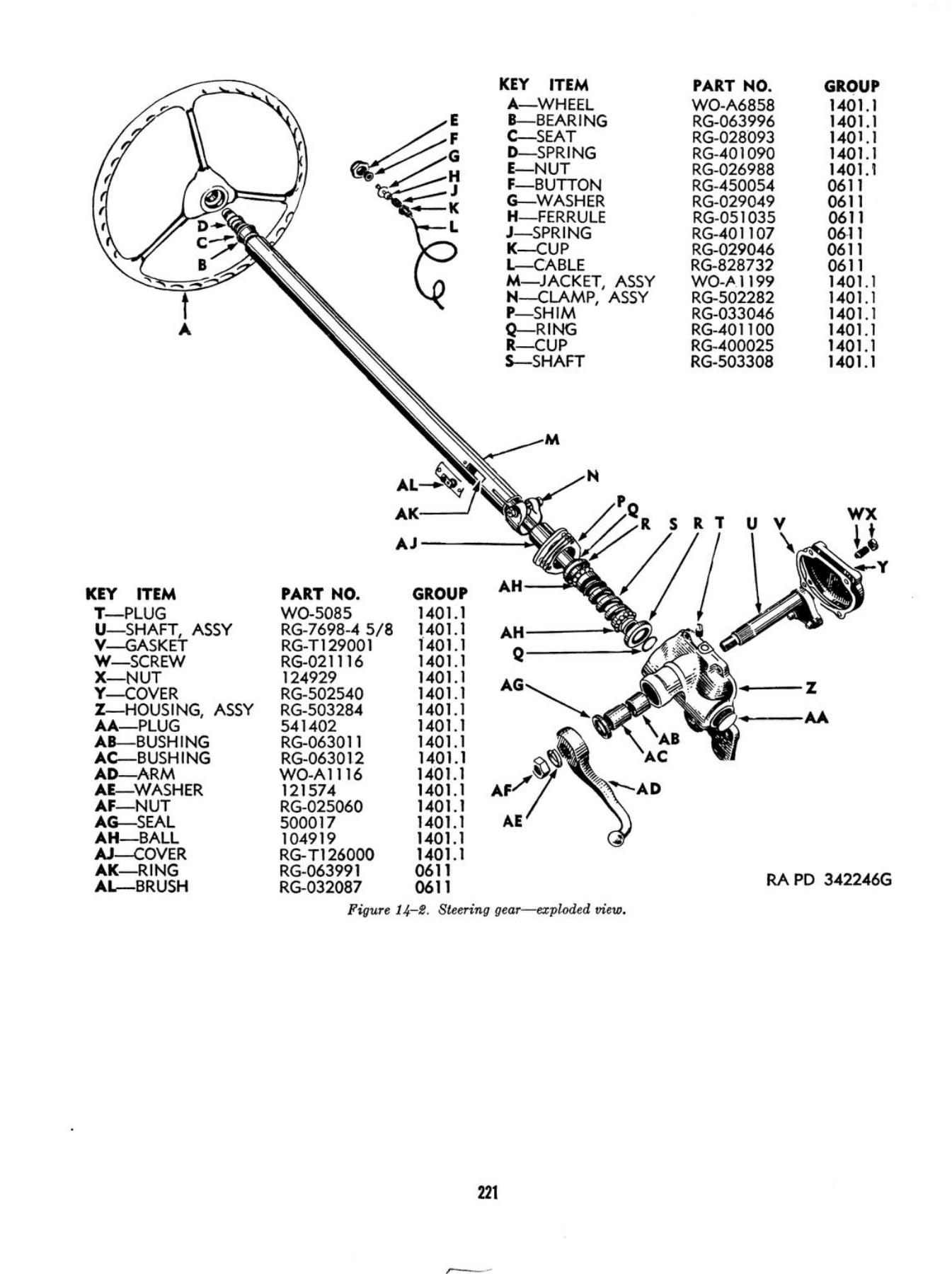

Steering Mechanism - Exploded View
MB · related parts
Find the part in the MB catalog
The number opens the correct field in the Spare Parts List. The position label is overwritten where it is reliably legible; "assembly" means the whole assembly or part without a separate letter designation. Name substitutions and differences are explained with the section.

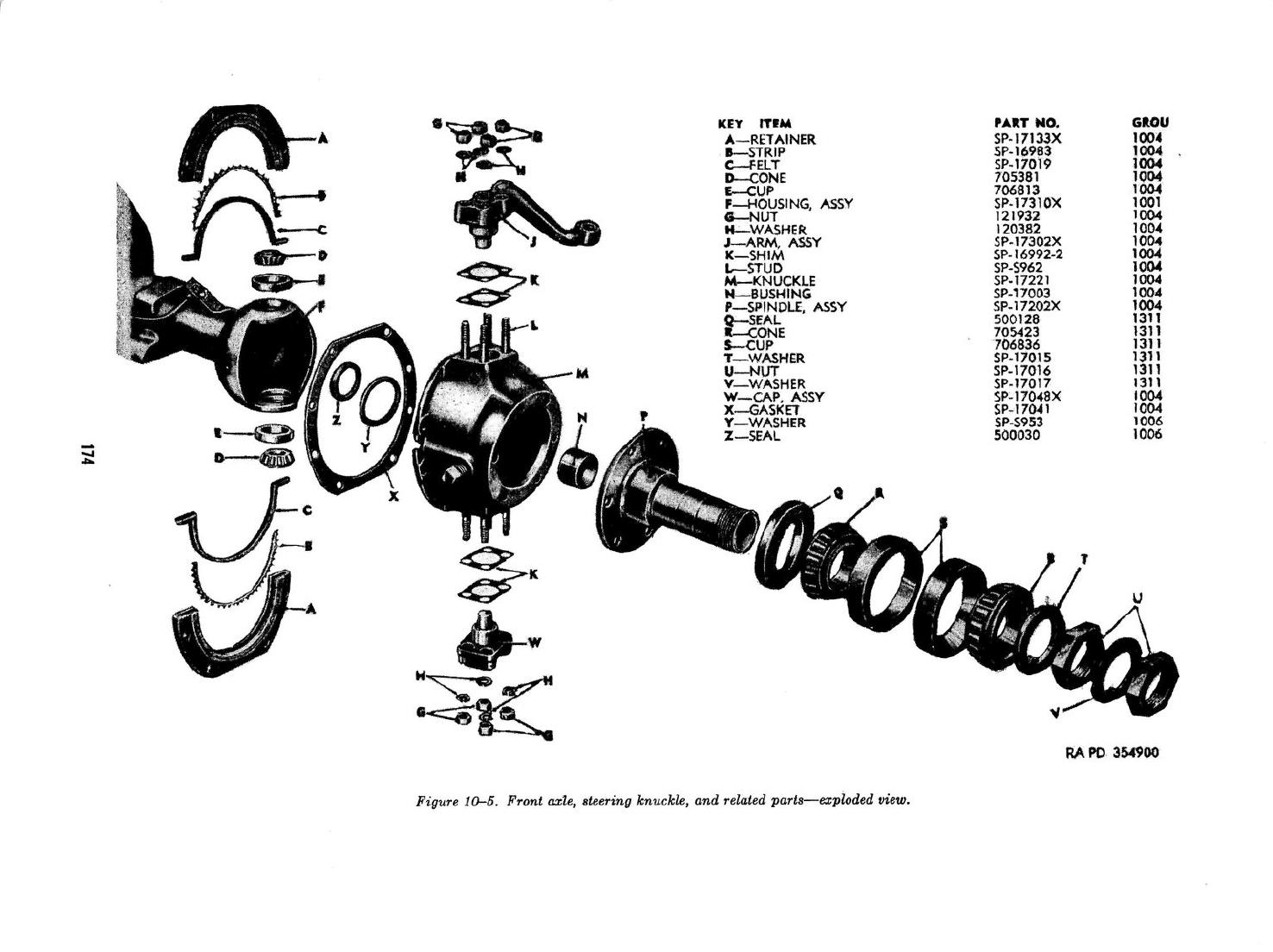

| Pos. | Part / name in existing list | Designation from drawing / source | MB part number |
|---|---|---|---|
| F | Horn ButtonSteering Mechanism - Exploded View | RG-450054Source · PDF 135 · Drawing ↑ | A 634 ↗electrical · MB |
| S | Steering Tube & CamSteering Mechanism - Exploded View | RG-503308Source · PDF 228 · Drawing ↑ | A8838 ↗steering · MB |
| V | Steering Side Cover GasketSteering Mechanism - Exploded View | RG-T129001Source · PDF 227 · Drawing ↑ | 639119 ↗steering · MB |
| AB | Sector Shaft Inner BushingSteering Mechanism - Exploded View | RG-063011Source · PDF 226 · Drawing ↑ | 639090 ↗steering · MB |
| AC | Sector Shaft Outer BushingSteering Mechanism - Exploded View | RG-063012Source · PDF 226 · Drawing ↑ | 639091 ↗steering · MB |
| AK | Horn RingSteering Mechanism - Exploded View | RG-063991Source · PDF 136 · Drawing ↑ | A 747 ↗electrical · MB |
| AL | Horn Wire BrushSteering Mechanism - Exploded View | RG-032087Source · PDF 135 · Drawing ↑ | A 302 ↗electrical · MB |
| AD | Steering Gear ArmSteering Mechanism - Exploded View | WO-A1116Source · PDF 225 · Drawing ↑ | A1116 ↗steering · MB |
| U | Steering Sector ShaftSteering Mechanism - Exploded View | RG-7698-4 5/8Source · PDF 228 · Drawing ↑ | A745 ↗steering · MB |
| Assembly | Steering linkage assemblyLongitudinal steering linkOlder steering linkage assembly; replaced by number A8250. It is not the transmission shaft number A519. | WO-A619Source · PDF 224 · Drawing ↑ | A619 ↗steering · supplement from ORD 9 |
| Assembly | Steering Bell Crankfront axle, sleeves and related partsThe number and description are confirmed in the original table. The picture shows the associated assembly; individual letter position is not reliably read.View details · PDF 171 | WO-A8249Source · PDF 223 · Drawing ↑Ford · GPW3131B | A8249 ↗steering · MB |
| Assembly | Steering Tie Rod Leftfront axle, sleeves and related partsThe number and description are confirmed in the original table. The picture shows the associated assembly; individual letter position is not reliably read.View details · PDF 171 | WO-A1709Source · PDF 225 · Drawing ↑Ford · GPW3282 | A1709 ↗steering · MB |
| Assembly | Steering Tie Rod Rightfront axle, sleeves and related partsRight steering linkage tube. It is not the eponymous frame support from the drawing of the other group. The number and description are confirmed in the original table. The picture shows the associated assembly; individual letter position is not reliably read.View details · PDF 171 | WO-A1705Source · PDF 225 · Drawing ↑Ford · GPW3281 | A1705 ↗steering · MB |
| Assembly | Bell Crank Shaft Lock Pinfront axle, sleeves and related partsThe number and description are confirmed in the original table. The picture shows the associated assembly; individual letter position is not reliably read.View details · PDF 171 | WO-A856Source · PDF 224 · Drawing ↑Ford · GPW3166 | A856 ↗steering · MB |
| Assembly | Drag Link Dust CoverLongitudinal steering linkThe number and description are confirmed in the original table. The picture shows the associated assembly; individual letter position is not reliably read. | WO-A622Source · PDF 223 · Drawing ↑Ford · GPW3332A | A622 ↗steering · MB |
| Assembly | Ball Seat SpringLongitudinal steering linkThe number and description are confirmed in the original table. The picture shows the associated assembly; individual letter position is not reliably read. | WO-630754Source · PDF 225 · Drawing ↑Ford · GPW3327 | 630754 ↗steering · MB |
| Assembly | Tie Rod Assembly Leftfront axle, sleeves and related partsThe number and description are confirmed in the original table. The picture shows the associated assembly; individual letter position is not reliably read.View details · PDF 171 | WO-A1708Source · PDF 224 · Drawing ↑Ford · GPW3279 | A1708 ↗steering · MB |
| Assembly | Tie Rod Assembly Rightfront axle, sleeves and related partsThe number and description are confirmed in the original table. The picture shows the associated assembly; individual letter position is not reliably read.View details · PDF 171 | WO-A1704Source · PDF 224 · Drawing ↑Ford · GPW3280 | A1704 ↗steering · MB |
| Assembly | Adjusting Plug LargeLongitudinal steering linkThe number and description are confirmed in the original table. The picture shows the associated assembly; individual letter position is not reliably read. | WO-630756Source · PDF 224 · Drawing ↑Ford · GPW3323 | 630756 ↗steering · MB |
| Assembly | Adjusting Plug SmallLongitudinal steering linkThe number and description are confirmed in the original table. The picture shows the associated assembly; individual letter position is not reliably read. | WO-630757Source · PDF 224 · Drawing ↑Ford · GPW3328 | 630757 ↗steering · MB |
| Assembly | Ball Seat Spring PlugLongitudinal steering linkThe number and description are confirmed in the original table. The picture shows the associated assembly; individual letter position is not reliably read. | WO-630753Source · PDF 224 · Drawing ↑Ford · GPW3326 | 630753 ↗steering · MB |
| Assembly | Ball SeatLongitudinal steering linkThe number and description are confirmed in the original table. The picture shows the associated assembly; individual letter position is not reliably read. | WO-630755Source · PDF 224 · Drawing ↑Ford · GPW3320 | 630755 ↗steering · MB |
| Assembly | Steering Gear AssemblySteering Mechanism - Exploded View | WO-A1239Source · PDF 227 · Drawing ↑Ford · GPW3504 | A1239 ↗steering · MB |
The same PN in multiple places does not automatically validate each year, country or performance. The original data is preserved; note indicates the difference between the sources.

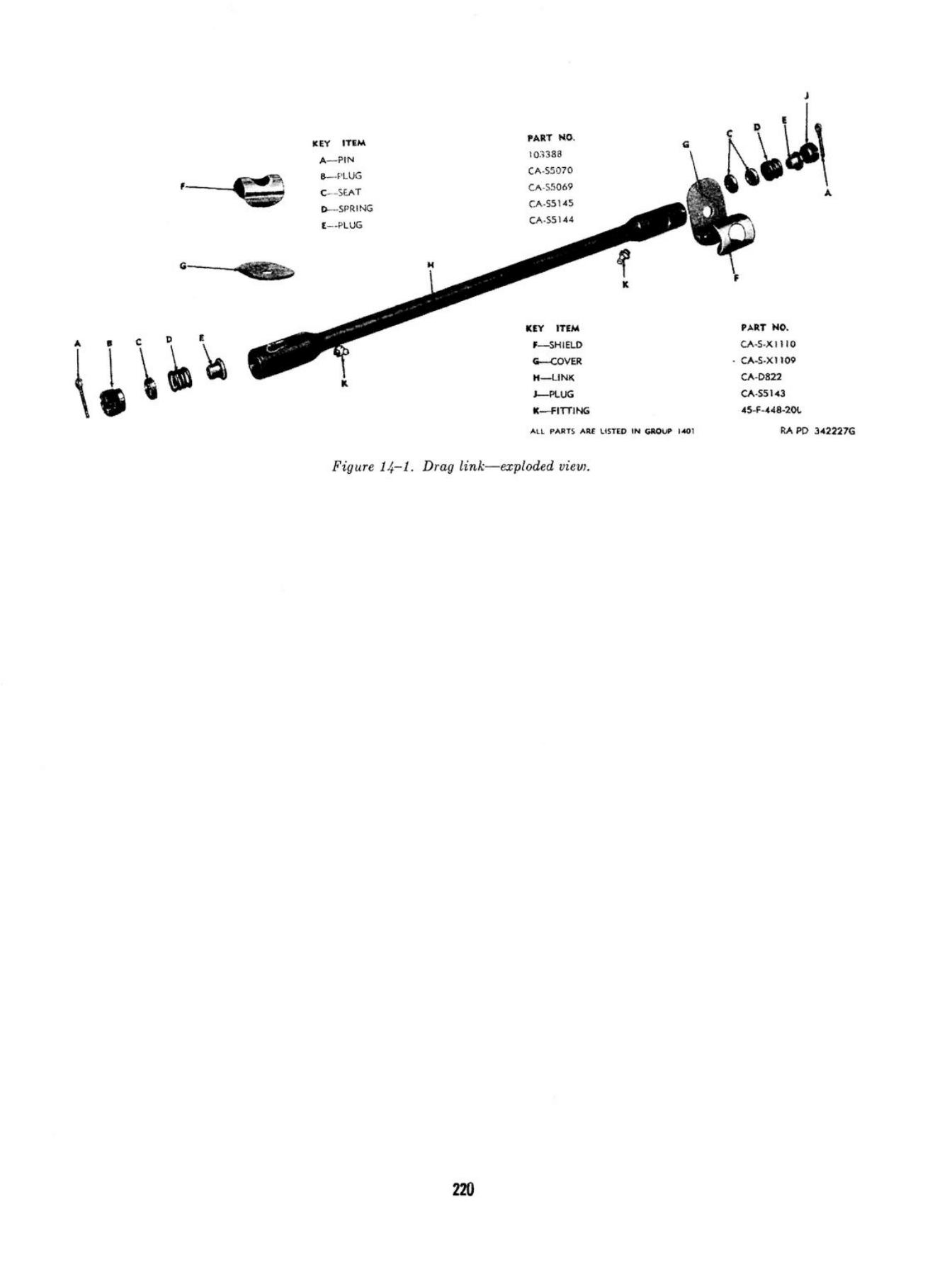

Longitudinal steering link
Original catalogs and service manual
ORD 9 SNL G-503 — Full Parts Catalog (PDF)
TM 10-1513 - Service Chapter for this assembly (PDF)
Page numbers with drawings indicate pages of the PDF file; printed numbering may vary. For the chassis, body and some equipment, an overview of the assembly is shown, according to the original catalog.

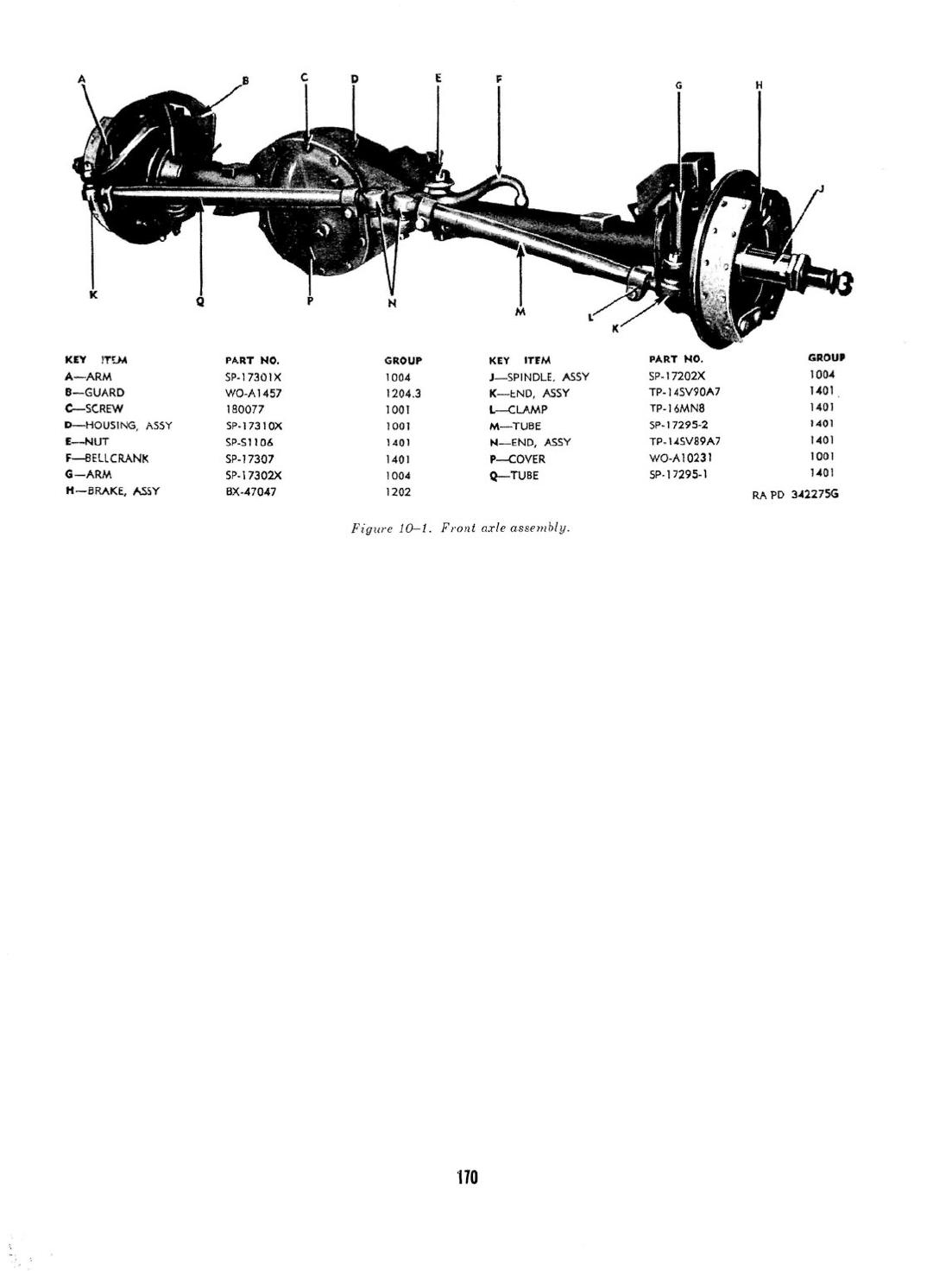

front axle, sleeves and related parts
Original ORD · PDF 171
