Source: ORD 9 SNL G-503, 1949 release, Ford and Willys, ¼-ton 4×4. Marks and legends of the original catalog are preserved. The catalog also shows different versions; check the year and installed assembly before selecting a part. For CJ models, use their separate catalogs.

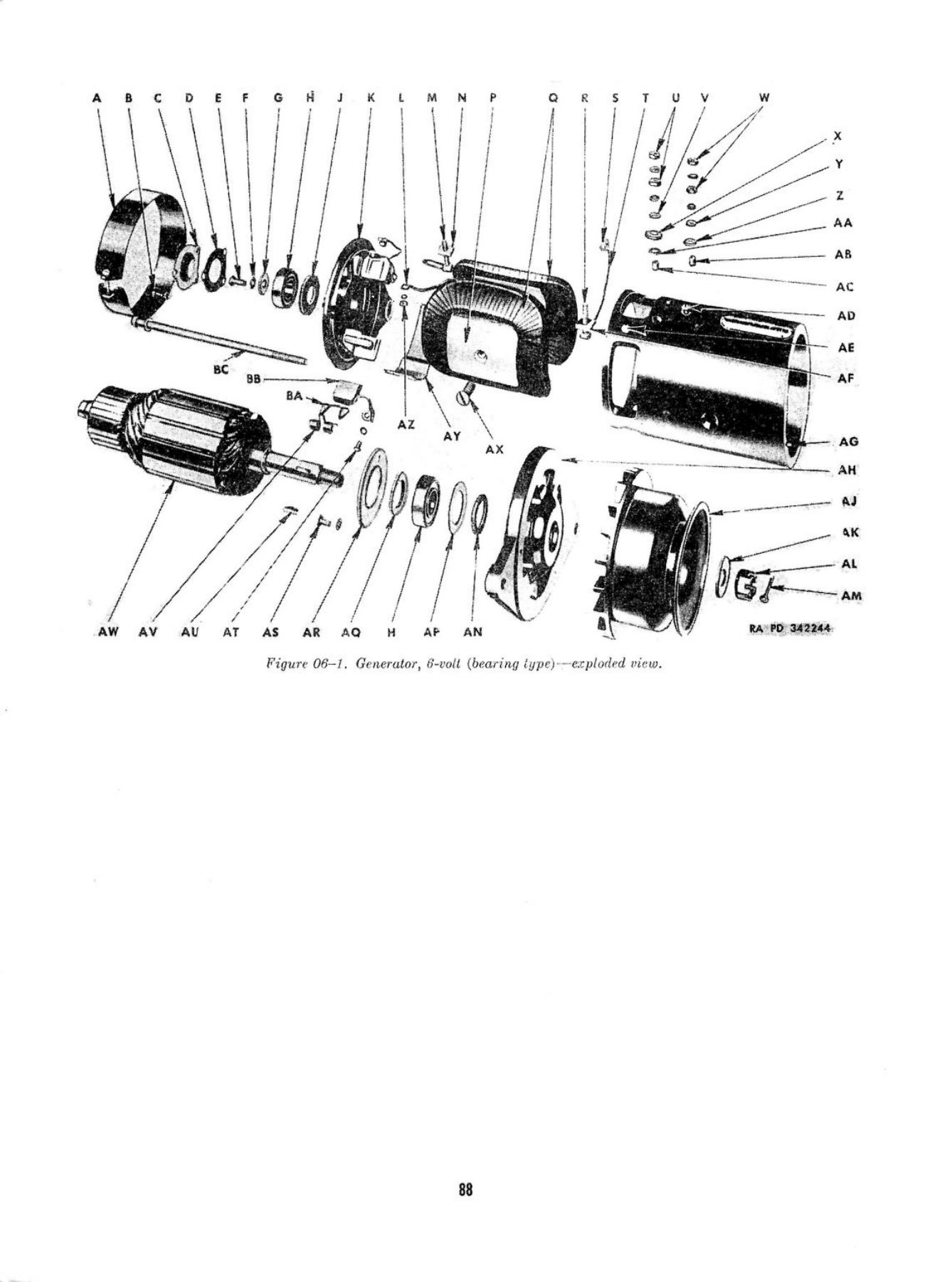

Generator 6 V — bearing variant
MB · related parts
Find the part in the MB catalog
The number opens the correct field in the Spare Parts List. The position label is overwritten where it is reliably legible; "assembly" means the whole assembly or part without a separate letter designation. Name substitutions and differences are explained with the section.
| Pos. | Part / name in existing list | Designation from drawing / source | MB part number |
|---|---|---|---|

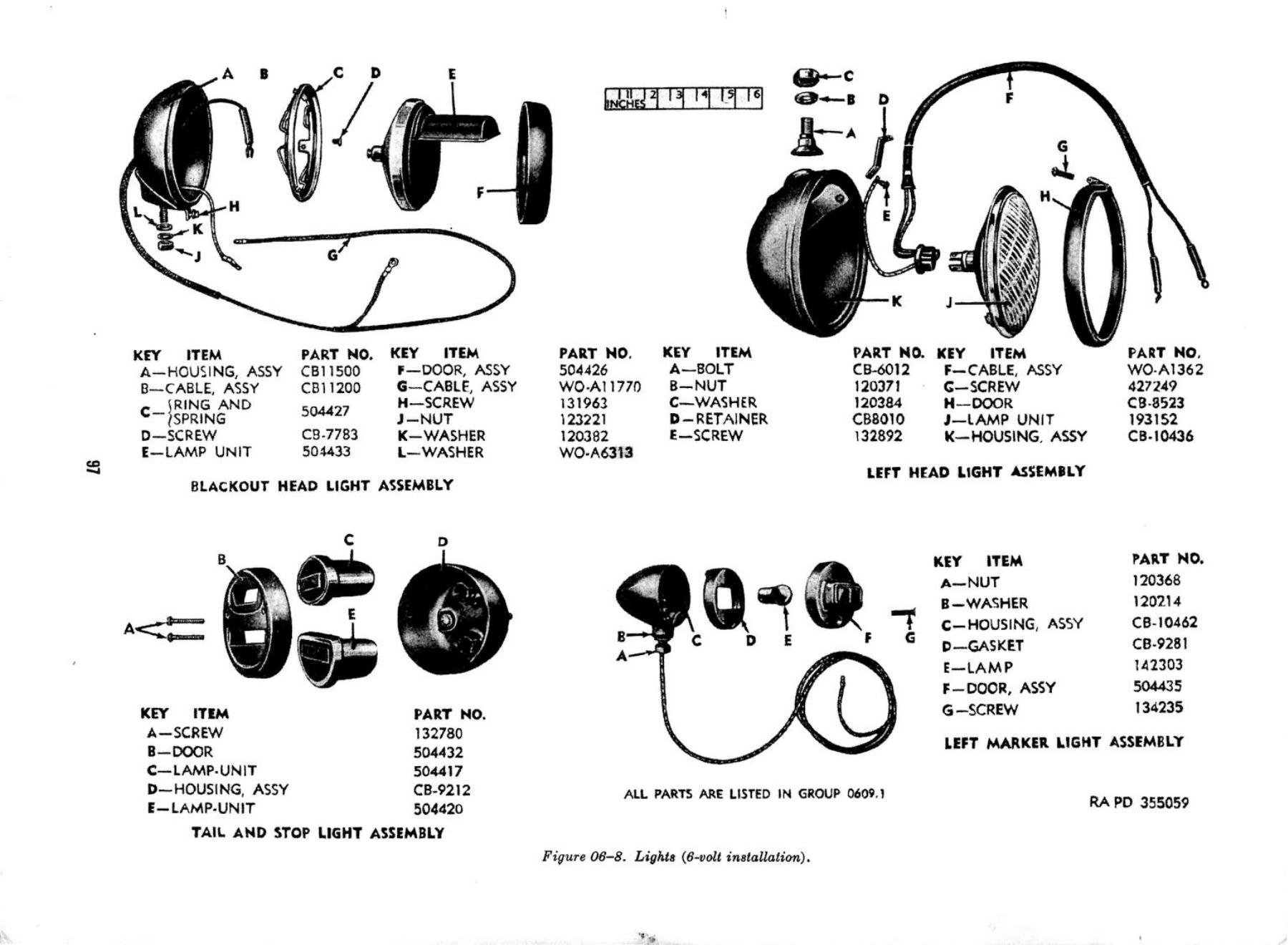

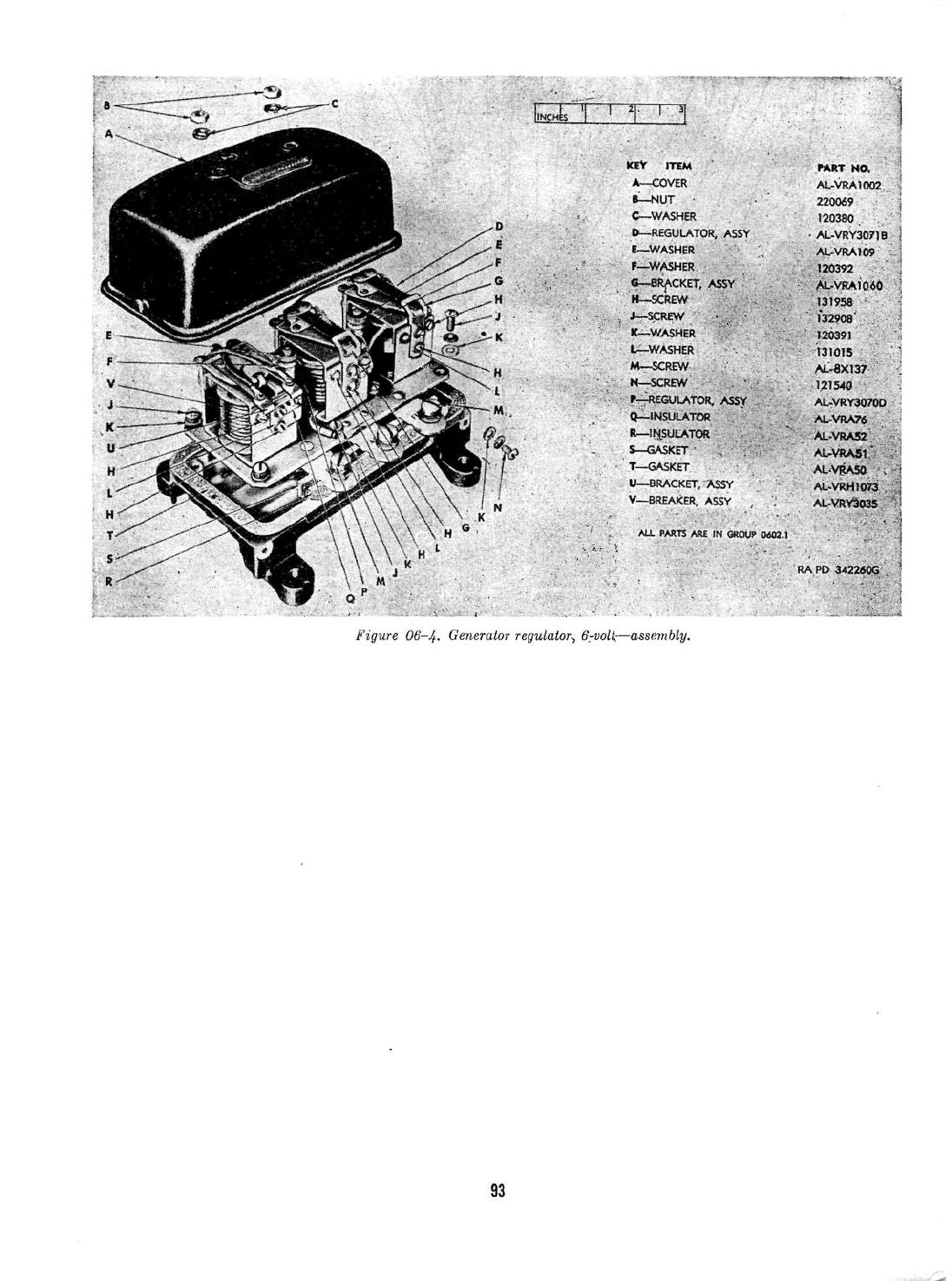

| F | Headlamp Wire LeftLighting 6 V | WO-A1362Source · PDF 98 · Drawing ↑ | A 1362 ↗electrical · MB |
| H | Headlamp DoorLighting 6 V | CB-8523Source · PDF 131 · Drawing ↑ | A 1036 ↗electrical · MB |
| R | Engine Ground StrapElectrical system | WO-A1098Source · PDF 99 · Drawing ↑ | A 1098 ↗instrument · MB |
| V | Battery to Starter Switch CableElectrical system | WO-A 1452Source · PDF 99 · Drawing ↑ | A 1452 ↗instrument · MB |
| Assembly | Starter Assembly 6 Volt AutoliteElectric starter 6 VComplete electric starter 6 V; check performance. | WO-A1245Source · PDF 119 · Drawing ↑ | A 1245 ↗electrical · MB |
| Assembly | Generator 6V AutoliteGenerator 6 V — bearing variantComplete generator 6 V; check the displayed performances according to the built-in generator. | WO-A5992Source · PDF 103 · Drawing ↑ | A 5992 ↗electrical · MB |
| Assembly | Generator Support InsulatorGenerator 6 V — bearing variantThe number and description are confirmed in the original table. The picture shows the associated assembly; individual letter position is not reliably read. | WO-A1395Source · PDF 104 · Drawing ↑Ford · GPW10178 | A 1395 ↗electrical · MB |
| Assembly | Generator Support BoltGenerator 6 V — bearing variantThe number and description are confirmed in the original table. The picture shows the associated assembly; individual letter position is not reliably read. | WO-A1397Source · PDF 104 · Drawing ↑ | A 1397 ↗electrical · MB |
| Assembly | Headlamp Wire RightElectrical systemThe number and description are confirmed in the original table. The picture shows the associated assembly; individual letter position is not reliably read. | WO-A1363Source · PDF 131 · Drawing ↑Ford · GPW13075 | A 1363 ↗electrical · MB |
| Assembly | Dimmer SwitchElectrical systemThe number and description are confirmed in the original table. The picture shows the associated assembly; individual letter position is not reliably read. | WO-638979Source · PDF 130 · Drawing ↑Ford · GPW13532 | 638979 ↗electrical · MB |
| Assembly | Starting SwitchElectric starter 6 VEarlier version of the electric starter switch; ORD 9 lists a later replacement. Check the built-in type. The number and description are confirmed in the original table. The picture shows the associated assembly; individual letter position is not reliably read. | WO-A7225Source · PDF 120 · Drawing ↑ | A 7225 ↗electrical · MB |
| Assembly | Voltage Regulator 6 Volt AutoliteGenerator 6 V — bearing variantThe number and description are confirmed in the original table. The picture shows the associated assembly; individual letter position is not reliably read.View details · PDF 94 | WO-A15255Source · PDF 113 · Drawing ↑Ford · GPW10505C | A 15255 ↗electrical · MB |
| Assembly | Ignition SwitchElectrical systemThe number and description are confirmed in the original table. The picture shows the associated assembly; individual letter position is not reliably read. | WO-A6811Source · PDF 126 · Drawing ↑Ford · GPW3686B | A 6811 ↗electrical · MB |
| Assembly | Starting Motor Shaft BushingElectric starter 6 VThe number and description are confirmed in the original table. The picture shows the associated assembly; individual letter position is not reliably read. | WO-639734Source · PDF 116 · Drawing ↑Ford · GPW11134 | 639734 ↗engine · MB |
The same PN in multiple places does not automatically validate each year, country or performance. The original data is preserved; note indicates the difference between the sources.

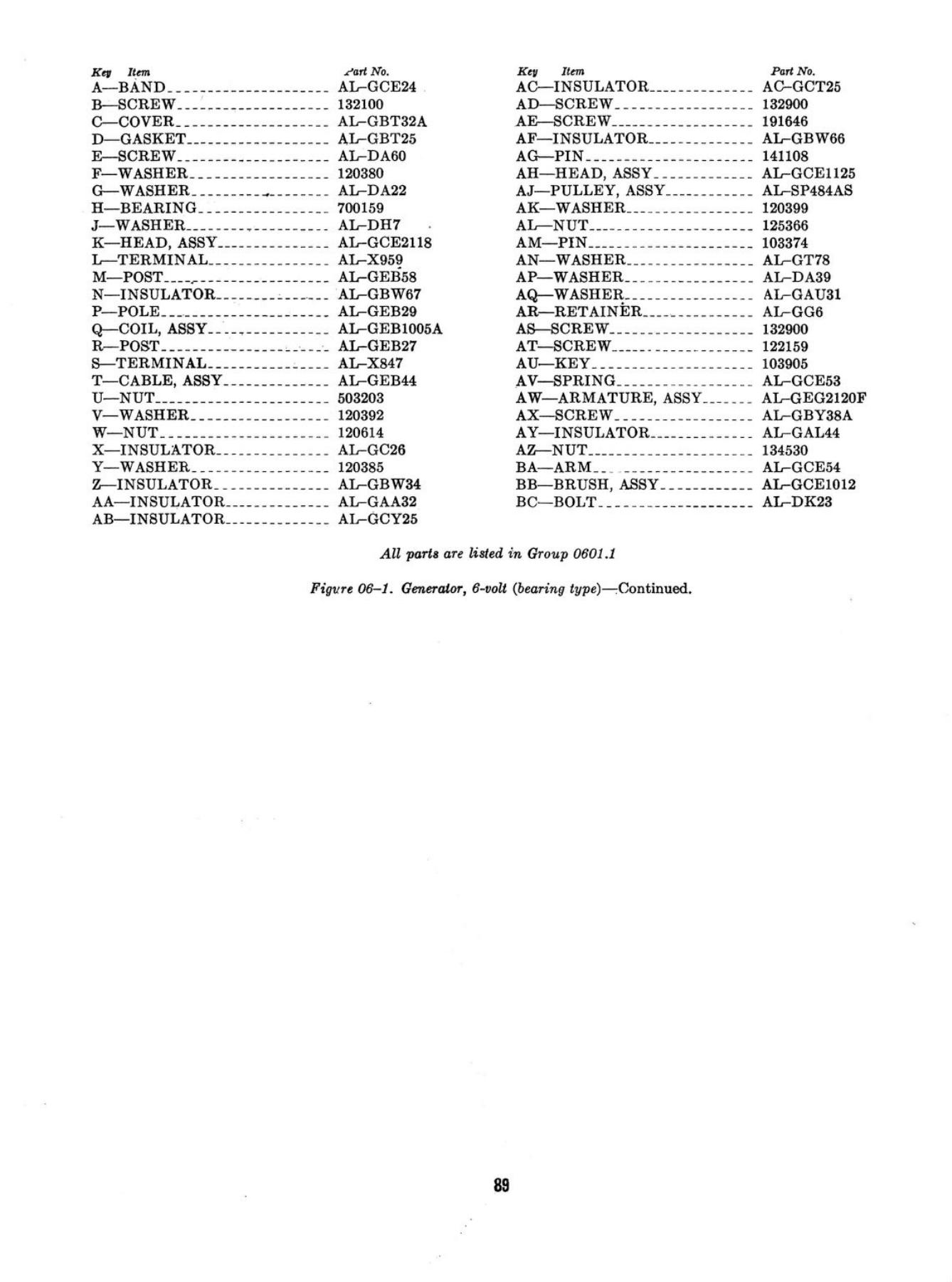

Alternator 6 V — continued

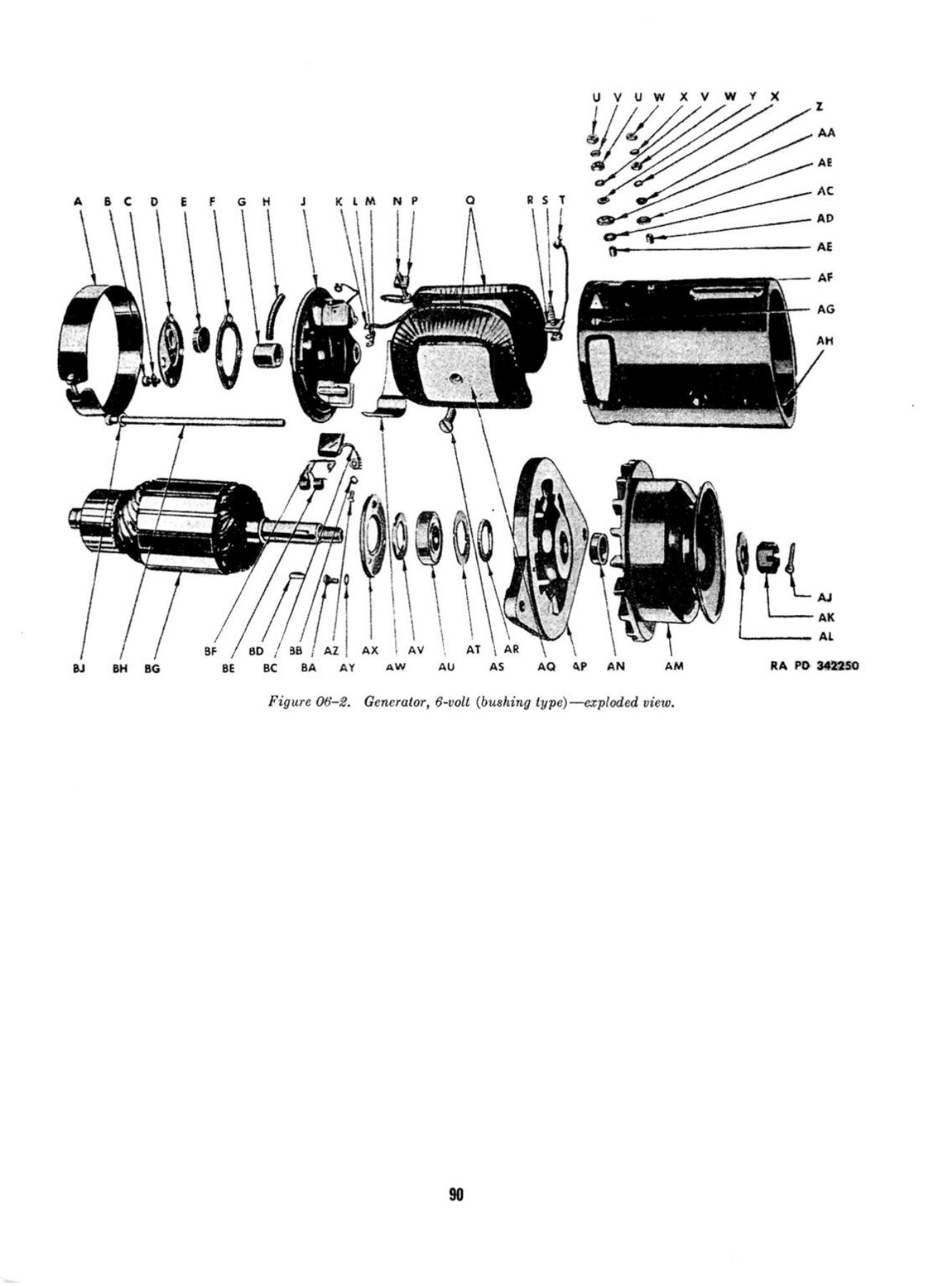

Alternator 6 V — variant with sleeve

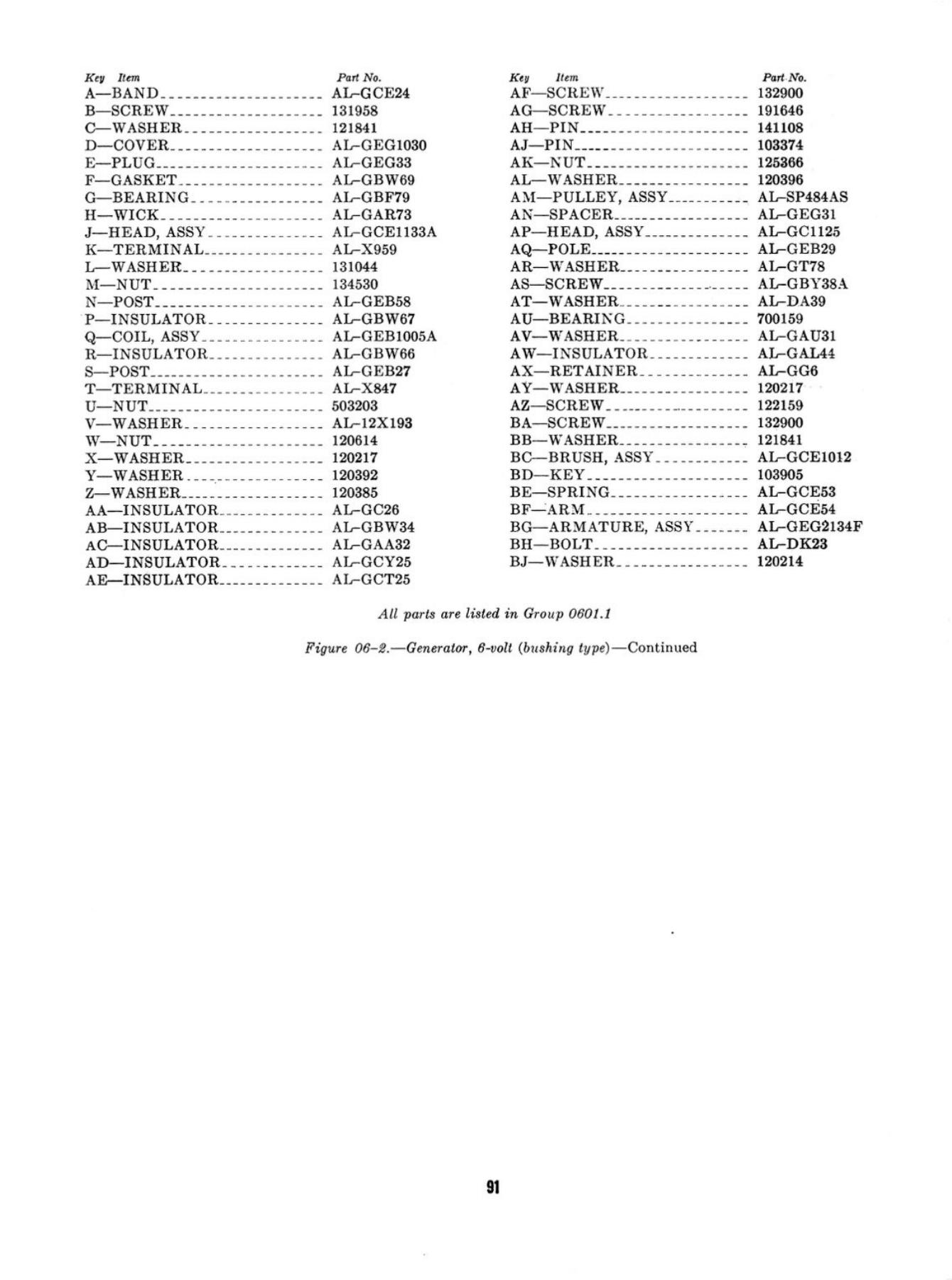

Alternator with sleeve — continued

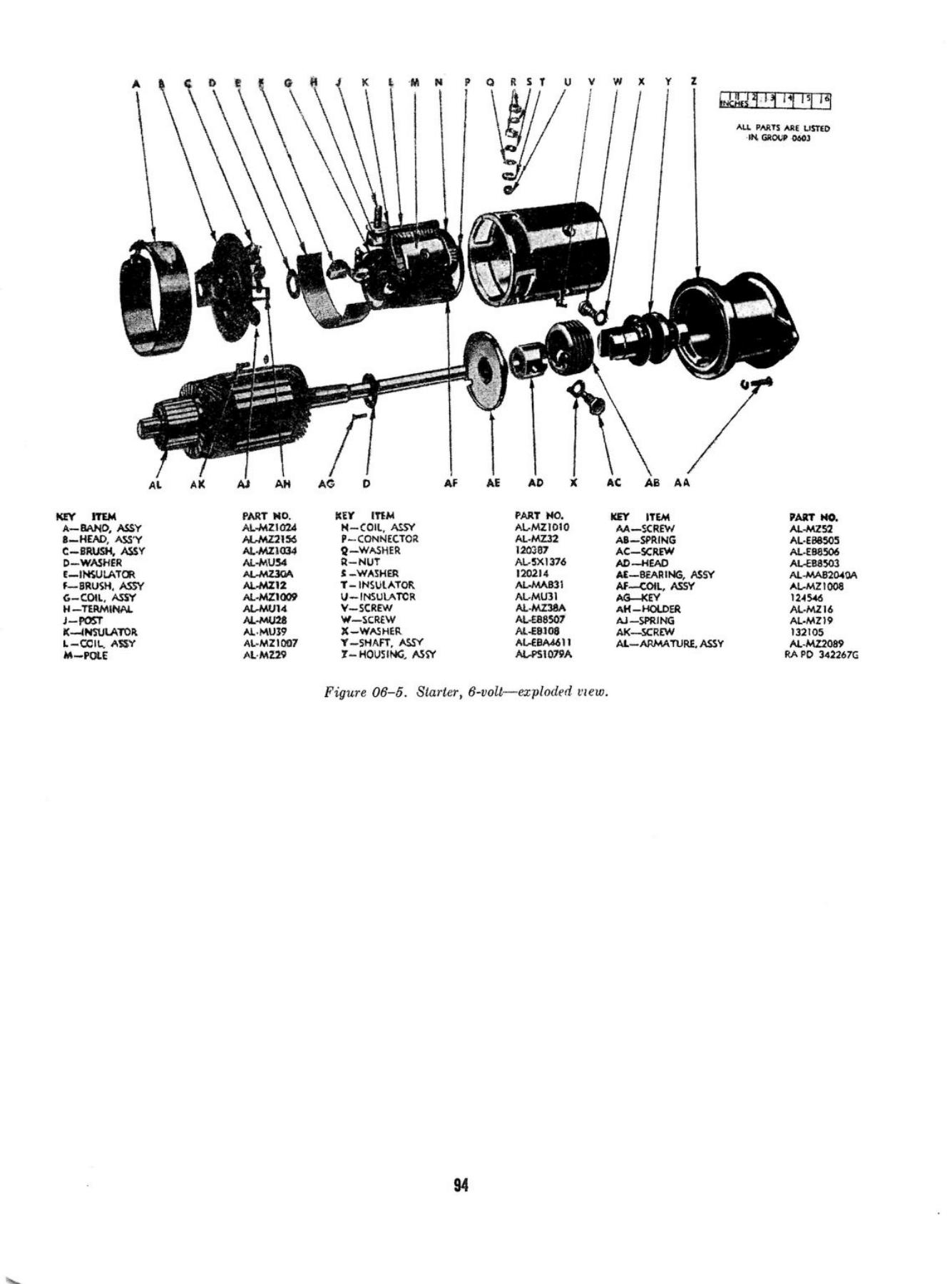

Electric starter 6 V

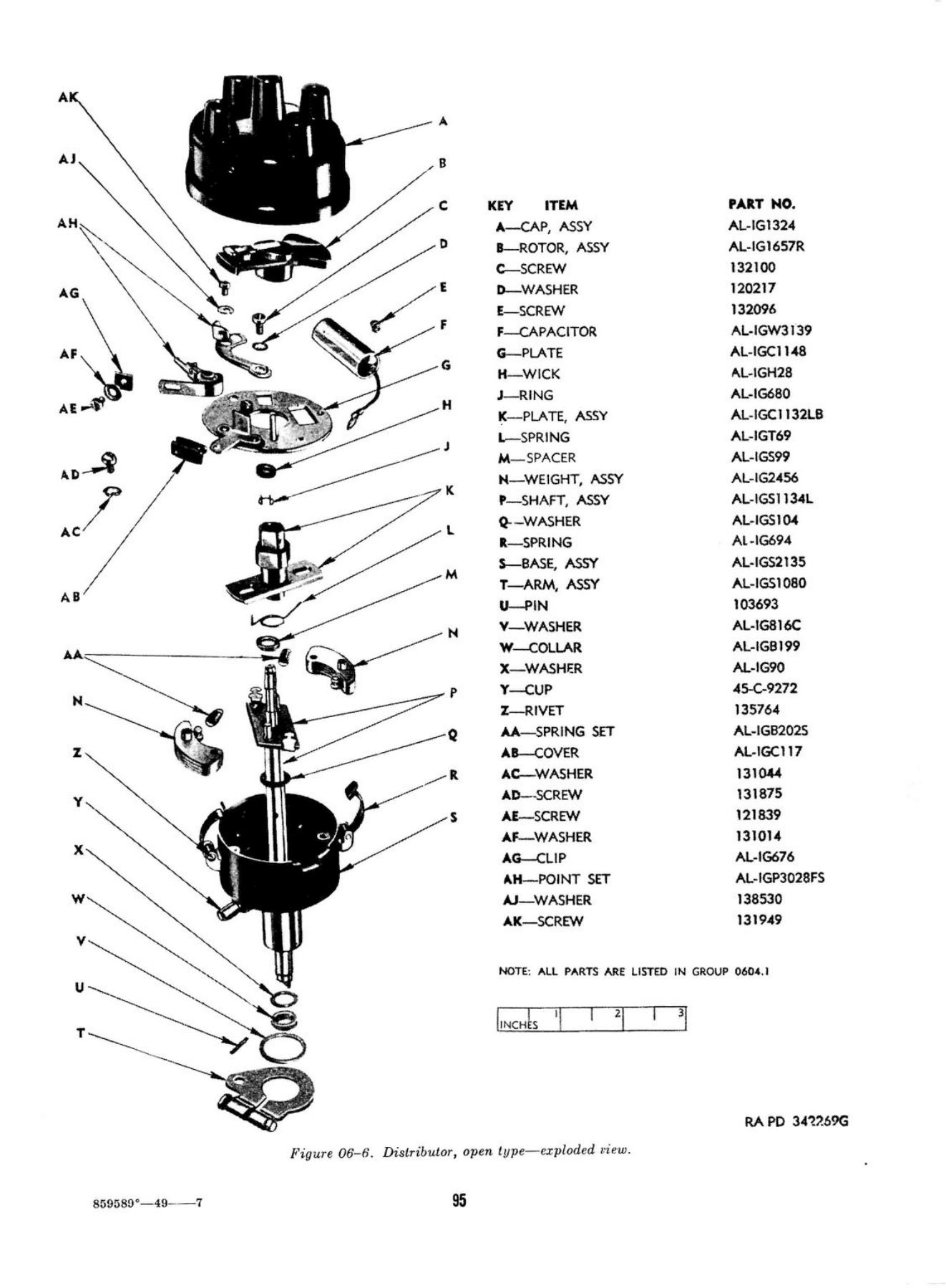

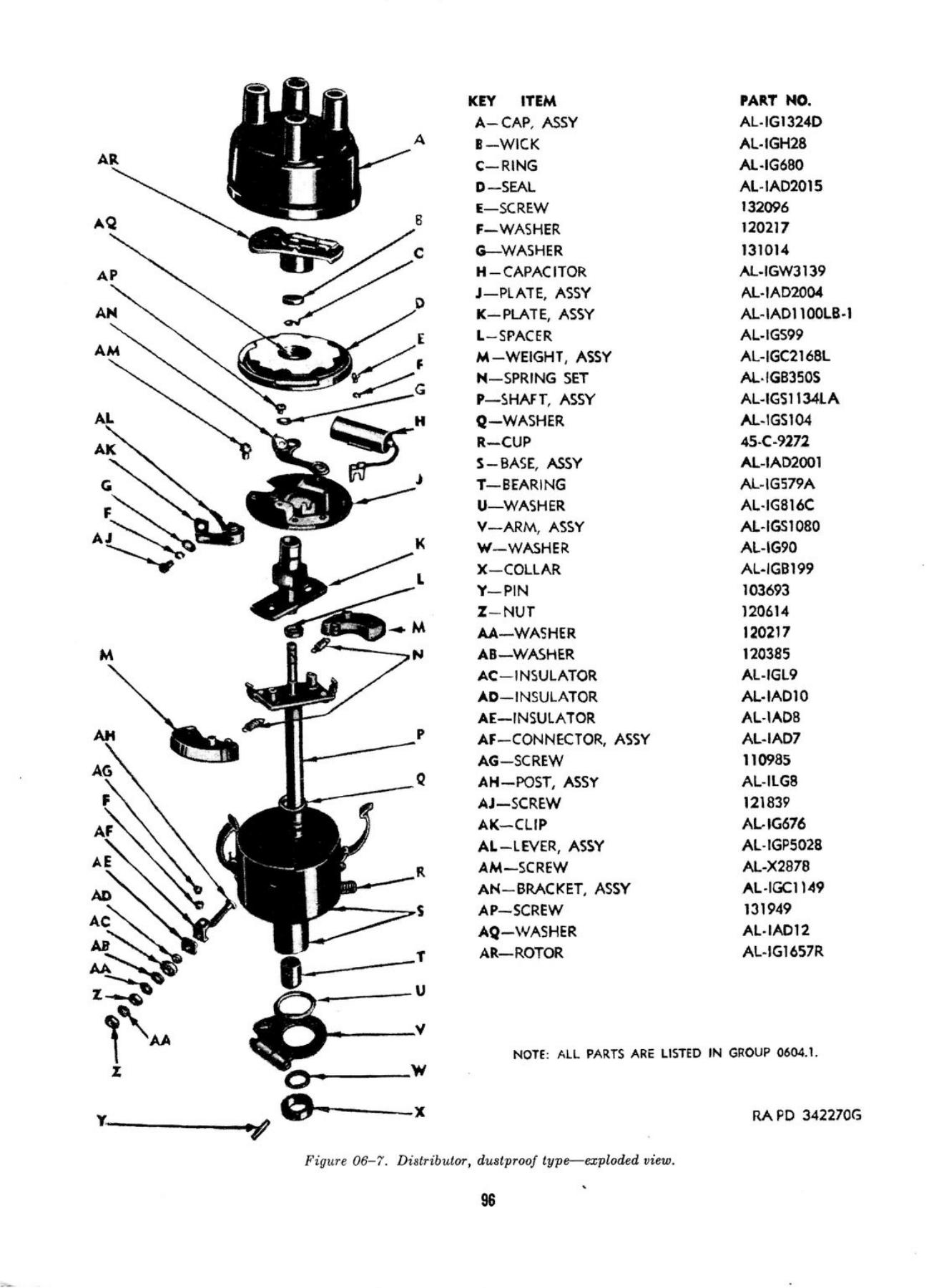

Ignition distributor - open type
Ignition distributor — shielded type
Lighting 6 V

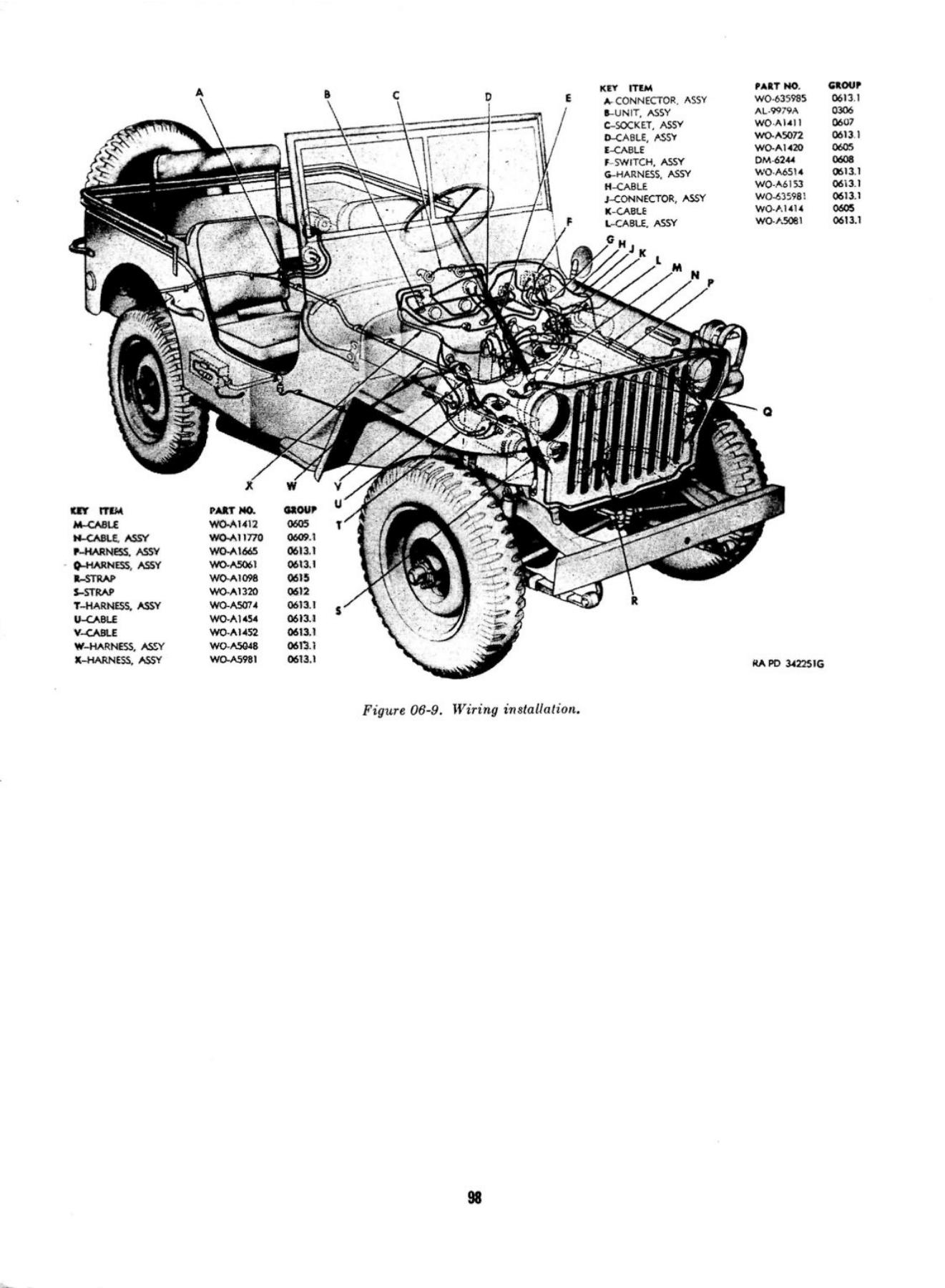

Electrical system
Original catalogs and service manual
ORD 9 SNL G-503 — Full Parts Catalog (PDF)
TM 10-1513 - Service Chapter for this assembly (PDF)
Page numbers with drawings indicate pages of the PDF file; printed numbering may vary. For the chassis, body and some equipment, an overview of the assembly is shown, according to the original catalog.
Original ORD · PDF 94
