Engine Group

Parts Search:

1

ENGINE GROUP

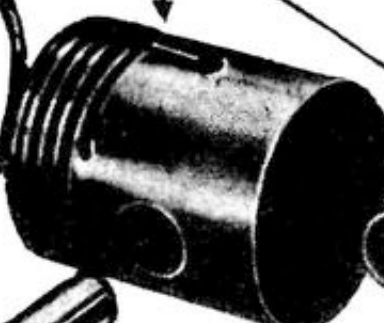

VEHICLES MODEL	Block & Bearings	Block & Bearings	Block & Bearings W/Pistons	Block & Bearings W/Pistons	Drain Cock	Cylinder Head Bolt (Ass Req)	Cylinder Head Stud (Ass Req)
No. of Units Per Vehicle	1	1	1	1	1
MB	908758Insufficient confirmation · source and note ↗		918014Identity and performance · source and note ↗		A 1126ORD confirmation · source and note ↗		349368MB · AssemblyFord · GPW6065ORD confirmation · source and note ↗
CJ2A	908758		918014		A 1126		349368
CJ3A	908758		918014		A 1126		349368
CJ3B	810874		918089		A 1126	805730
CJ5	810874		918089		A 1126	805730
CJ6	810874		918089		A 1126	805730
M38	917967				A 1126
M38A1	918082				A 1126		349368
DJ3A	908758		918014		A 1126
463	908758		918014		A 1126		349368
4X463	908758		918014		A 1126		349368
473	810874		918089		A 1126	805730
4X473	810874		918089		A 1126	805730
475	810874		918089		A 1126	805730
2X475	810874		918089		A 1126	805730
4X475	810874		918089		A 1126	805730
6-226-2X4	915866		736252		A 1126	733955
6-226-4X4	915866		736252		A 1126	733955
4WD	908758		918014		A 1126		349368
473-4WD	810874		918089		A 1126	805730
475-4WD	810874		918089		A 1126	805730
6-226-4WD	915866		736252		A 1126	733955
FC150	810874		918089		A 1126	805730
FC170	915866		736252		A 1126	733955

2

ENGINE GROUP


VEHICLES MODEL	Engine Assy W/All Access.	Engine Assy W/All Access.	Engine Assy W/All Access.	Engine Assy Short Block	Engine Assy Short Block	Engine Assy Short Block
MB	804051Insufficient confirmation · source and note ↗			647711Identity and performance · source and note ↗
CJ2A	811556			647711
CJ3A	810796			647711
CJ3B		809351			804811
CJ5		809351			804811
CJ6		809351			804811
M38	806007			802025
M38A1		806878			804811
DJ3A	910641			647711
463	811557			647711
4X463	811558			647711
473		811559			804811
4X473		811560			804811
475		810623			804811
2X475		810624			804811
4X475		810624			804811
6-226-2X4			914823			908058
6-226-4X4			914819			908058
4WD	811558			647711
473-4WD		811560			804811
475-4WD		810624			804811
6-226-4WD			914819			908058
FC150		915602			804811
FC170			915884			908058

3

ENGINE GROUP


VEHICLES MODEL	Engine Assy W/All Access.	Engine Assy W/All Access.	Engine Assy W/All Access.	Engine Assy Short Block	Engine Assy Short Block	Engine Assy Short Block
No. of Units Per Vehicle	1	1	1	1	1	1
MB	804051Insufficient confirmation · source and note ↗			647711Identity and performance · source and note ↗
CJ2A	811556			647711
CJ3A	810796			647711
CJ3B		809351			804811
CJ5		809351			804811
CJ6		809351			804811
M38	806007			802025
M38A1		806878			804811
DJ3A	910641			647711
463	811557			647711
4X463	811558			647711
473		811559			804811
4X473		811560			804811
475		810623			804811
2X475		810624			804811
4X475		810624			804811
6-226-2X4			914823			908058
6-226-4X4			914819			908058
4WD	811558			647711
473-4WD		811560			804811
475-4WD		810624			804811
6-226-4WD			914819			908058
FC150		915602			804811
FC170			915884			908058

4

ENGINE GROUP

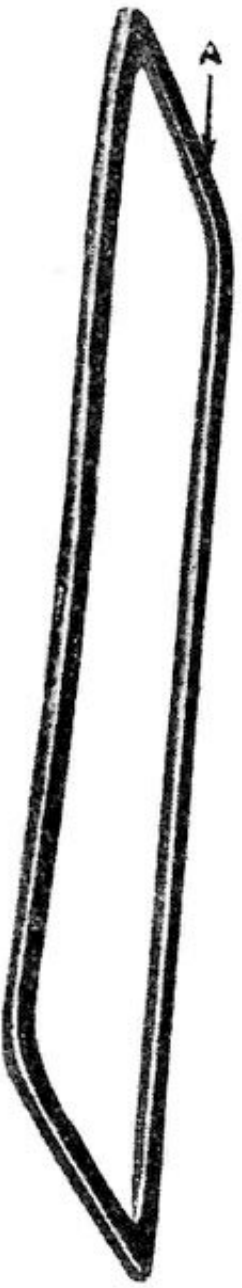

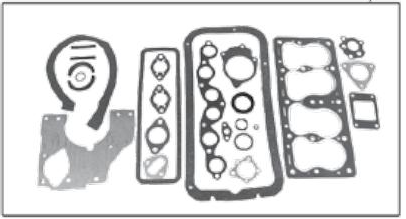

VEHICLES MODEL	Gasket Set Overhaul	Gasket Set Overhaul	Gasket Set Valve Job	Gasket Set Valve Job
No. of Units Per Vehicle	1	1	1	1
MB	A 17401Documented alternative · source and note ↗		A 17402Documented alternative · source and note ↗
CJ2A	810584		802030
CJ3A	810584		802030
CJ3B	810585		801344
CJ5	810585		801344
CJ6	810585		801344
M38	648054		648055
M38A1	807924		807929
DJ3A	810584		802030
463	810584		802030
4X463	810584		802030
473	810585		801344
4X473	810585		801344
475	810585		801344
2X475	810585		801344
4X475	810585		801344
6-226-2X4		907579		907580
6-226-4X4		907579		907580
4WD	810584		802030
473-4WD	810585		801344
475-4WD	810585		801344
6-226-4WD		907579		907580
FC150	810585		801344
FC170		907579		907580

5

ENGINE GROUP

	Original MB head A1534 as comparison view for replacement head; check performance.ORD 9 · PDF 13 · view of type / assembly			MB · ORD 1949 · PDF 13 · F		MB · ORD 1949 · PDF 82 · Water outlet connection	MB · ORD 1949 · PDF 82 · Outlet port seal
VEHICLES MODEL	Cylinder Head	Cylinder Head	Cylinder Head	Cylinder Head Gasket	Cylinder Head Gasket	Water Outlet Elbow	Water Outlet Gasket
No. of Units Per Vehicle	1	1	1	1	1	1	1

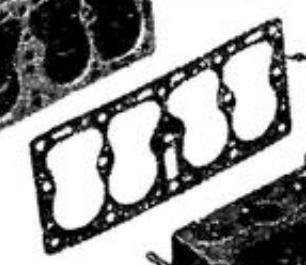

MB	640161Replacement application · source and note ↗			A 8558MB · F		A 1192MB · assembly view	639650MB · AssemblyFord · GPW8255

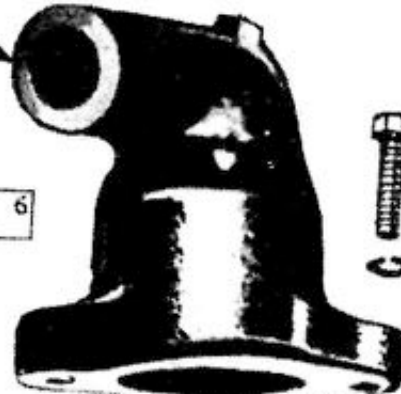

CJ2A	640161			638540		A 1192	639650
CJ3A	640161			638540		A 1192	639650
CJ3B		800572		807036		800293	648852
CJ5		800572		807036		800293	648852
CJ6		800572		807036		800293	648852
M38	800376			638540		A 1192	639650
M38A1		806266		807036		800293	648852
DJ3A	640161			638540		A 1192	639650
463	640161			638540		A 1192	639650
4X463	640161			638540		A 1192	639650
473		800572		807036		800293	648852
4X473		800572		807036		800293	648852
475		800572		807036		800293	648852
2X475		800572		807036		800293	648852
4X475		800572		807036		800293	648852
6-226-2X4		905742		928731		731650	731377
6-226-4X4		905742		928731		731650	731377
4WD	640161			638540		A 1192	639650
473-4WD		800572		807036		800293	648852
475-4WD		800572		807036		800293	648852
6-226-4WD		905742		928731		731650	731377
FC150		800572		807036		800293	648852
FC170		905742		928731		914830	731377

6

ENGINE GROUP

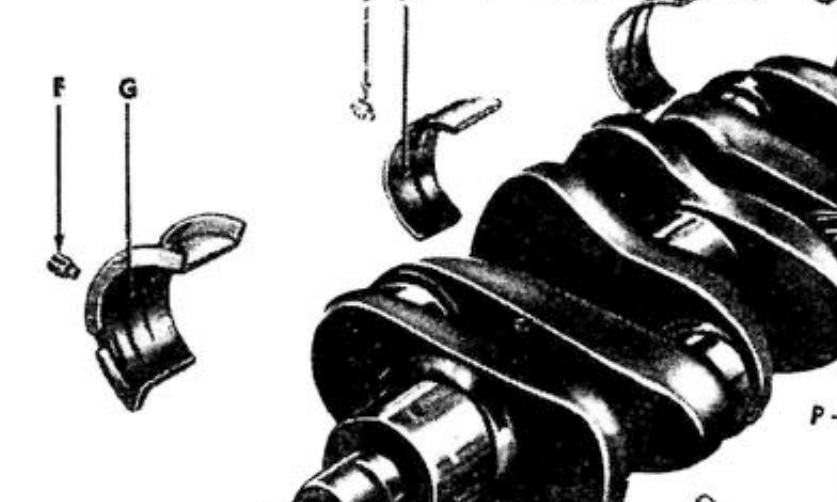

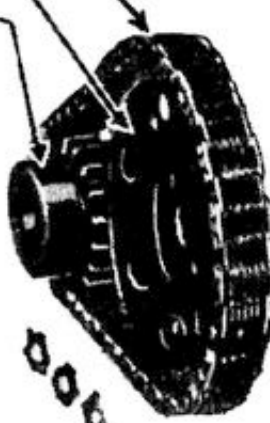

	MB · ORD 1949 · PDF 13 · L · crankshaft		MB · ORD 1949 · PDF 15 · M / N / P · chain and sprockets included	MB · ORD 1949 · PDF 13 · V · bottom drawing
VEHICLES MODEL	Crankshaft Assy	Crankshaft Gear	Crankshaft Sprocket	Crankshaft Starting Nut	Crankshaft Pulley Nut	Crankshaft Pulley Single	Crankshaft Pulley Double
No. of Units Per Vehicle	1	1	1	1	1	1	1
MB	638121MB · L		638459MB · Assembly	387633MB · V	638513Replacement application · source and note ↗	645623Replacement application · source and note ↗
CJ2A	642969		638459		638513		646698
CJ3A	647078	641282			638513		646698
CJ3B	647078	641282			638513		646698
CJ5	647078	641282			638513		646698
CJ6	647078	641282			638513		646698
M38	647078	641282			638513		646698
M38A1	647078	641282			638513		649722
DJ3A	647078	641282			638513		649722
463	642969		638459	387633	638513	645623
4X463	647078	641282			638513		646698
473	647078	641282			638513	645623
4X473	647078	641282			638513	645623
475	647078	641282			638513	645623
2X475	647078	641282			638513	645623
4X475	647078	641282			638513	645623
6-226-2X4	921964		733569
6-226-4X4	921964		733569
4WD	647078	641282		387633	638513		646698
473-4WD	647078	641282			638513	645623
475-4WD	647078	641282			638513	645623
6-226-4WD	921964		733569
FC150	647078	641282			638513
FC170	921964		733569				646698

7

ENGINE GROUP

			MB · ORD 1949 · PDF 13 · Z	MB · ORD 1949 · PDF 13 · M	MB · ORD 1949 · PDF 13 · K	MB · ORD 1949 · PDF 13 · S · bottom drawing
VEHICLES MODEL	Crankshaft Front Oil Seal	Crankshaft Rear Oil Seal	Crankshaft Front Packing	Crankshaft Rear Packing	Crankshaft Rear Cap Packing	Crankshaft Oil Slinger	Vibration Damper
No. of Units Per Vehicle	1	2	1	2	2	1	1
MB	647468Replacement application · source and note ↗	800093Replacement application · source and note ↗	637098MB · Z	637237MB · M	637790MB · К	375877MB · С All views (2) Motor Go-Devil · С Motor Go-Devil · assembly
CJ2A	647468	800093			637790	375877
CJ3A	647468	800093			637790	375877
CJ3B	647468	800093			637790	375877
CJ5	647468	800093			637790	375877
CJ6	647468	800093			637790	375877
M38	647468	800093			637790	375877
M38A1	647468	800093			637790	375877
DJ3A	647468	800093			637790	375877
463	647468	800093			637790	375877
4X463	647468	800093			637790	375877
473	647468	800093			637790	375877
4X473	647468	800093			637790	375877
475	647468	800093			637790	375877
2X475	647468	800093			637790	375877
4X475	647468	800093			637790	375877
6-226-2X4							927852
6-226-4X4							927852
4WD	647468	800093			637790	375877
473-4WD	647468	800093			637790	375877
475-4WD	647468	800093			637790	375877
6-226-4WD							927852
FC150	647468	800093			637790	375877
FC170							927852

8

ENGINE GROUP


VEHICLES MODEL	Front Bearing Filler Block	Rear Bearing Seal Kit
No. of Units Per Vehicle	1	1
MB
CJ2A
CJ3A
CJ3B
CJ5
CJ6
M38
M38A1
DJ3A
463
4X463
473
4X473
475
2X475
4X475
6-226-2X4	925955	922122
6-226-4X4	925955	922122
4WD
473-4WD
475-4WD
6-226-4WD	925955	922122
FC150
FC170	925955	922122

9

ENGINE GROUP

	MB · ORD 1949 · PDF 13 · S · made to measure	Front main bearing — type and position. Measure and application are checked separately.ORD 9 · PDF 13 · view of type / assembly	MB · ORD 1949 · PDF 13 · S · made to measure	MB · ORD 1949 · PDF 13 · S · made to measure	MB · ORD 1949 · PDF 13 · S · made to measure	Front main bearing — type and position. Measure and application are checked separately.ORD 9 · PDF 13 · view of type / assembly	Front main bearing — type and position. Measure and application are checked separately.ORD 9 · PDF 13 · view of type / assembly
VEHICLES MODEL	Crankshaft Bearing Front Std	Crankshaft Bearing Front .002	Crankshaft Bearing Front .010	Crankshaft Bearing Front .020	Crankshaft Bearing Front .030	Crankshaft Bearing Front .040	Crankshaft Bearing Front .060
No. of Units Per Vehicle	1	1	1	1	1	1	1
MB	645160MB · С	804333Identity and performance · source and note ↗Compare original view ↗	645163MB · Assembly	645166MB · Assembly	645169MB · Assembly	645160-40Remedial action · check PN · source and note ↗Compare original view ↗	645160-60Remedial action · check PN · source and note ↗Compare original view ↗
CJ2A	645160	804333	645163	645166	645169	645160-40	645160-60
CJ3A	645160	804333	645163	645166	645169	645160-40	645160-60
CJ3B	645160	804333	645163	645166	645169	645160-40	645160-60
CJ5	645160	804333	645163	645166	645169	645160-40	645160-60
CJ6	645160	804333	645163	645166	645169	645160-40	645160-60
M38	645160	804333	645163	645166	645169	645160-40	645160-60
M38A1	645160	804333	645163	645166	645169	645160-40	645160-60
DJ3A	645160	804333	645163	645166	645169	645160-40	645160-60
463	645160	804333	645163	645166	645169	645160-40	645160-60
4X463	645160	804333	645163	645166	645169	645160-40	645160-60
473	645160	804333	645163	645166	645169	645160-40	645160-60
4X473	645160	804333	645163	645166	645169	645160-40	645160-60
475	645160	804333	645163	645166	645169	645160-40	645160-60
2X475	645160	804333	645163	645166	645169	645160-40	645160-60
4X475	645160	804333	645163	645166	645169	645160-40	645160-60
6-226-2X4	912794	914307	914308	914311	912794-30	912794-40	912794-60
6-226-4X4	912794	914307	914308	914311	912794-30	912794-40	912794-60
4WD	645160	804333	645163	645166	645169	645160-40	645160-60
473-4WD	645160	804333	645163	645166	645169	645160-40	645160-60
475-4WD	645160	804333	645163	645166	645169	645160-40	645160-60
6-226-4WD	912794	914307	914308	914311	912794-30	912794-40	912794-60
FC150	645160	804333	645163	645166	645169	645160-40	645160-60
FC170	912794	914307	914308	914311	912794-30	912794-40	912794-60

10

ENGINE GROUP

	MB · ORD 1949 · PDF 13 · R · made to measure	Intermediate main bearing — type and position. Measure and application are checked separately.ORD 9 · PDF 13 · view of type / assembly	MB · ORD 1949 · PDF 13 · R · made to measure	MB · ORD 1949 · PDF 13 · R · made to measure	MB · ORD 1949 · PDF 13 · R · made to measure	Intermediate main bearing — type and position. Measure and application are checked separately.ORD 9 · PDF 13 · view of type / assembly	Intermediate main bearing — type and position. Measure and application are checked separately.ORD 9 · PDF 13 · view of type / assembly
VEHICLES MODEL	Crankshaft Bearing Center Std	Crankshaft Bearing Center .002	Crankshaft Bearing Center .010	Crankshaft Bearing Center .020	Crankshaft Bearing Center .030	Crankshaft Bearing Center .040	Crankshaft Bearing Center .060
No. of Units Per Vehicle	1 or 2	1 or 2	1 or 2	1 or 2	1 or 2	1 or 2	1 or 2
MB	645161MB · R	804334Identity and performance · source and note ↗Compare original view ↗	645164MB · Assembly	645167MB · Assembly	645170MB · Assembly	645161-40Remedial action · check PN · source and note ↗Compare original view ↗	645161-60Remedial action · check PN · source and note ↗Compare original view ↗
CJ2A	645161	804334	645164	645167	645170	645161-40	645161-60
CJ3A	645161	804334	645164	645167	645170	645161-40	645161-60
CJ3B	645161	804334	645164	645167	645170	645161-40	645161-60
CJ5	645161	804334	645164	645167	645170	645161-40	645161-60
CJ6	645161	804334	645164	645167	645170	645161-40	645161-60
M38	645161	804334	645164	645167	645170	645161-40	645161-60
M38A1	645161	804334	645164	645167	645170	645161-40	645161-60
DJ3A	645161	804334	645164	645167	645170	645161-40	645161-60
463	645161	804334	645164	645167	645170	645161-40	645161-60
4X463	645161	804334	645164	645167	645170	645161-40	645161-60
473	645161	804334	645164	645167	645170	645161-40	645161-60
4X473	645161	804334	645164	645167	645170	645161-40	645161-60
475	645161	804334	645164	645167	645170	645161-40	645161-60
2X475	645161	804334	645164	645167	645170	645161-40	645161-60
4X475	645161	804334	645164	645167	645170	645161-40	645161-60
6-226-2X4	912795	914313	914314	914317	912795-30	912795-40	912795-60
6-226-4X4	912795	914313	914314	914317	912795-30	912795-40	912795-60
4WD	645161	804334	645164	645167	645170	645161-40	645161-60
473-4WD	645161	804334	645164	645167	645170	645161-40	645161-60
475-4WD	645161	804334	645164	645167	645170	645161-40	645161-60
6-226-4WD	912795	914313	914314	914317	912795-30	912795-40	912795-60
FC150	645161	804334	645164	645167	645170	645161-40	645161-60
FC170	912795	914313	914314	914317	912795-30	912795-40	912795-60

11

ENGINE GROUP

	MB · ORD 1949 · PDF 13 · L · made to measure	Rear main bearing — type and position. Measure and application are checked separately.ORD 9 · PDF 13 · view of type / assembly	MB · ORD 1949 · PDF 13 · L · made to measure	MB · ORD 1949 · PDF 13 · L · made to measure	MB · ORD 1949 · PDF 13 · L · made to measure	Rear main bearing — type and position. Measure and application are checked separately.ORD 9 · PDF 13 · view of type / assembly	Rear main bearing — type and position. Measure and application are checked separately.ORD 9 · PDF 13 · view of type / assembly
VEHICLES MODEL	Crankshaft Bearing Rear Std	Crankshaft Bearing Rear .002	Crankshaft Bearing Rear .010	Crankshaft Bearing Rear .020	Crankshaft Bearing Rear .030	Crankshaft Bearing Rear .040	Crankshaft Bearing Rear .060
No. of Units Per Vehicle	1	1	1	1	1	1	1
MB	645162MB · L	804335Identity and performance · source and note ↗Compare original view ↗	645165MB · Assembly	645168MB · Assembly	645171MB · Assembly	645162-40Remedial action · check PN · source and note ↗Compare original view ↗	645162-60Remedial action · check PN · source and note ↗Compare original view ↗
CJ2A	645162	804335	645165	645168	645171	645162-40	645162-60
CJ3A	645162	804335	645165	645168	645171	645162-40	645162-60
CJ3B	645162	804335	645165	645168	645171	645162-40	645162-60
CJ5	645162	804335	645165	645168	645171	645162-40	645162-60
CJ6	645162	804335	645165	645168	645171	645162-40	645162-60
M38	645162	804335	645165	645168	645171	645162-40	645162-60
M38A1	645162	804335	645165	645168	645171	645162-40	645162-60
DJ3A	645162	804335	645165	645168	645171	645162-40	645162-60
463	645162	804335	645165	645168	645171	645162-40	645162-60
4X463	645162	804335	645165	645168	645171	645162-40	645162-60
473	645162	804335	645165	645168	645171	645162-40	645162-60
4X473	645162	804335	645165	645168	645171	645162-40	645162-60
475	645162	804335	645165	645168	645171	645162-40	645162-60
2X475	645162	804335	645165	645168	645171	645162-40	645162-60
4X475	645162	804335	645165	645168	645171	645162-40	645162-60
6-226-2X4	912796	914319	914320	914323	912796-30	912796-40	912796-60
6-226-4X4	912796	914319	914320	914323	912796-30	912796-40	912796-60
4WD	645162	804335	645165	645168	645171	645162-40	645162-60
473-4WD	645162	804335	645165	645168	645171	645162-40	645162-60
475-4WD	645162	804335	645165	645168	645171	645162-40	645162-60
6-226-4WD	912796	914319	914320	914323	912796-30	912796-40	912796-60
FC150	645162	804335	645165	645168	645171	645162-40	645162-60
FC170	912796	914319	914320	914323	912796-30	912796-40	912796-60

12

ENGINE GROUP

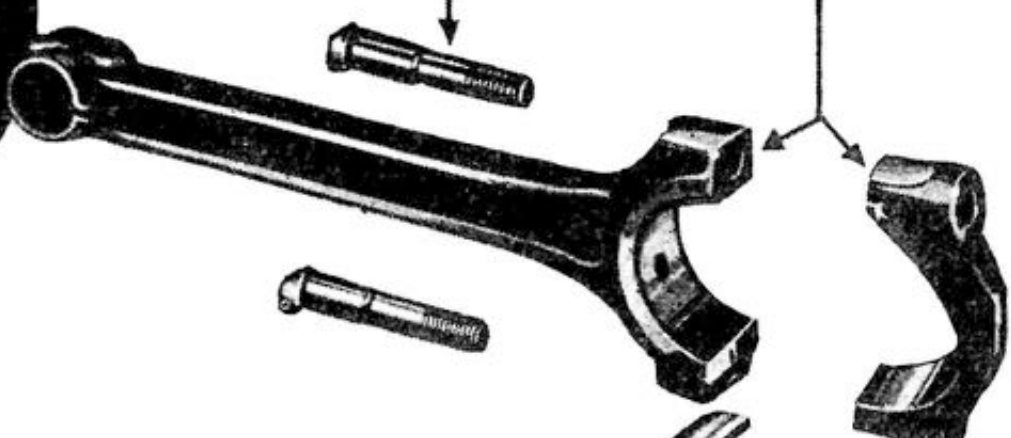

	MB · ORD 1949 · PDF 14 · H · version according to cylinder number	MB · ORD 1949 · PDF 14 · H · version according to cylinder number			MB · ORD 1949 · PDF 14 · G	Nut connecting rod — comparison view of type from original assembly.ORD 9 · PDF 14 · view of type / assembly
VEHICLES MODEL	Connecting Gen #1 & 3	Connecting Gen #2 & 4	Connecting Gen #1,3 & 5	Connecting Gen #2,4 & 6	Connecting Gen Bolt	Connecting Gen Nut	Connecting Gen Lock Nut
No. of Units Per Vehicle	2	2	3	3
MB	640071MB · H	640072MB · AH			640070MB · G	636962ORD confirmation · source and note ↗	G 107381Replacement application · source and note ↗
CJ2A	641774	641775			641768	641769	G 107823
CJ3A	641774	641775			641768	641769	G 107823
CJ3B	641774	641775			641768	641769	G 107823
CJ5	641774	641775			641768	641769	G 107823
CJ6	641774	641775			641768	641769	G 107823
M38	641774	641775			641768	641769	G 107823
M38A1	641774	641775			641768	641769	G 107823
DJ3A	641774	641775			641768	641769	G 107823
463	641774	641775			641768	641769	G 107823
4X463	641774	641775			641768	641769	G 107823
473	641774	641775			641768	641769	G 107823
4X473	641774	641775			641768	641769	G 107823
475	641774	641775			641768	641769	G 107823
2X475	641774	641775			641768	641769	G 107823
4X475	641774	641775			641768	641769	G 107823
6-226-2X4			731175	731176	711058	711057
6-226-4X4			731175	731176	711058	711057
4WD	641774	641775			641768	641769	G 107823
473-4WD	641774	641775			641768	641769	G 107823
475-4WD	641774	641775			641768	641769	G 107823
6-226-4WD			731175	731176	711058	711057
FC150	641774	641775			641768	641769	G 107823
FC170			731175	731176	711058	711057

13

ENGINE GROUP

	MB · ORD 1949 · PDF 14 · L · half, measure according to PN	Bearing connecting rod — type view; does not determine the remedial measure.ORD 9 · PDF 14 · view of type / assembly	MB · ORD 1949 · PDF 14 · L · half, measure according to PN	MB · ORD 1949 · PDF 14 · L · half, measure according to PN	MB · ORD 1949 · PDF 14 · L · half, measure according to PN	Bearing connecting rod — type view; does not determine the remedial measure.ORD 9 · PDF 14 · view of type / assembly	Bearing connecting rod — type view; does not determine the remedial measure.ORD 9 · PDF 14 · view of type / assembly
VEHICLES MODEL	Connecting Gen Bearing Std	Connecting Gen Bearing .002	Connecting Gen Bearing .010	Connecting Gen Bearing .020	Connecting Gen Bearing .030	Connecting Gen Bearing .040	Connecting Gen Bearing .060
No. of Units Per Vehicle	4	4	4	4	4	4	4
MB	A 7233MB · AssemblyFord · GPW18330A	A 6975Identity and performance · source and note ↗Compare original view ↗	A 7234MB · AssemblyFord · GPW18330B	A 7235MB · AssemblyFord · GPW18330C	A 7236MB · Assembly	A 7233-40Remedial action · check PN · source and note ↗Compare original view ↗	A 7233-60Remedial action · check PN · source and note ↗Compare original view ↗
CJ2A	A 7233	A 6975	A 7234	A 7235	A 7236	A 7233-40	A 7233-60
CJ3A	A 7233	A 6975	A 7234	A 7235	A 7236	A 7233-40	A 7233-60
CJ3B	A 7233	A 6975	A 7234	A 7235	A 7236	A 7233-40	A 7233-60
CJ5	A 7233	A 6975	A 7234	A 7235	A 7236	A 7233-40	A 7233-60
CJ6	A 7233	A 6975	A 7234	A 7235	A 7236	A 7233-40	A 7233-60
M38	A 7233	A 6975	A 7234	A 7235	A 7236	A 7233-40	A 7233-60
M38A1	A 7233	A 6975	A 7234	A 7235	A 7236	A 7233-40	A 7233-60
DJ3A	A 7233	A 6975	A 7234	A 7235	A 7236	A 7233-40	A 7233-60
463	A 7233	A 6975	A 7234	A 7235	A 7236	A 7233-40	A 7233-60
4X463	A 7233	A 6975	A 7234	A 7235	A 7236	A 7233-40	A 7233-60
473	A 7233	A 6975	A 7234	A 7235	A 7236	A 7233-40	A 7233-60
4X473	A 7233	A 6975	A 7234	A 7235	A 7236	A 7233-40	A 7233-60
475	A 7233	A 6975	A 7234	A 7235	A 7236	A 7233-40	A 7233-60
2X475	A 7233	A 6975	A 7234	A 7235	A 7236	A 7233-40	A 7233-60
4X475	A 7233	A 6975	A 7234	A 7235	A 7236	A 7233-40	A 7233-60
6-226-2X4	A 7233	A 6975	A 7234	A 7235	A 7236	A 7233-40	A 7233-60
6-226-4X4	A 7233	A 6975	A 7234	A 7235	A 7236	A 7233-40	A 7233-60
4WD	A 7233	A 6975	A 7234	A 7235	A 7236	A 7233-40	A 7233-60
473-4WD	A 7233	A 6975	A 7234	A 7235	A 7236	A 7233-40	A 7233-60
475-4WD	A 7233	A 6975	A 7234	A 7235	A 7236	A 7233-40	A 7233-60
6-226-4WD	A 7233	A 6975	A 7234	A 7235	A 7236	A 7233-40	A 7233-60
FC150	A 7233	A 6975	A 7234	A 7235	A 7236	A 7233-40	A 7233-60
FC170	A 7233	A 6975	A 7234	A 7235	A 7236	A 7233-40	A 7233-60

14

ENGINE GROUP


VEHICLES MODEL	Connecting Gen Bearing Cyl 1-3-5 Std	Connecting Gen Bearing Cyl 1-3-5 .002	Connecting Gen Bearing Cyl 1-3-5 .010	Connecting Gen Bearing Cyl 1-3-5 .020	Connecting Gen Bearing Cyl 1-3-5 .030	Connecting Gen Bearing Cyl 1-3-5 .040	Connecting Gen Bearing Cyl 1-3-5 .060
No. of Units Per Vehicle	3	3	3	3	3	3	3
MB
CJ2A
CJ3A
CJ3B
CJ5
CJ6
M38
M38A1
DJ3A
463
4X463
473
4X473
475
2X475
4X475
6-226-2X4	912797	914325	914326	914329	912797-30	912797-40	912797-60
6-226-4X4	912797	914325	914326	914329	912797-30	912797-40	912797-60
4WD
473-4WD
475-4WD
6-226-4WD	912797	914325	914326	914329	912797-30	912797-40	912797-60
FC150
FC170	912797	914325	914326	914329	912797-30	912797-40	912797-60

15

ENGINE GROUP


VEHICLES MODEL	Connecting Gen Bearing Cyl 2-4-6 Std	Connecting Gen Bearing Cyl 2-4-6 .002	Connecting Gen Bearing Cyl 2-4-6 .010	Connecting Gen Bearing Cyl 2-4-6 .020	Connecting Gen Bearing Cyl 2-4-6 .030	Connecting Gen Bearing Cyl 2-4-6 .040	Connecting Gen Bearing Cyl 2-4-6 .060
No. of Units Per Vehicle	3	3	3	3	3	3	3
MB
CJ2A
CJ3A
CJ3B
CJ5
CJ6
M38
M38A1
DJ3A
463
4X463
473
4X473
475
2X475
4X475
6-226-2X4	912798	914331	914332	914335	912798-30	912798-40	912798-60
6-226-4X4	912798	914331	914332	914335	912798-30	912798-40	912798-60
4WD
473-4WD
475-4WD
6-226-4WD	912798	914331	914332	914335	912798-30	912798-40	912798-60
FC150
FC170	912798	914331	914332	914335	912798-30	912798-40	912798-60

16

ENGINE GROUP

	Piston alone — original type representation, without pin. The picture does not determine excess.ORD 9 · PDF 14 · view of type / assembly	Piston alone — original type representation, without pin. The picture does not determine excess.ORD 9 · PDF 14 · view of type / assembly	Piston alone — original type representation, without pin. The picture does not determine excess.ORD 9 · PDF 14 · view of type / assembly	Piston alone — original type representation, without pin. The picture does not determine excess.ORD 9 · PDF 14 · view of type / assembly	Piston alone — original type representation, without pin. The picture does not determine excess.ORD 9 · PDF 14 · view of type / assembly	Piston alone — original type representation, without pin. The picture does not determine excess.ORD 9 · PDF 14 · view of type / assembly	Piston alone — original type representation, without pin. The picture does not determine excess.ORD 9 · PDF 14 · view of type / assembly
VEHICLES MODEL	Piston W/Pin Std	Piston W/Pin .010	Piston W/Pin .020	Piston W/Pin .030	Piston W/Pin .040	Piston W/Pin .060	Piston W/Pin .080
No. of Units Per Vehicle	4 or 6	4 or 6	4 or 6	4 or 6	4 or 6	4 or 6	4 or 6
MB	637041MB · E	115996Compare original view ↗Replacement application · source and note ↗	116019Compare original view ↗ORD confirmation · source and note ↗	116020Compare original view ↗ORD confirmation · source and note ↗	116701Compare original view ↗ORD confirmation · source and note ↗	637041-60Compare original view ↗Remedial action · check PN · source and note ↗	637041-80Compare original view ↗Remedial action · check PN · source and note ↗
CJ2A	637041	115996	116019	116020	116701	637041-60	637041-80
CJ3A	801476	801537	801538	801539	801540	801476-60	801476-80
CJ3B	801476	801537	801538	801539	801540	801476-60	801476-80
CJ5	801476	801537	801538	801539	801540	801476-60	801476-80
CJ6	801476	801537	801538	801539	801540	801476-60	801476-80
M38	801476	801537	801538	801539	801540	801476-60	801476-80
M38A1	801476	801537	801538	801539	801540	801476-60	801476-80
DJ3A	801476	801537	801538	801539	801540	801476-60	801476-80
463	637041	115996	116019	116020	116701	637041-60	637041-80
4X463	801476	801537	801538	801539	801540	801476-60	801476-80
473	801476	801537	801538	801539	801540	801476-60	801476-80
4X473	801476	801537	801538	801539	801540	801476-60	801476-80
475	801476	801537	801538	801539	801540	801476-60	801476-80
2X475	801476	801537	801538	801539	801540	801476-60	801476-80
4X475	801476	801537	801538	801539	801540	801476-60	801476-80
6-226-2X4	732120	732121	732122	732123	732124	732126	732120-80
6-226-4X4	732120	732121	732122	732123	732124	732126	732120-80
4WD	637041	115996	116019	116020	116701	637041-60	637041-80
473-4WD	801476	801537	801538	801539	801540	801476-60	801476-80
475-4WD	801476	801537	801538	801539	801540	801476-60	801476-80
6-226-4WD	732120	732121	732122	732123	732124	732126	732120-80
FC150	801476	801537	801538	801539	801540	801476-60	801476-80
FC170	732120	732121	732122	732123	732124	732126	732120-80

17

ENGINE GROUP

	MB · ORD 1949 · PDF 14 · M · piston pin	Piston pin — type view. Excess is not determined by the image.ORD 9 · PDF 14 · view of type / assembly	Piston pin — type view. Excess is not determined by the image.ORD 9 · PDF 14 · view of type / assembly	Piston pin — type view. Excess is not determined by the image.ORD 9 · PDF 14 · view of type / assembly	MB · ORD 1949 · PDF 14 · F · picture 01-8
VEHICLES MODEL	Piston Pin Std	Piston Pin .003	Piston Pin .005	Piston Pin .010	Piston Pin Lock Screw	Piston Pin Bushing
No. of Units Per Vehicle	4 or 6	4 or 6	4 or 6	4 or 6	4	6
MB	636961MB · M	116003ORD confirmation · source and note ↗Compare original view ↗	636961-5Remedial action · check PN · source and note ↗Compare original view ↗	636961-10Remedial action · check PN · source and note ↗Compare original view ↗	632157MB · К All views (2) Motor Go-Devil · К Motor Go-Devil · К
CJ2A	636961	116003	636961-5	636961-10	632157
CJ3A	636961	116003	636961-5	636961-10	632157
CJ3B	636961	116003	636961-5	636961-10	632157
CJ5	636961	116003	636961-5	636961-10	632157
CJ6	636961	116003	636961-5	636961-10	632157
M38	636961	116003	636961-5	636961-10	632157
M38A1	636961	116003	636961-5	636961-10	632157
DJ3A	636961	116003	636961-5	636961-10	632157
463	636961	116003	636961-5	636961-10	632157
4X463	636961	116003	636961-5	636961-10	632157
473	636961	116003	636961-5	636961-10	632157
4X473	636961	116003	636961-5	636961-10	632157
475	636961	116003	636961-5	636961-10	632157
2X475	636961	116003	636961-5	636961-10	632157
4X475	636961	116003	636961-5	636961-10	632157
6-226-2X4	732597	732630	732631	732597-10		701331
6-226-4X4	732597	732630	732631	732597-10		701331
4WD	636961	116003	636961-5	636961-10	632157
473-4WD	636961	116003	636961-5	636961-10	632157
475-4WD	636961	116003	636961-5	636961-10	632157
6-226-4WD	732597	732630	732631	732597-10		701331
FC150	636961	116003	636961-5	636961-10	632157
FC170	732597	732630	732631	732597-10		701331

18

ENGINE GROUP

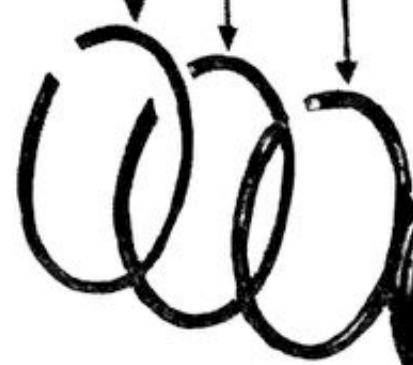

	Original piston link arrangement; profile, coating and measurement are checked separately.ORD 9 · PDF 14 · view of type / assembly	Original piston link arrangement; profile, coating and measurement are checked separately.ORD 9 · PDF 14 · view of type / assembly	Original piston link arrangement; profile, coating and measurement are checked separately.ORD 9 · PDF 14 · view of type / assembly	Original piston link arrangement; profile, coating and measurement are checked separately.ORD 9 · PDF 14 · view of type / assembly	Original piston link arrangement; profile, coating and measurement are checked separately.ORD 9 · PDF 14 · view of type / assembly	Original piston link arrangement; profile, coating and measurement are checked separately.ORD 9 · PDF 14 · view of type / assembly	Original piston link arrangement; profile, coating and measurement are checked separately.ORD 9 · PDF 14 · view of type / assembly
VEHICLES MODEL	Piston Ring Set Normal Std	Piston Ring Set Normal .010	Piston Ring Set Normal .020	Piston Ring Set Normal .030	Piston Ring Set Normal .040	Piston Ring Set Normal .060	Piston Ring Set Normal .080
No. of Units Per Vehicle	1	1	1	1	1	1	1
MB	809045Identity and performance · source and note ↗	809046Documented alternative · source and note ↗	809047Identity and performance · source and note ↗	809048Identity and performance · source and note ↗	809049Identity and performance · source and note ↗	809045-60Remedial action · check PN · source and note ↗	809045-80Remedial action · check PN · source and note ↗
CJ2A	809045	809046	809047	809048	809049	809045-60	809045-80
CJ3A	809045	809046	809047	809048	809049	809045-60	809045-80
CJ3B	809045	809046	809047	809048	809049	809045-60	809045-80
CJ5	809045	809046	809047	809048	809049	809045-60	809045-80
CJ6	809045	809046	809047	809048	809049	809045-60	809045-80
M38	809045	809046	809047	809048	809049	809045-60	809045-80
M38A1	809045	809046	809047	809048	809049	809045-60	809045-80
DJ3A	809045	809046	809047	809048	809049	809045-60	809045-80
463	809045	809046	809047	809048	809049	809045-60	809045-80
4X463	809045	809046	809047	809048	809049	809045-60	809045-80
473	809045	809046	809047	809048	809049	809045-60	809045-80
4X473	809045	809046	809047	809048	809049	809045-60	809045-80
475	809045	809046	809047	809048	809049	809045-60	809045-80
2X475	809045	809046	809047	809048	809049	809045-60	809045-80
4X475	809045	809046	809047	809048	809049	809045-60	809045-80
6-226-2X4	735666	735667	735666-20	735668	735669	735666-60	735666-80
6-226-4X4	735666	735667	735666-20	735668	735669	735666-60	735666-80
4WD	809045	809046	809047	809048	809049	809045-60	809045-80
473-4WD	809045	809046	809047	809048	809049	809045-60	809045-80
475-4WD	809045	809046	809047	809048	809049	809045-60	809045-80
6-226-4WD	735666	735667	735666-20	735668	735669	735666-60	735666-80
FC150	809045	809046	809047	809048	809049	809045-60	809045-80
FC170	735666	735667	735666-20	735668	735669	735666-60	735666-80

19

ENGINE GROUP

	MB · ORD 1949 · PDF 15 · A · example of valve, design according to PNDisplay type or place in assembly. Side, measure and performance are determined by PN.	MB · ORD 1949 · PDF 15 · A · example of valve, design according to PNDisplay type or place in assembly. Side, measure and performance are determined by PN.				MB · ORD 1949 · PDF 15 · B	MB · ORD 1949 · PDF 15 · B
VEHICLES MODEL	Inlet Valve	Exhaust Valve	Exhaust Valve Stellite	Inlet Guide	Exhaust Guide	Valve Spring Inlet	Valve Spring Exhaust
No. of Units Per Vehicle	4 or 6	4 or 6	4 or 6	4 or 6	4 or 6	4 or 6	4 or 6
MB	637182MB · AssemblyFord · GPW6507	637183MB · AssemblyFord · GPW6505		119136Replacement application · source and note ↗	119137Replacement application · source and note ↗	638636MB · B All views (2) Motor Go-Devil · B Motor Go-Devil · L	638636MB · B All views (2) Motor Go-Devil · B Motor Go-Devil · L
CJ2A	637182	637183		119136	119137	638636	638636
CJ3A	637182	637183		119136	119137	638636	638636
CJ3B	646421		928342	119138	119137	800417	638636
CJ5	646421		928342	119138	119137	800417	638636
CJ6	646421		928342	119138	119137	800417	638636
M38	637182	800829		119136	119137	638636	638636
M38A1	646421		928342	119138	119137	800417	638636
DJ3A	637182	637183		119136	119137	638636	638636
463	637182	637183		119136	119137	638636	638636
4X463	637182	637183		119136	119137	638636	638636
473	646421			119138	119137	800417	638636
4X473	646421			119138	119137	800417	638636
475	646421		928342	119138	119137	800417	638636
2X475	646421		928342	119138	119137	800417	638636
4X475	646421		928342	119138	119137	800417	638636
6-226-2X4	736150	711045	925437	701274	701274	711829	711829
6-226-4X4	736150	711045	925437	701274	701274	711829	711829
4WD	637182	637183		119136	119137	638636	638636
473-4WD	646421			119138	119137	800417	711829
475-4WD	646421		928342	119138	119137	800417	638636
6-226-4WD	736150	711045	925437	701274	701274	711829	711829
FC150	646421		928342	119138	119137	800417	638636
FC170	736150	711045	925437	701274	701274	711829	711829

20

ENGINE GROUP

	MB · ORD 1949 · PDF 15 · D	MB · ORD 1949 · PDF 15 · D	MB · ORD 1949 · PDF 15 · C
VEHICLES MODEL	Valve Spring Lock Inlet	Valve Spring Lock Exhaust	Valve Spring Retainer	Inlet Valve Oil Seal	Exhaust Valve Rotocap Kit	Exhaust Valve Rotocap	Valve Seat Insert
No. of Units Per Vehicle	As Req	As Req	As Req	4	1	4 or 6	4 or 6
MB	375994MB · D All views (2) Motor Go-Devil · Д Motor Go-Devil · N	375994MB · D All views (2) Motor Go-Devil · Д Motor Go-Devil · N	637044MB · C All views (2) Motor Go-Devil · C Motor Go-Devil · M
CJ2A	375994	375994	637044
CJ3A	375994	375994	637044
CJ3B	375994	643334	649751	800986	805011	802587	806174
CJ5	375994	643334	649751	800986	805011	802587	806174
CJ6	375994	643334	649751	800986	805011	802587	806174
M38	375994	375994	637044
M38A1	375994	643334	649751	800986	805011	802587	806174
DJ3A	375994	375994	637044
463	375994	375994	637044
4X463	375994	375994	637044
473	375994	643334	649751	800986	805011	802587	806174
4X473	375994	643334	649751	800986	805011	802587	806174
475	375994	643334	649751	800986	805011	802587	806174
2X475	375994	643334	649751	800986	805011	802587	806174
4X475	375994	643334	649751	800986	805011	802587	806174
6-226-2X4	643334	643334	711043			736060	915875
6-226-4X4	643334	643334	711043			736060	915875
4WD	375994	375994	637044
473-4WD	375994	643334	649751	800986	805011	802587
475-4WD	375994	643334	649751	800986	805011	802587	806174
6-226-4WD	643334	643334	711043			736060	915875
FC150	375994	643334	649751	800986	805011	802587	806174
FC170	643334	643334	711043			736060	915875

21

ENGINE GROUP

	Lifter L-head — original type. Remedial action requires a suitable bed.ORD 9 · PDF 15 · view of type / assembly	Lifter L-head — original type. Remedial action requires a suitable bed.ORD 9 · PDF 15 · view of type / assembly	Lifter L-head — original type. Remedial action requires a suitable bed.ORD 9 · PDF 15 · view of type / assembly	Lifter L-head — original type. Remedial action requires a suitable bed.ORD 9 · PDF 15 · view of type / assembly	MB · ORD 1949 · PDF 15 · E	MB · ORD 1949 · PDF 15 · E
VEHICLES MODEL	Valve Tappet Exhaust Std	Valve Tappet Exhaust .004	Valve Tappet Inlet Std	Valve Tappet Inlet .004	Valve Tappet Screw Exhaust	Valve Tappet Screw Inlet	Tappet Screw Lock Nut
No. of Units Per Vehicle	4 or 6	4	4 or 6	4	4 or 6	4 or 6	4
MB	804772Replacement application · source and note ↗	919703Identity and performance · source and note ↗	804772Replacement application · source and note ↗	919703Identity and performance · source and note ↗	640020MB · E All views (2) Motor Go-Devil · E Motor Go-Devil · P	640020MB · E All views (2) Motor Go-Devil · E Motor Go-Devil · P
CJ2A	804772	919703	804772	919703	640020	640020
CJ3A	804772	919703	804772	919703	640020	640020
CJ3B	804772	919703	800550	919727	640020	800173	G 124920
CJ5	804772	919703	800550	919727	640020	800173	G 124920
CJ6	804772	919703	800550	919727	640020	800173	G 124920
M38	804772	919703	804772	919703	640020	640020
M38A1	804772	919703	800550	919727	640020	800173	G 124920
DJ3A	804772	919703	804772	919703	640020	640020
463	804772	919703	804772	919703	640020	640020
4X463	804772	919703	804772	919703	640020	640020
473	804772	919703	800550	919727	640020	800173	G 124920
4X473	804772	919703	800550	919727	640020	800173	G 124920
475	804772	919703	800550	919727	640020	800173	G 124920
2X475	804772	919703	800550	919727	640020	800173	G 124920
4X475	804772	919703	800550	919727	640020	800173	G 124920
6-226-2X4	735300		735300		733070	733070
6-226-4X4	735300		735300		733070	733070
4WD	804772	919703	804772	919703	640020	640020
473-4WD	804772	919703	800550	919727	640020	800173	G 124920
475-4WD	804772	919703	800550	919727	640020	800173	G 124920
6-226-4WD	735300		735300		733070	733070
FC150	804772	919703	800550	919727	640020	800173	G 124920
FC170	735300		735300		733070	733070

22

ENGINE GROUP

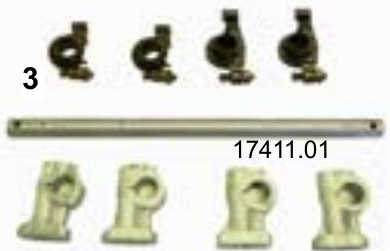

VEHICLES MODEL	Rocker Arm Shaft & Bracket Kit	Rocker Arm Left	Rocker Arm Right	Rocker Arm Shaft	Inlet Valve Push Gen	Rocker Shaft Spring	Rocker Shaft Bracket
No. of Units Per Vehicle	1	2	2	1	4	2	4
MB	805402Not MB L-head · source and note ↗ 4-134 (CJ-3B/CJ-5/CJ-6/M38A1) engine F-head valve mechanism part. The wartime MB/GPW with the L-head engine does not have this assembly.	805375Not MB L-head · source and note ↗ 4-134 (CJ-3B/CJ-5/CJ-6/M38A1) engine F-head valve mechanism part. The wartime MB/GPW with the L-head engine does not have this assembly.	805376Not MB L-head · source and note ↗ 4-134 (CJ-3B/CJ-5/CJ-6/M38A1) engine F-head valve mechanism part. The wartime MB/GPW with the L-head engine does not have this assembly.	805368Not MB L-head · source and note ↗ 4-134 (CJ-3B/CJ-5/CJ-6/M38A1) engine F-head valve mechanism part. The wartime MB/GPW with the L-head engine does not have this assembly.	804622Not MB L-head · source and note ↗ 4-134 (CJ-3B/CJ-5/CJ-6/M38A1) engine F-head valve mechanism part. The wartime MB/GPW with the L-head engine does not have this assembly.	649666Not MB L-head · source and note ↗ 4-134 (CJ-3B/CJ-5/CJ-6/M38A1) engine F-head valve mechanism part. The wartime MB/GPW with the L-head engine does not have this assembly.	802295Not MB L-head · source and note ↗ 4-134 (CJ-3B/CJ-5/CJ-6/M38A1) engine F-head valve mechanism part. The wartime MB/GPW with the L-head engine does not have this assembly.
CJ2A	805402	805375	805376	805368	804622	649666	802295
CJ3A	805402	805375	805376	805368	804622	649666	802295
CJ3B	805402	805375	805376	805368	804622	649666	802295
CJ5	805402	805375	805376	805368	804622	649666	802295
CJ6	805402	805375	805376	805368	804622	649666	802295
M38	805402	805375	805376	805368	804622	649666	802295
M38A1	805402	805375	805376	805368	804622	649666	802295
DJ3A	805402	805375	805376	805368	804622	649666	802295
463	805402	805375	805376	805368	804622	649666	802295
4X463	805402	805375	805376	805368	804622	649666	802295
473	805402	805375	805376	805368	804622	649666	802295
4X473	805402	805375	805376	805368	804622	649666	802295
475	805402	805375	805376	805368	804622	649666	802295
2X475	805402	805375	805376	805368	804622	649666	802295
4X475	805402	805375	805376	805368	804622	649666	802295
6-226-2X4
6-226-4X4
4WD	805402	805375	805376	805368	804622	649666	802295
473-4WD	805402	805375	805376	805368	804622	649666	802295
475-4WD	805402	805375	805376	805368	804622	649666	802295
6-226-4WD
FC150	805402	805375	805376	805368	804622	649666	802295
FC170	805402	805375	805376	805368	804622	649666	802295

23

ENGINE GROUP

	MB · ORD 1949 · PDF 19 · A · valve cover gasket	MB · ORD 1949 · PDF 19 · C · cover screw sealing ring
VEHICLES MODEL	Valve Cover Gasket	Valve Cover Screw Gasket	Rocker Arm Cover Gasket
No. of Units Per Vehicle	1	2	1
MB	630305MB · AssemblyFord · GPW6521	51875MB · C
CJ2A	630305	51875
CJ3A	630305	51875
CJ3B	630305	51875	648798
CJ5	630305	51875	648798
CJ6	630305	51875	648798
M38	630305	51875
M38A1	630305	51875	648798
DJ3A	630305	51875
463	630305	51875
4X463	630305	51875
473	630305	51875	648798
4X473	630305	51875	648798
475	630305	51875	648798
2X475	630305	51875	648798
4X475	630305	51875	648798
6-226-2X4	706158
6-226-4X4	706158
4WD	630305	51875
473-4WD	630305	51875	648798
475-4WD	630305	51875	648798
6-226-4WD	706158
FC150	630305	51875	648798
FC170	706158

24

ENGINE GROUP

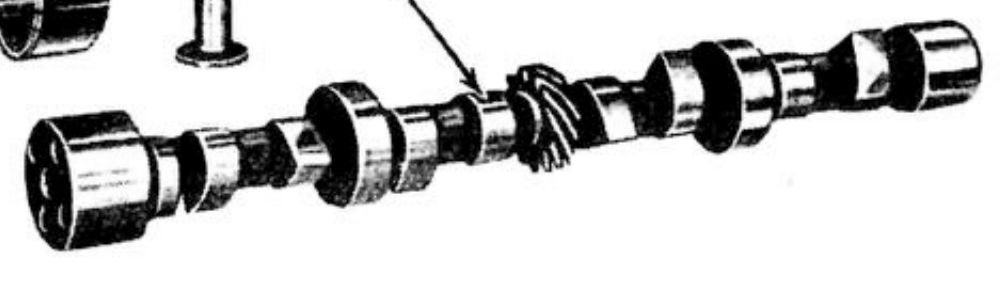

	MB · ORD 1949 · PDF 15 · G	MB · ORD 1949 · PDF 15 · M / N / P · chain and sprockets included	MB · ORD 1949 · PDF 15 · M / N / P · chain and sprockets included		MB · ORD 1949 · PDF 13 · B		MB · ORD 1949 · PDF 16 · J · camshaft sleeve
VEHICLES MODEL	Camshaft	Timing Chain	Camshaft Sprocket	Camshaft Gear	Timing Cover Gasket	Camshaft Thrust Wages	Camshaft Bushing
No. of Units Per Vehicle	1	1	1	1	1	1	1
MB	637065MB · assembly view	638457MB · AssemblyFord · GPW6260	638458MB · AssemblyFord · GPW6256		630365MB · B		645595MB · assembly view
CJ2A	641284	638457	638458	641283	630365	802576	645595
CJ3A	641284			641283	630365	802576	645595
CJ3B	800517			641283	630365	802576	645595
CJ5	800517			641283	630365	802576	645595
CJ6	800517			641283	630365	802576	645595
M38	641284			641283	630365	802576	645595
M38A1	800517			641283	630365	802576	645595
DJ3A	641284			641283	630365	802576	645595
463	641284			641283	630365	802576	645595
4X463	641284			641283	630365	802576	645595
473	800517			641283	630365	802576	645595
4X473	800517			641283	630365	802576	645595
475	800517			641283	630365	802576	645595
2X475	800517			641283	630365	802576	645595
4X475	800517			641283	630365	802576	645595
6-226-2X4	731031	707289	707288			734821
6-226-4X4	731031	707289	707288			734821
4WD	641284			641283	630365	802576	645595
473-4WD	800517			641283	630365	802576	645595
475-4WD	800517			641283	630365	802576	645595
6-226-4WD	731031	707289	707288			734821
FC150	800517			641283	630365	802576	645595
FC170	731031	707289	707288			734821

25

ENGINE GROUP

						Original type timing chain cover; check replacement performance.ORD 9 · PDF 13 · view of type / assembly
VEHICLES MODEL	Camshaft Bushing #1	Camshaft Bushing #2	Camshaft Bushing #3	Camshaft Bushing #4	Camshaft Front Oil Seal	Timing Gear Cover
No. of Units Per Vehicle	1	1	1	1	1	1
MB						644425Replacement application · source and note ↗
CJ2A						643834
CJ3A						643834
CJ3B						643834
CJ5						643834
CJ6						643834
M38						643834
M38A1						643834
DJ3A						643834
463						643834
4X463						643834
473						643834
4X473						643834
475						643834
2X475						643834
4X475						643834
6-226-2X4	711873	711874	729515	729516	706165	706398
6-226-4X4	711873	711874	729515	729516	706165	706398
4WD						643834
473-4WD						643834
475-4WD						643834
6-226-4WD	711873	711874	729515	729516	706165	706398
FC150						643834
FC170	711873	711874	729515	729516	706165	706398

26

ENGINE GROUP

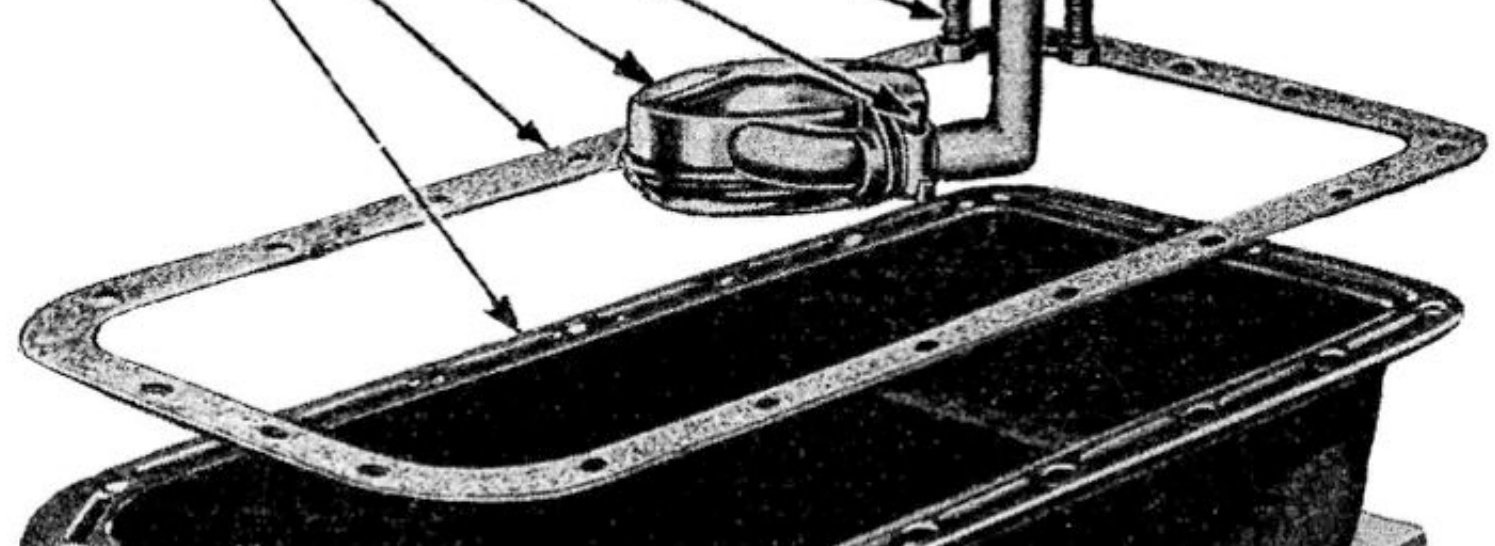

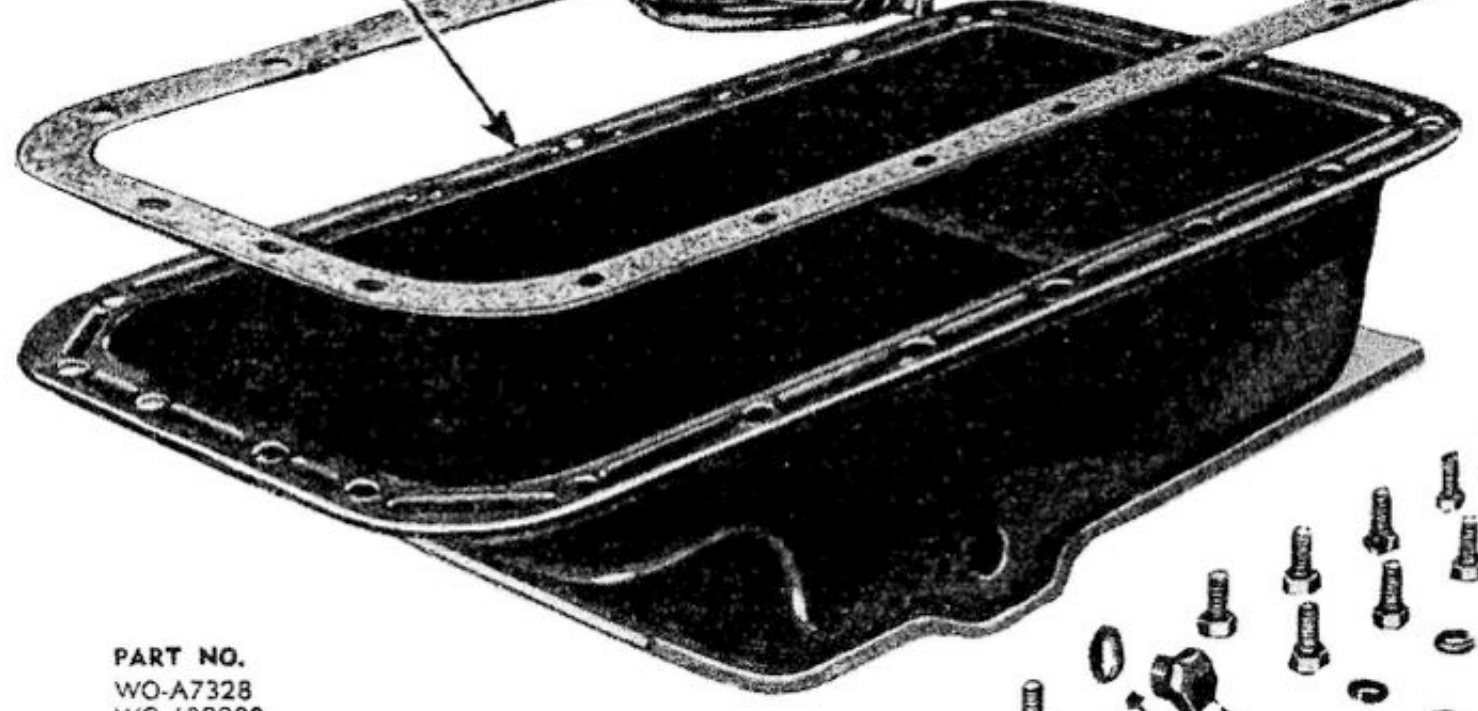

					MB · ORD 1949 · PDF 20 · A · crankcase with separate seal	MB · ORD 1949 · PDF 20 · B · gasket above crankcaseDisplay type or place in assembly. Side, measure and performance are determined by PN.	MB · ORD 1949 · PDF 20 · J · crankcase plug

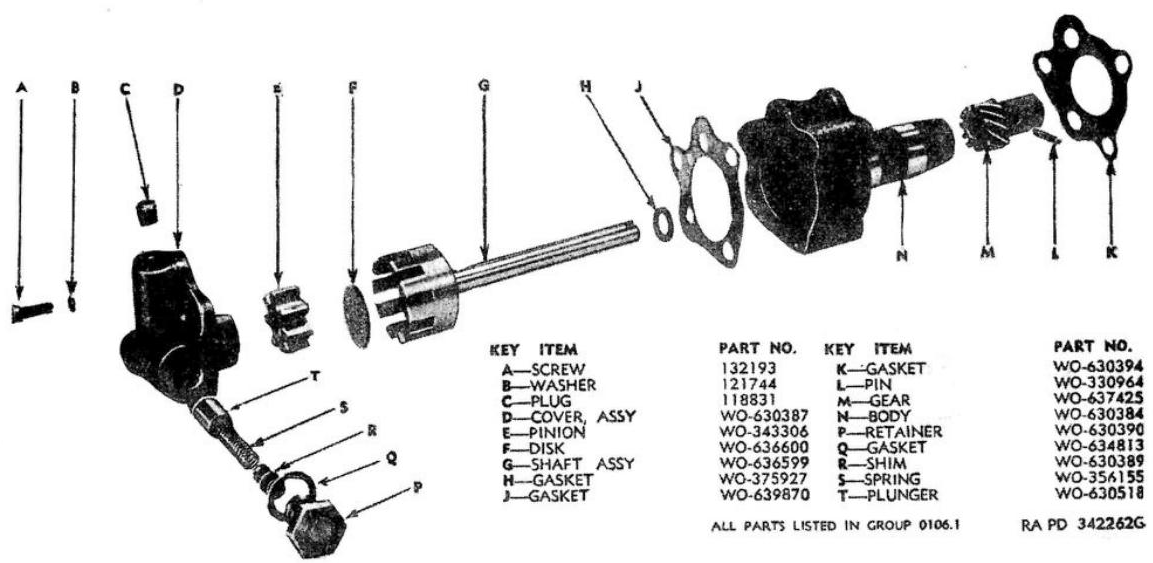

VEHICLES MODEL	Oil Pump	Oil Pump Repair Kit	Oil Pump Driven Gear	Oil Pump Shaft & Rotor	Oil Pan	Oil Pan Gasket	Oil Pan Drain Plow
No. of Units Per Vehicle	1	1	1	1	1	1	1
MB	804769Replacement application · source and note ↗	A 6749ORD confirmation · source and note ↗	637425MB · RFord · GPW6610ORD confirmation · source and note ↗	636599MB · ZFord · GPW6608ORD confirmation · source and note ↗	A 7238MB · AssemblyFord · GPW6675	639980MB · B	639979MB · J
CJ2A	804484	643362	641047	641742	A 7238	639980	639979
CJ3A	804484	643362	641047	641742	A 7238	639980	639979
CJ3B	804484	643362	641047	641742	A 7238	639980	639979
CJ5	804484	643362	641047	641742	A 7238	639980	639979
CJ6	804484	643362	641047	641742	A 7238	639980	639979
M38	804484	643362	641047	641742	A 7238	639980	639979
M38A1	804484	643362	641047	641742	A 7238	639980	639979
DJ3A	804484	643362	641047	641742	A 10297	639980	639979
463	804484	643362	641047	641742	A 10297	639980	639979
4X463	804484	643362	641047	641742	A 10297	639980	639979
473	804484	643362	641047	641742	A 10297	639980	639979
4X473	804484	643362	641047	641742	A 10297	639980	639979
475	804484	643362	641047	641742	A 10297	639980	639979
2X475	804484	643362	641047	641742	A 10297	639980	639979
4X475	804484	643362	641047	641742	A 10297	639980	639979
6-226-2X4	733653		701298	736098	733541	918126	639979
6-226-4X4	733653		701298	736098	733541	918126	639979
4WD	804484	643362	641047	641742	A 10297	639980	639979
473-4WD	804484	643362	641047	641742	A 10297	639980	639979
475-4WD	804484	643362	641047	641742	A 10297	639980	639979
6-226-4WD	733653		701298	736098	733541	918126	639979
FC150	804484	643362	641047	641742	A 7238	639980	639979
FC170	733653		701298	736098	733541	918126	639979

28

ENGINE GROUP

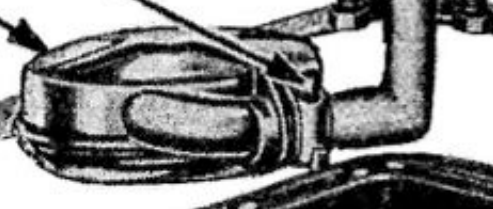

	MB · ORD 1949 · PDF 20 · C · oil float with connection	MB · ORD 1949 · PDF 18 · Original Filter Assembly Parts		MB · ORD 1949 · PDF 18 · A · filter inlet line	MB · ORD 1949 · PDF 18 · M · filter return line

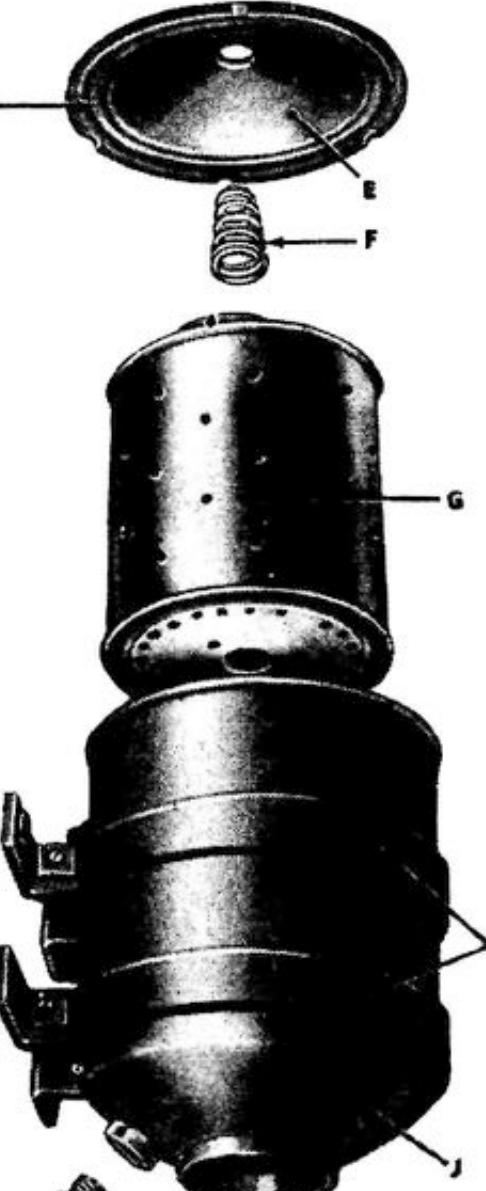

VEHICLES MODEL	Oil Float	Oil Filter Assy	Oil Filter Element	Oil Filter Inlet Tubes	Oil Filter Outlet Tubes	Oil Gauge Tubes
No. of Units Per Vehicle	1	1	1	1	1	1
MB	630396MB · AssemblyFord · GPW6615	A 1230MB · assembly view	119952Replacement application · source and note ↗	A 1197MB · A	A 1198MB · M	A 1450ORD confirmation · source and note ↗
CJ2A	630396	808042	909335	647584	910290	A 1450
CJ3A	630396	808042	909335	647585	910290	808272
CJ3B	630396	808042	909335	647585	910290	808272
CJ5	630396	808042	909335	647585	910290	808272
CJ6	630396	808042	909335	647585	910290
M38	630396	A 1230	A 1236	808359	809916
M38A1	630396	A 1230	A 1236	647584	910290
DJ3A	630396	808042	909335	647585	910290
463	630396	808042	909335	647585	910290
4X463	630396	808042	909335	647585	910290
473	630396	808042	909335	647585	910290
4X473	630396	808042	909335	647585	910290
475	630396	808042	909335	647585	910290
2X475	630396	808042	909335	647585	910290
4X475	630396	808042	909335	647585	910290
6-226-2X4	906605	908272	909335	910290	910290
6-226-4X4	906605	908272	909335	910290	910290
4WD	630396	808042	909335	647585	910290
473-4WD	630396	808042	909335	647585	910290
475-4WD	630396	808042	909335	647585	910290
6-226-4WD	906605	908272	909335	912556	647585
FC150	630396	808042	909335	910290	910290
FC170	906605	908272	909335	910290	910290

29

ENGINE GROUP

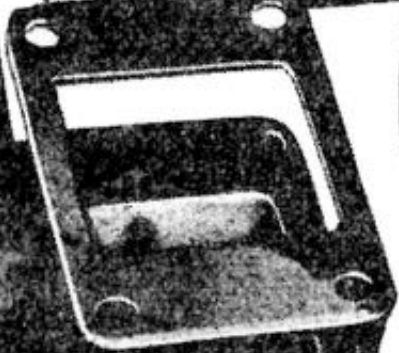

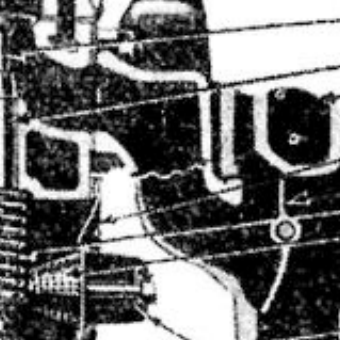

		MB · ORD 1949 · PDF 21 · B · branch sealDisplay type or place in assembly. Side, measure and performance are determined by PN.	MB · ORD 1949 · PDF 11 · F · branch seal in sectionDisplay type or place in assembly. Side, measure and performance are determined by PN.		MB · ORD 1949 · PDF 14 · M · crown on flywheel	MB · ORD 1949 · PDF 14 · L · flywheel sleeve
VEHICLES MODEL	Manifold Gasket Set	Exhaust That Intake Gasket	Manifold That Block Gasket	Flywheel Assy	Flywheel Ring Gear	Flywheel Clutch Shaft Bushing	Starting Engine Shaft Bushing
No. of Units Per Vehicle	1	1	1	1	1	1	1
MB	A 7835Replacement application · source and note ↗	634811MB · B	638640MB · FFord · GPW9448	A 7503MB · WFord · GPW18289ORD confirmation · source and note ↗	635394MB · M	639578MB · L	639734MB · AssemblyFord · GPW11134ORD confirmation · source and note ↗
CJ2A	A 7835	634811	638640	A 7503	635394	639578	639734
CJ3A	A 7835	634811	638640	643562	641955	639578	639734
CJ3B	801345			805454	802925	639578
CJ5	801345			805454	802925	639578
CJ6	801345			805454	802925	639578
M38	A 7835	634811	638640	643562	641955	639578	639734
M38A1	801345			805454	802925	639578
DJ3A	A 7835	634811	638640	643562	641955	639578	639734
463	A 7835	634811	638640	643562	641955	639578	639734
4X463	801345			805454	802925	639578
473	A 7835	634811	638640	643562	641955	639578	639734
4X473	801345			805454	802925	639578
475	801345			805454	802925	639578
2X475	801345			805454	802925	639578
4X475	801345			805454	802925	639578
6-226-2X4		735493	711933	733553	733395
6-226-4X4		735493	711933	745724	733395
4WD	801345			805454	802925	639578
473-4WD	801345			805454	802925	639578
475-4WD	801345			805454	802925	639578
6-226-4WD		735493	711933	745724	733395
FC150	801345			805454	802925	639578
FC170		735493	711933	745724	733395

30

ENGINE GROUP

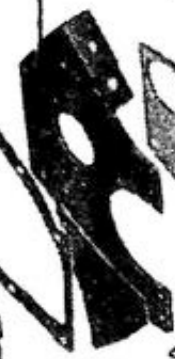

			Engine front plate with timing chain; not for gear ratio.ORD 9 · PDF 13 · view of type / assembly		MB · ORD 1949 · PDF 13 · U
VEHICLES MODEL	Engine Insulator Front	Engine Insulator Rear	Engine Front Wages	Engine Rear Wages	Cylinder Block Front Gasket
No. of Units Per Vehicle	2	1 or 2	1	1	1
MB	638629Replacement application · source and note ↗	A 6156MB · AssemblyFord · GPW6040BORD confirmation · source and note ↗	641143Replacement application · source and note ↗	642280Second version · source and note ↗ Original ORD differentiates the A5121 back plate for the cam chain drive from the 642280B for the gear drive. The manufacturer's table lists a replacement 642280 for the MB, but the version should be selected according to the actual engine installed; a number without a suffix is not sufficient.	630359MB · U
CJ2A	638629	A 6156	641143	642280	641096
CJ3A	638629	A 6156	649919	642237	641096
CJ3B	638629	A 6156	649919	804381	641096
CJ5	638629	A 6156	649919	804381	641096
CJ6	638629	A 6156	649919	804381	641096
M38	649857	801053	649823	807889	641096
M38A1	805522	801053	649823	807889	641096
DJ3A	638629	912721	649919	804381	641096
463	638629	638841	641093	642237	641096
4X463	638629	638841	649922	642237	641096
473	638629	638841	641093	642237	641096
4X473	638629	638841	649922	642237	641096
475	638841	638841	649922	804381	641096
2X475	638629	638841	649922	804381	641096
4X475	638629	638841	649922	804381	641096
6-226-2X4	638841	638841	914877		711930
6-226-4X4	638841	638841	914877		711930
4WD	638629	638841	649922	642237	641096
473-4WD	638629	638841	649922	642237	641096
475-4WD	638629	638841	649922	804381	641096
6-226-4WD	638841	638841	914877		711930
FC150	638629	A 6156	649919	804381	641096
FC170	638841	912721	914877		711930
