Source: ORD 9 SNL G-503, 1949 release, Ford and Willys, ¼-ton 4×4. Marks and legends of the original catalog are preserved. The catalog also shows different versions; check the year and installed assembly before selecting a part. For CJ models, use their separate catalogs.
front axle, sleeves and related parts
MB · related parts
Find the part in the MB catalog
The number opens the correct field in the Spare Parts List. The position label is overwritten where it is reliably legible; "assembly" means the whole assembly or part without a separate letter designation. Name substitutions and differences are explained with the section.
| Pos. | Part / name in existing list | Designation from drawing / source | MB part number |
|---|---|---|---|
| J | Steering Upper Left Armfront axle, sleeves and related parts | SP-17302XSource · PDF 181 · Drawing ↑ | A1712 ↗front axle · MB |
| M | Steering Knuckle Rightfront axle, sleeves and related partsThe drawing is an overview of the backwater; PN A811 refers to the right version. | SP-17221Source · PDF 182 · Drawing ↑ | A811 ↗front axle · MB |
| T | Bearing Lockwasherfront axle, sleeves and related parts | SP-17015Source · PDF 220 · Drawing ↑ | A865 ↗wheel · MB |
| U | Bearing Retaining Nutfront axle, sleeves and related parts | SP-17016Source · PDF 219 · Drawing ↑ | A866 ↗chassis · MB |
| V | Bearing Nut Lockwasherfront axle, sleeves and related parts | SP-17017Source · PDF 220 · Drawing ↑ | A867 ↗wheel · MB |
| — | Side Gear Thrust WasherDifferential front axle | SP-16323-2Source · PDF 180 · Drawing ↑ | A 795 ↗front axle · MBA795 ↗rear axle · MB |
| — | Differential Pinion ShaftDifferential front axle | SP-16075Source · PDF 179 · Drawing ↑ | A 798 ↗front axle · MBA798 ↗rear axle · MB |
| J | Pinion Gear Thrust WasherDifferential front axle | SP-16322-2Source · PDF 180 · Drawing ↑ | A 797 ↗front axle · MBA797 ↗rear axle · MB |
| C | Differential CaseDifferential front axle | SP-16383Source · PDF 178 · Drawing ↑ | A793 ↗front axle · MBA793 ↗rear axle · MB |
| Q | Bendix Center BallFront axle joint variants | WO-A6288Source · PDF 176 · Drawing ↑ | A6288 ↗front axle · MB |
| Assembly | Front Axle Shaft Inner Oil Sealfront axle, sleeves and related partsThe number and description are confirmed in the original table. The picture shows the associated assembly; individual letter position is not reliably read. | WO-A779Source · PDF 185 · Drawing ↑ | A779 ↗front axle · MBA779 ↗rear axle · MB |
| Assembly | Front Axle Shaft Bushingfront axle, sleeves and related partsThe number and description are confirmed in the original table. The picture shows the associated assembly; individual letter position is not reliably read. | WO-A6362Source · PDF 183 · Drawing ↑ | A6362 ↗front axle · MB |
| Assembly | Steering Upper Right Armfront axle, sleeves and related partsThe number and description are confirmed in the original table. The picture shows the associated assembly; individual letter position is not reliably read.View details · PDF 171 | WO-A1710Source · PDF 181 · Drawing ↑Ford · GPW3112 | A1710 ↗front axle · MB |
| Assembly | Steering Knuckle Leftfront axle, sleeves and related partsThe number and description are confirmed in the original table. The picture shows the associated assembly; individual letter position is not reliably read. | WO-A812Source · PDF 182 · Drawing ↑ | A812 ↗front axle · MB |
| Assembly | Axle Drive Flangefront axle, sleeves and related partsThe number and description are confirmed in the original table. The picture shows the associated assembly; individual letter position is not reliably read.View details · PDF 174 | WO-A868Source · PDF 184 · Drawing ↑ | A868 ↗front axle · MBA868 ↗rear axle · MB |
| Assembly | Front Axle Housingfront axle, sleeves and related partsView details · PDF 171 | WO-A1703Source · PDF 177 · Drawing ↑Ford · GPW3074 | A1703 ↗front axle · MB |
| Assembly | Bendix Universal Joint BallFront axle joint variants0.875 inch diameter Bendix joint ball; not a number for all dimensions of balls. The number and description are confirmed in the original table. The picture shows the associated assembly; individual letter position is not reliably read. | WO-A6292Source · PDF 183 · Drawing ↑ | A6292 ↗front axle · MB |
| Assembly | Kingpinfront axle, sleeves and related partsThe number and description are confirmed in the original table. The picture shows the associated assembly; individual letter position is not reliably read.View details · PDF 174 | WO-A824Source · PDF 182 · Drawing ↑ | A824 ↗front axle · MBA824 ↗rear axle · MB |
The same PN in multiple places does not automatically validate each year, country or performance. The original data is preserved; note indicates the difference between the sources.

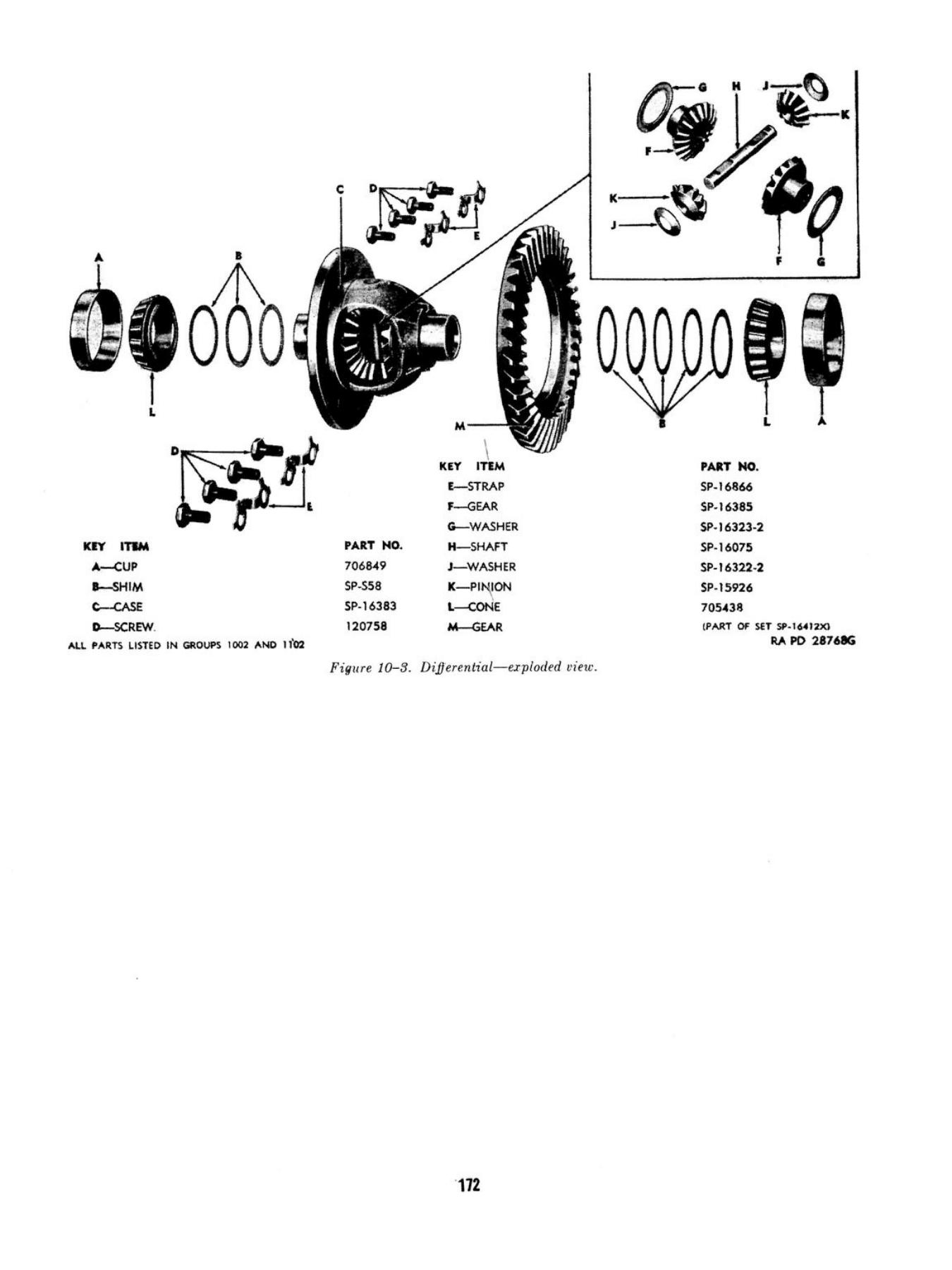

Differential front axle

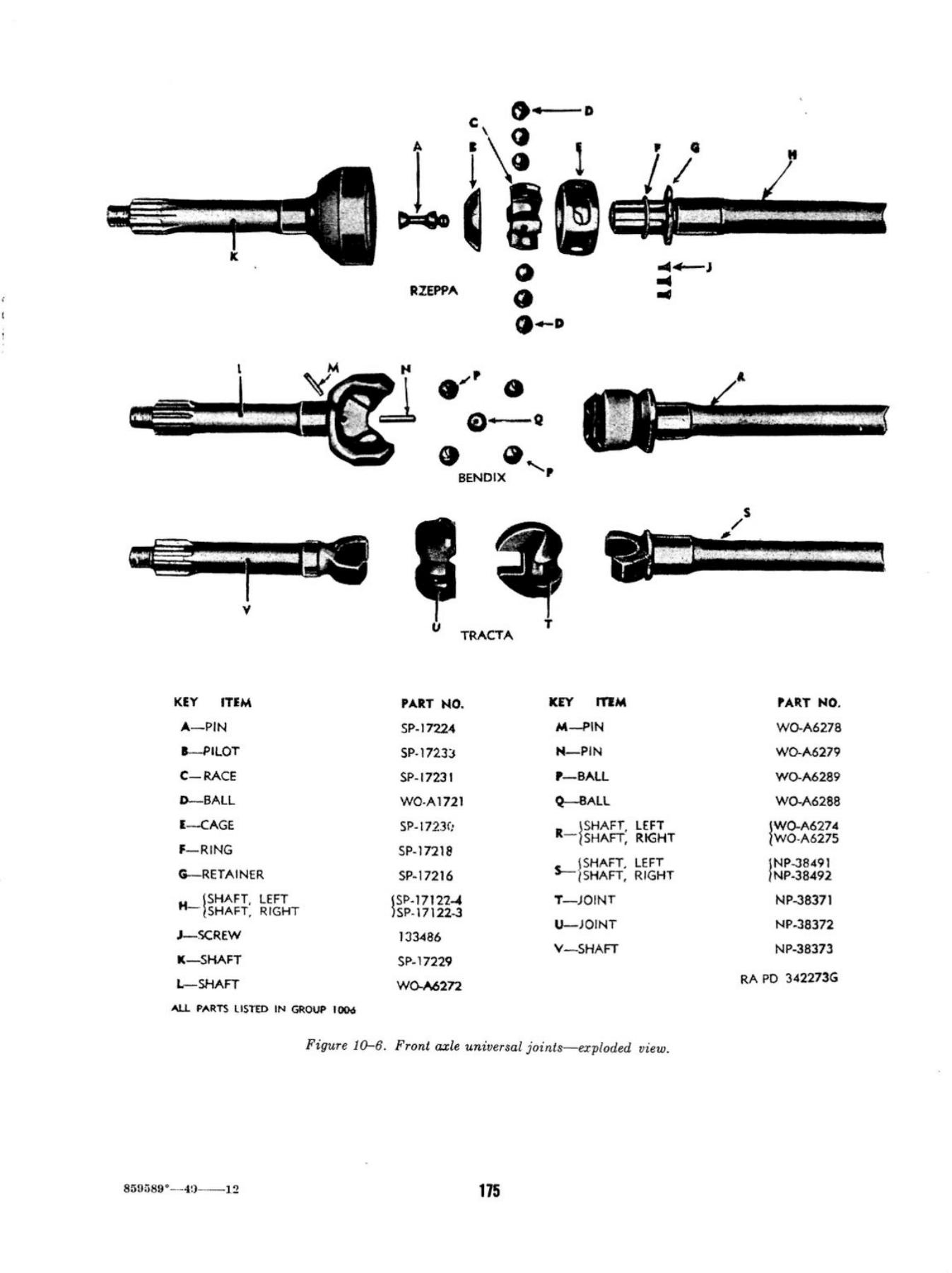

Front axle joint variants
Original catalogs and service manual
ORD 9 SNL G-503 — Full Parts Catalog (PDF)
TM 10-1513 - Service Chapter for this assembly (PDF)
Page numbers with drawings indicate pages of the PDF file; printed numbering may vary. For the chassis, body and some equipment, an overview of the assembly is shown, according to the original catalog.
Original ORD · PDF 171

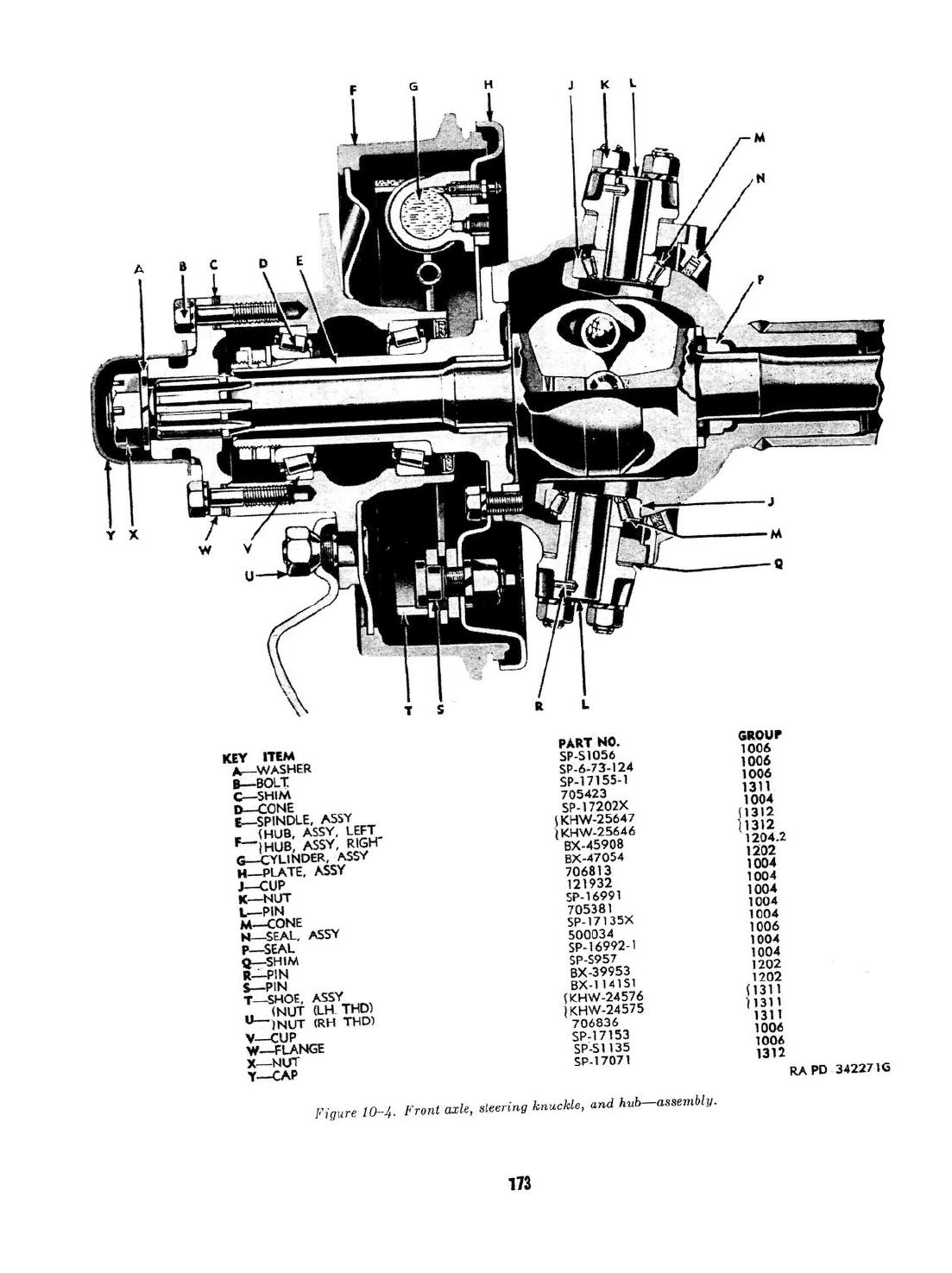

Original ORD · PDF 174
