Source: ORD 9 SNL G-503, 1949 release, Ford and Willys, ¼-ton 4×4. Marks and legends of the original catalog are preserved. The catalog also shows different versions; check the year and installed assembly before selecting a part. For CJ models, use their separate catalogs.
Rear axle — exploded view
MB · related parts
Find the part in the MB catalog
The number opens the correct field in the Spare Parts List. The position label is overwritten where it is reliably legible; "assembly" means the whole assembly or part without a separate letter designation. Name substitutions and differences are explained with the section.
| Pos. | Part / name in existing list | Designation from drawing / source | MB part number |
|---|---|---|---|
| C | Differential Caserear axle — continued and markings | SP-16383Source · PDF 178 · Drawing ↑ | A793 ↗rear axle · MBA793 ↗front axle · MB |
| AJ | Pinion Thrust Washerrear axle — continued and markings | SP-16322-2Source · PDF 180 · Drawing ↑ | A797 ↗rear axle · MBA 797 ↗front axle · MB |
| AN | Side Gear Thrust Washerrear axle — continued and markings | SP-16323-2Source · PDF 180 · Drawing ↑ | A795 ↗rear axle · MBA 795 ↗front axle · MB |
| L | Pinion Nutrear axle — continued and markingsThe same number is used in several parts of the assembly. Check the thread and the place of installation. | SP-S1135Source · PDF 170 · Drawing ↑ | 636569 ↗rear axle · MB |
| N | Universal Joint End Yokerear axle — continued and markings | SP-K2-4-108XSource · PDF 170 · Drawing ↑ | A1445 ↗front axle · MB |
| AR | Hub Bolt Right Threadrear axle — continued and markings | KHW-24568Source · PDF 219 · Drawing ↑ | A474 ↗wheel · MB |
| P | Universal Yoke Shieldrear axle — continued and markings | SP-15099Source · PDF 179 · Drawing ↑ | 636568 ↗front axle · MB |
| AS | Hub Nut Right Threadrear axle — continued and markings | KHW-24575Source · PDF 219 · Drawing ↑ | A476 ↗wheel · MB |
| S | Pinion Bearing Slingerrear axle — continued and markings | SP-13575Source · PDF 180 · Drawing ↑ | 636566 ↗front axle · MB |
| V | Differential Pinion Shaftrear axle — continued and markings | SP-16075Source · PDF 179 · Drawing ↑ | A798 ↗rear axle · MBA 798 ↗front axle · MB |
| Y | Bearing Retaining Nutrear axle — continued and markings | SP-17016Source · PDF 219 · Drawing ↑ | A866 ↗chassis · MB |
| Z | Bearing Nut Lockwasherrear axle — continued and markings | SP-17017Source · PDF 220 · Drawing ↑ | A867 ↗wheel · MB |
| BC | Axle Cover Gasketrear axle — continued and markings | SP-16409Source · PDF 177 · Drawing ↑ | A782 ↗rear axle · MBA782 ↗front axle · MB |
| AA | Bearing Lockwasherrear axle — continued and markings | SP-17015Source · PDF 220 · Drawing ↑ | A865 ↗wheel · MB |
| — | Left rear axleRear axle hub and half-shaftFixed number swapping in earlier MB table. The original ORD confirms the number and description; the previous entry remains listed in the catalog. | SP-17144—4Source · PDF 195 · Drawing ↑ | A902 ↗ |
| K | Brake Anchor PinRear axle hub and half-shaft | BX-39953Source · PDF 210 · Drawing ↑ | 637899 ↗brake system · MB |
| N | Brake Anchor Pin CamRear axle hub and half-shaft | BX-41876Source · PDF 209 · Drawing ↑ | 637900 ↗brake system · MB |
| K | Bearing Nut LockwasherRear axle hub and half-shaft | SP 17017Source · PDF 220 · Drawing ↑ | A867 ↗wheel · MB |
| Assembly | Right rear axleRear axle hub and half-shaftFixed number swapping in earlier MB table. The original ORD confirms the number and description; the previous entry remains listed in the catalog. | WO-A901Source · PDF 195 · Drawing ↑Ford · GPW4234 | A901 ↗ |
| Assembly | Rear Axle AssemblyRear axle — exploded view | WO-A5500Source · PDF 192 · Drawing ↑ | A5500 ↗rear axle · MB |
| Assembly | Rear Axle HousingRear axle — exploded view | WG-A888Source · PDF 192 · Drawing ↑Ford · GPW4004 | A888 ↗rear axle · MB |
The same PN in multiple places does not automatically validate each year, country or performance. The original data is preserved; note indicates the difference between the sources.

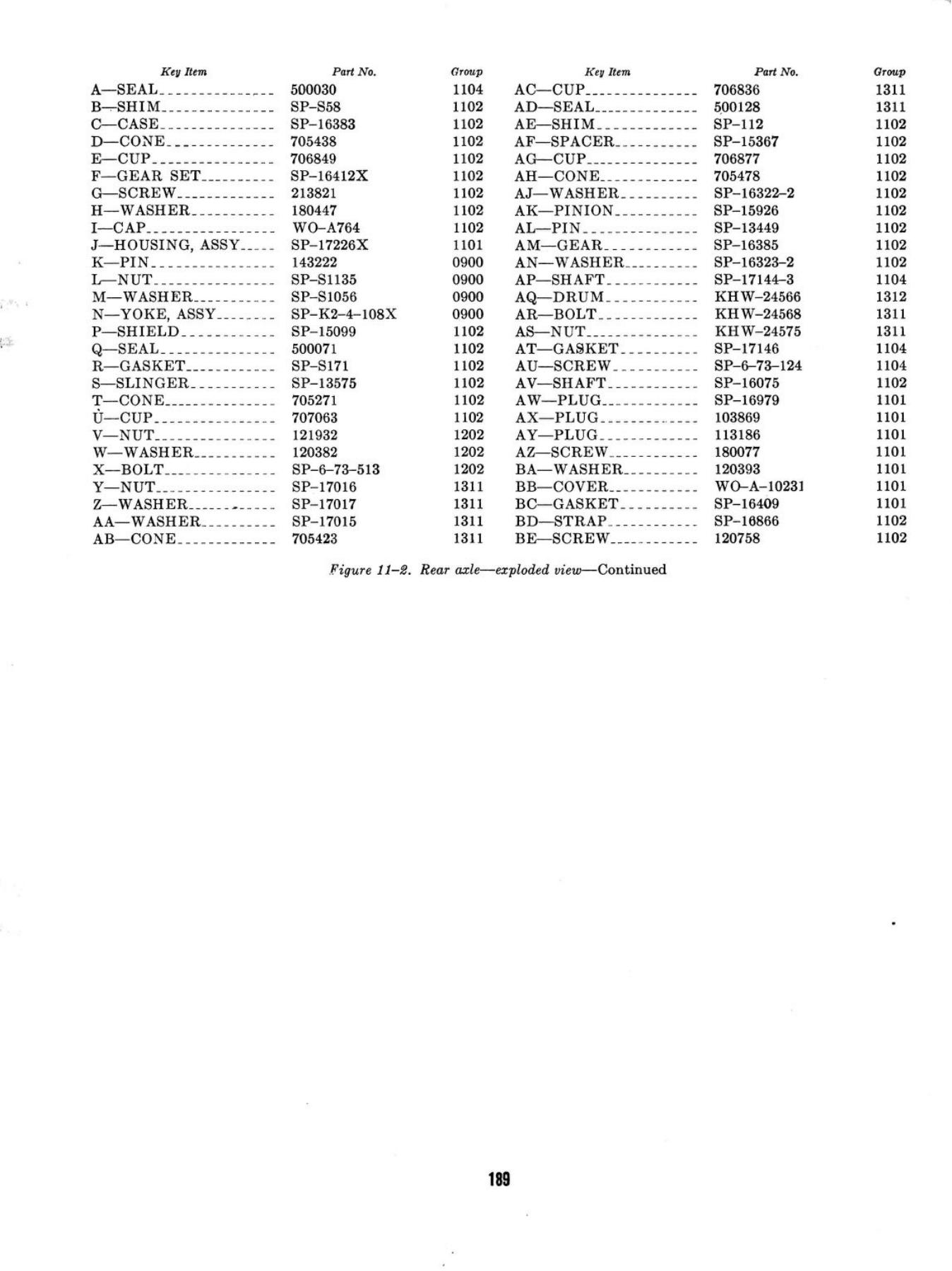

rear axle — continued and markings
Rear axle hub and half-shaft
Original catalogs and service manual
ORD 9 SNL G-503 — Full Parts Catalog (PDF)
TM 10-1513 - Service Chapter for this assembly (PDF)
Page numbers with drawings indicate pages of the PDF file; printed numbering may vary. For the chassis, body and some equipment, an overview of the assembly is shown, according to the original catalog.
Original ORD · PDF 173
Original ORD · PDF 167
Original ORD · PDF 175
Original ORD · PDF 198
